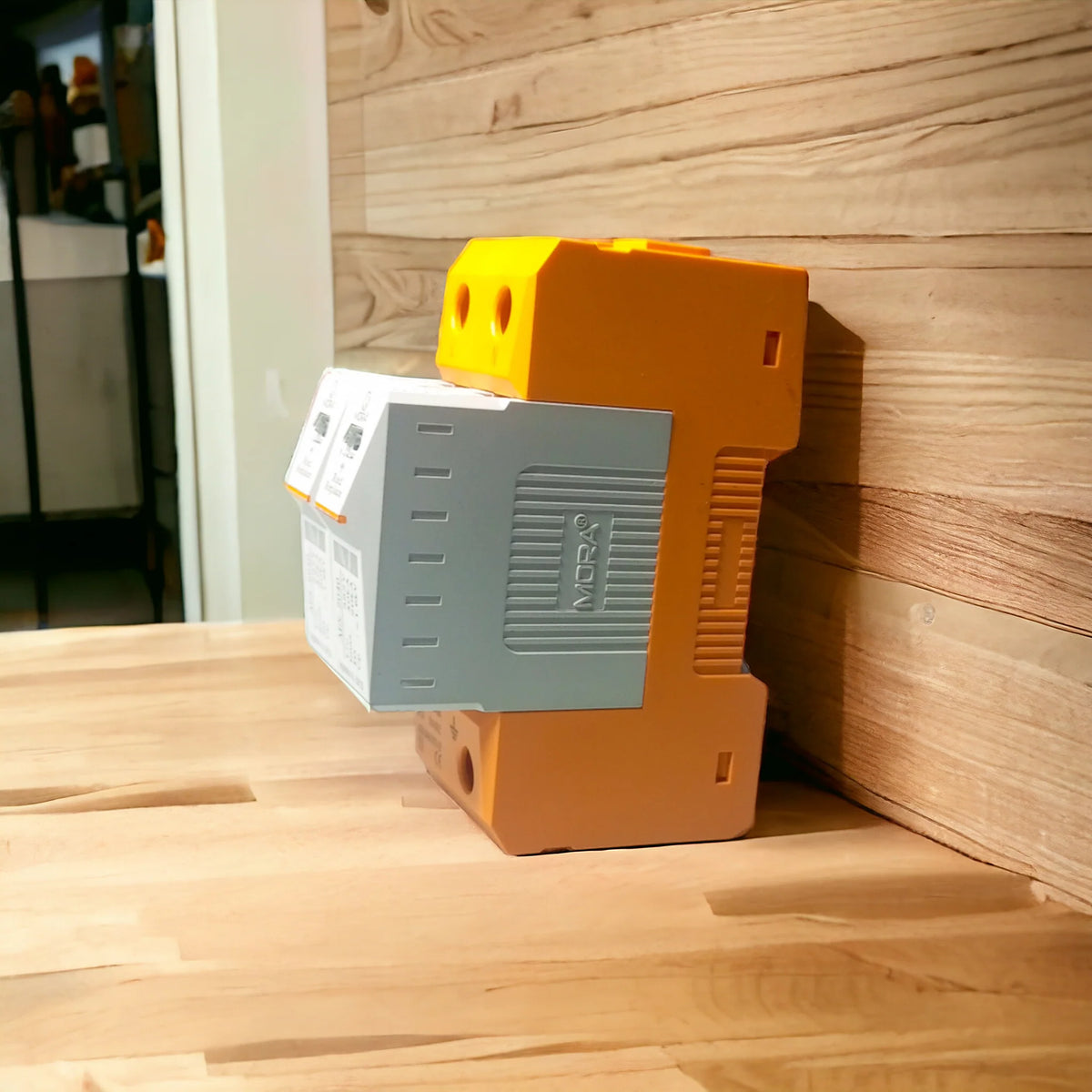

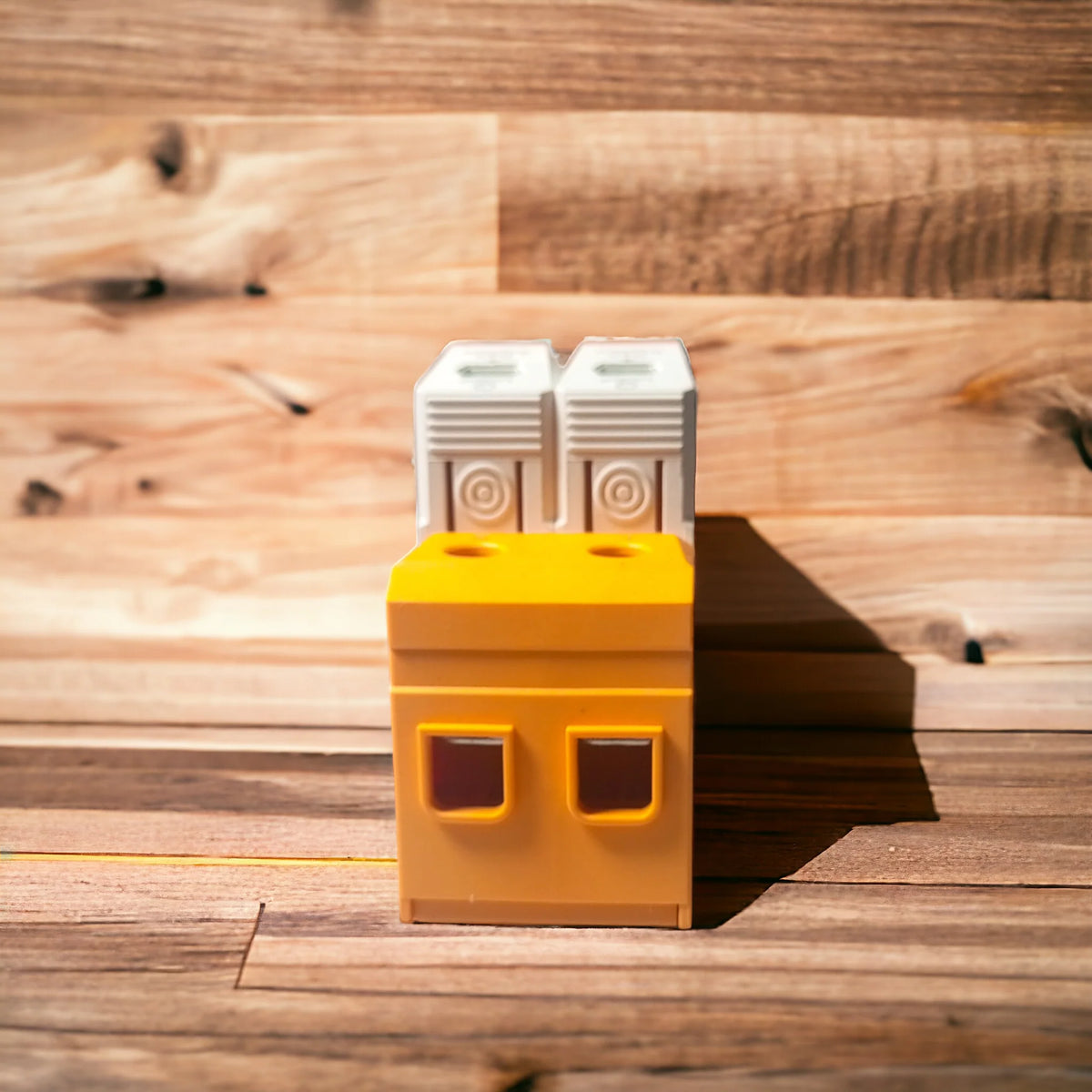

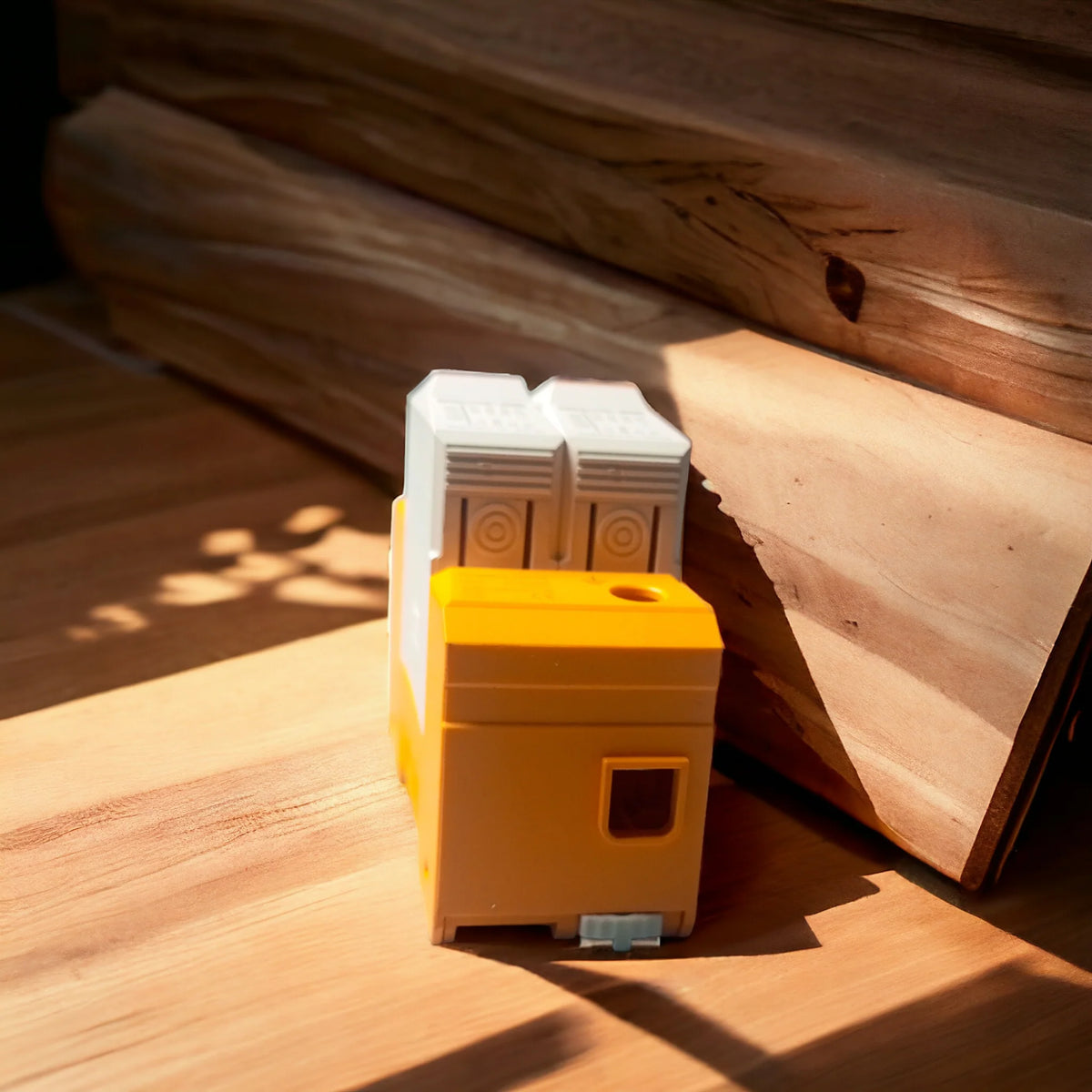

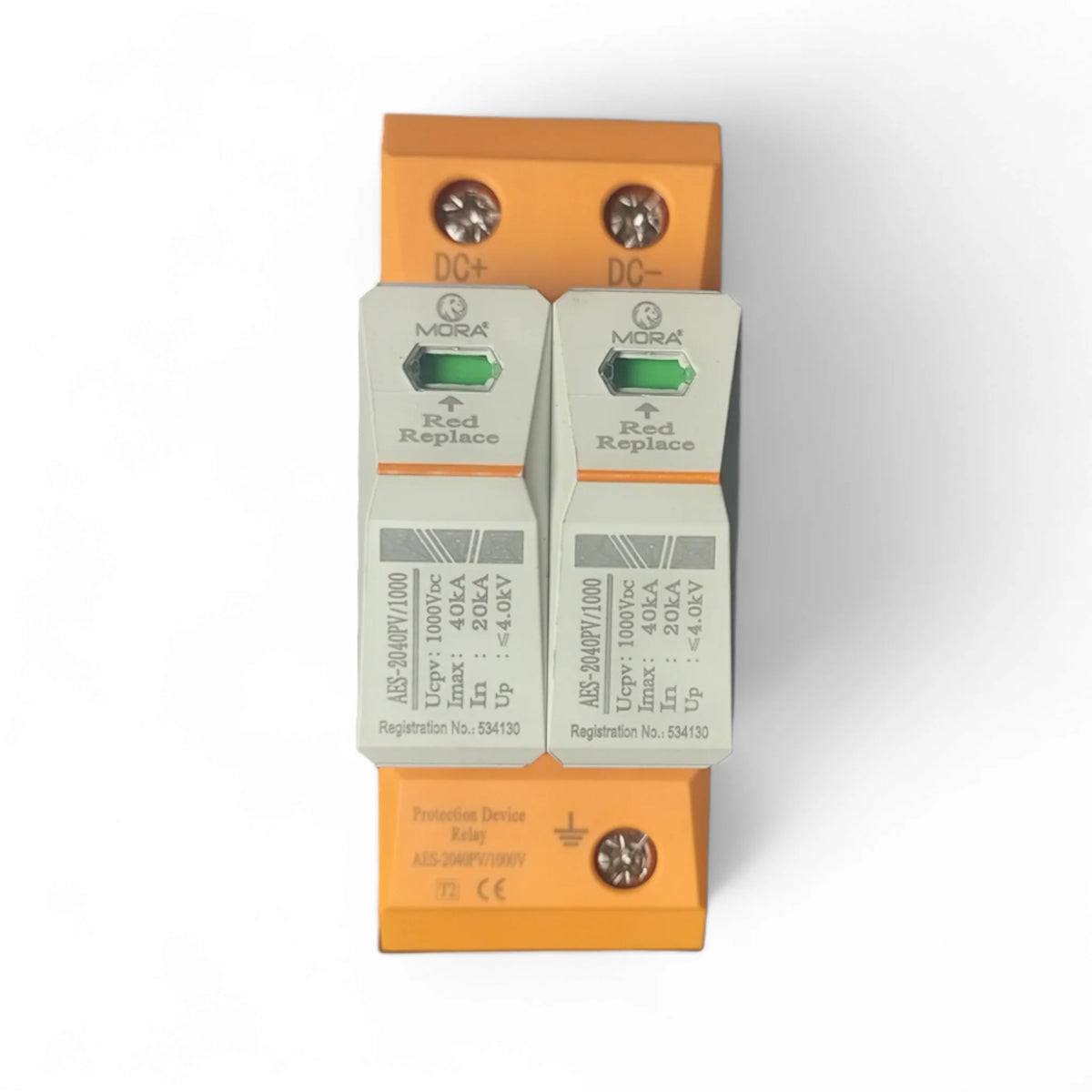

Mora AES-2040PV/1000 DC 2-Pole 40kA Surge Protection Device in Pakistan

The Mora AES-2040PV/1000 DC 2-Pole 40kA Surge Protection Device is designed to help protect DC electrical systems from transient voltage surges. It has a 2-pole configuration and a maximum discharge current of 40kA, making it suitable for DC and solar PV protection applications. Published specifications for this model list a nominal discharge current of 20kA, response time below 25 ns, and installation on a standard 35 mm DIN rail. The listed operating environment is -40°C to 85°C.

Features

• 2-pole DC surge protection design.
• Maximum discharge current of 40kA.
• Nominal discharge current of 20kA.
• Fast response time below 25 ns.
• Designed for DC electrical systems.
• Suitable for solar PV protection applications.
• Compact design for electrical distribution panels.
• Supports DIN rail installation.
• Suitable for a wide operating temperature range.
• Helps protect connected equipment from transient surges.

Specifications

• Product Type: DC Surge Protection Device (SPD)
• Model: AES-2040PV/1000
• Number of Poles: 2 Pole
• Maximum Discharge Current (Imax): 40kA
• Nominal Discharge Current (In): 20kA
• Related Operating Voltage (Un): 340V DC
• Maximum Continuous Operating Voltage (Uc): 415V DC
• Response Time: <25 ns
• Installation: 35 mm DIN Rail
• Operating Temperature: -40°C to 85°C

Uses

• Used for DC electrical surge protection.
• Suitable for solar PV and photovoltaic systems.
• Used in DC distribution and protection panels.
• Suitable for electrical equipment requiring transient surge protection.
• Used in commercial and industrial DC installations.

Package includes:

1x Mora AES-2040PV/1000 DC 2-Pole 40kA Surge Protection Device
