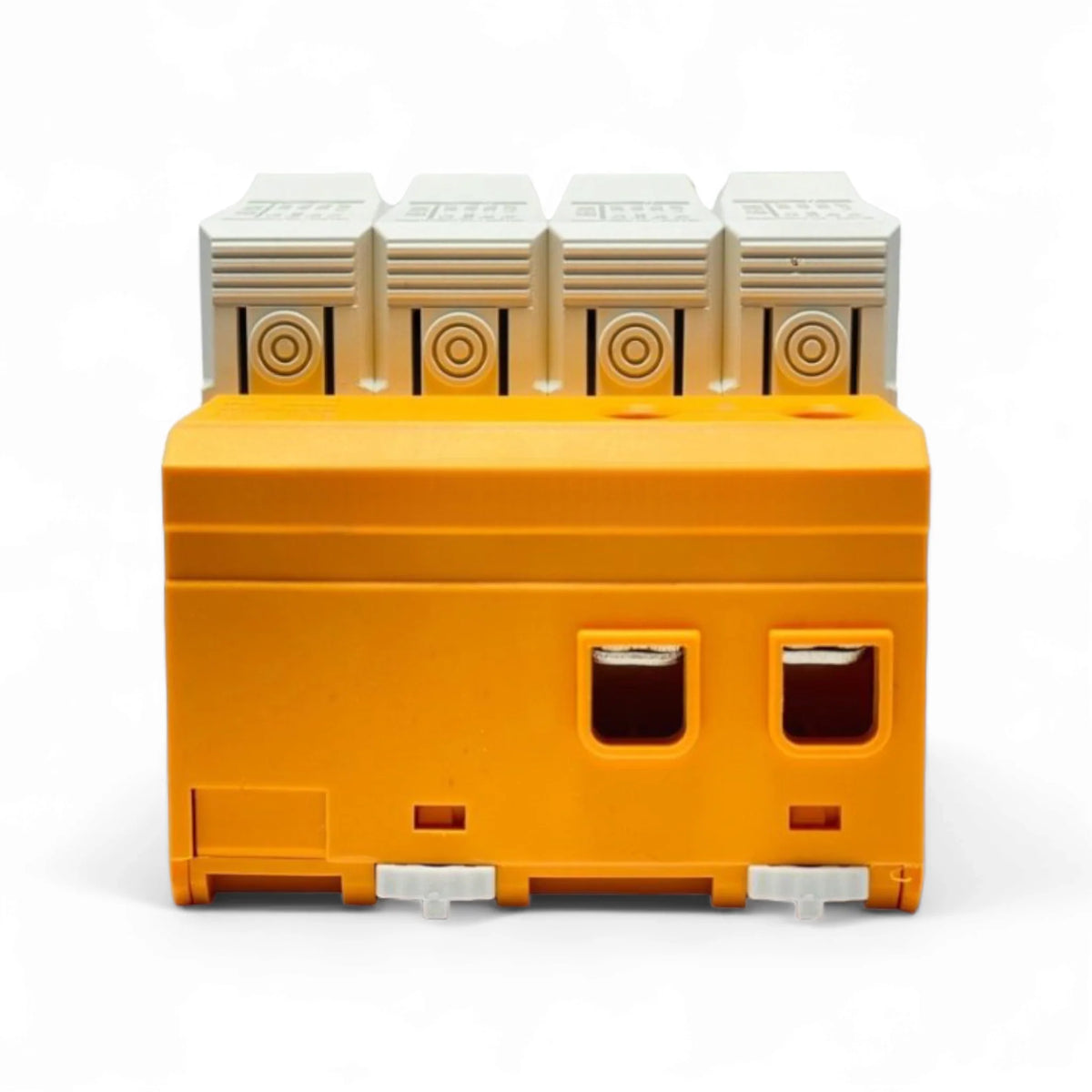

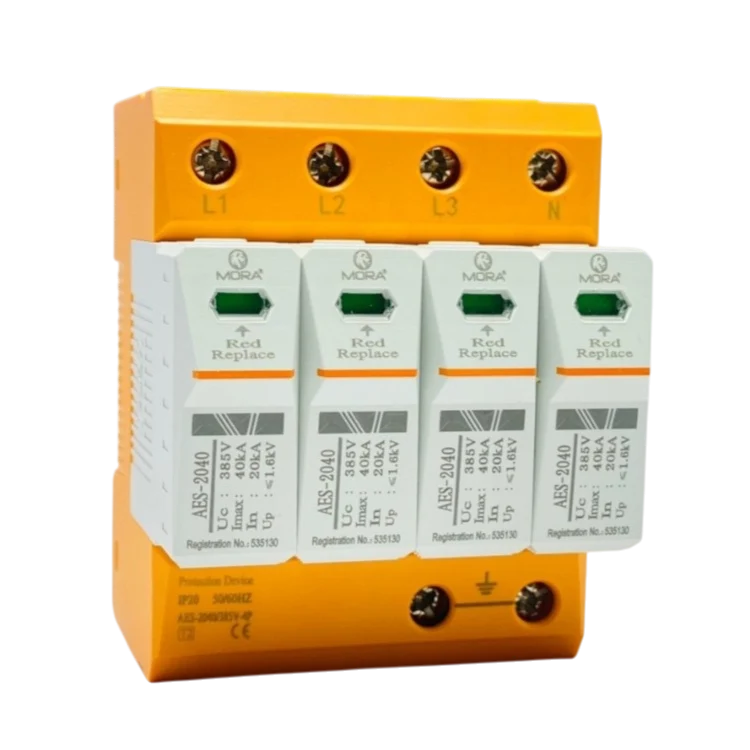

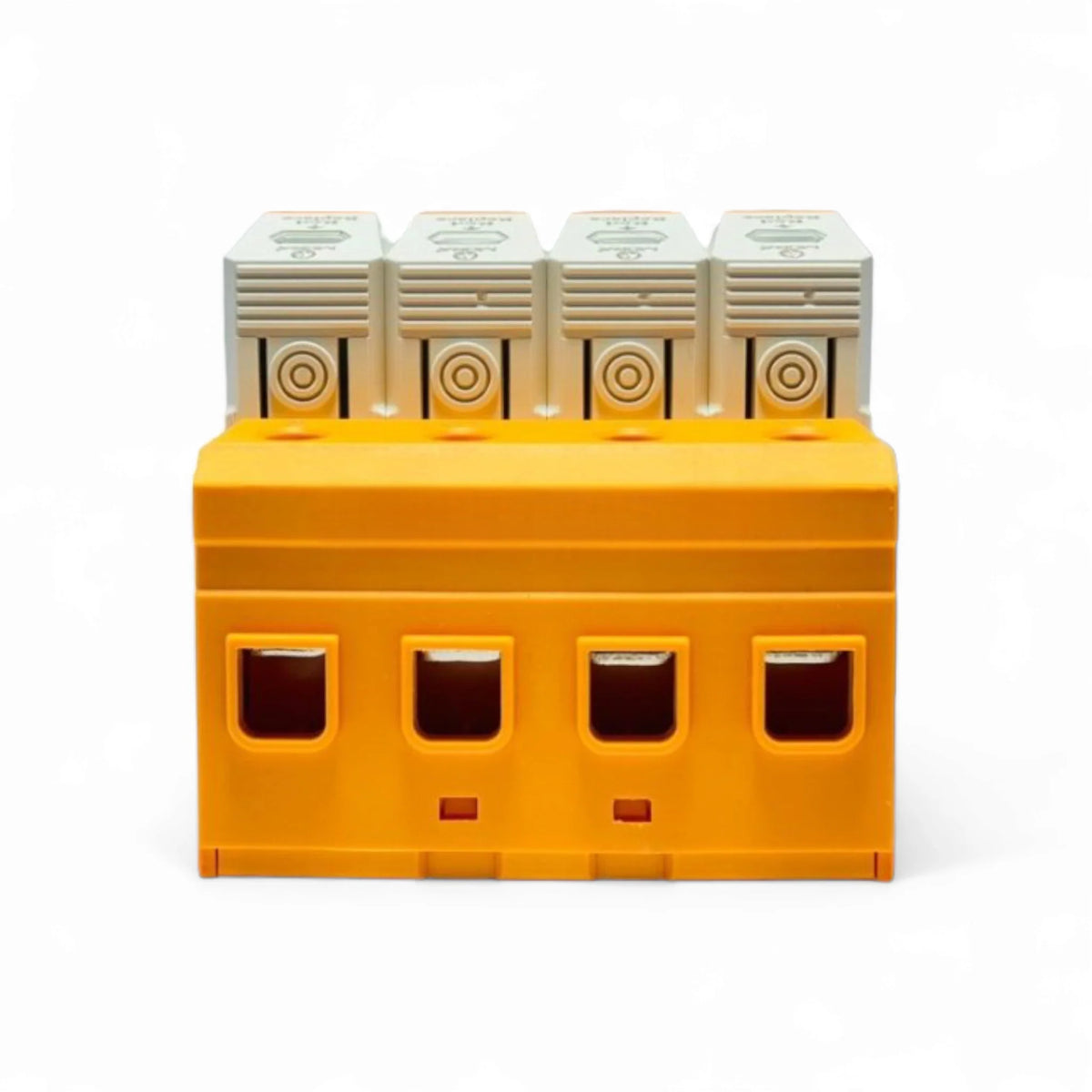

Mora AES-2040 4-Pole 385V AC Surge Protection Device in Pakistan

The Mora AES-2040 4-Pole 385V AC Surge Protection Device (SPD) is designed to help protect compatible AC electrical systems from transient voltage surges. It uses a 4-pole configuration and is suitable for electrical distribution and protection applications. With a 40kA maximum discharge current, it can help divert high-energy transient surges away from connected equipment. The device has a fast response time and is designed for convenient installation in electrical distribution panels. It is suitable for commercial, industrial, and other AC electrical installations where surge protection is required.

Features

• 4-pole configuration for AC electrical systems.
• Designed for 385V AC applications.
• Maximum discharge current up to 40kA.
• Nominal discharge current of 20kA.
• Fast response to transient voltage surges.
• Helps protect connected electrical equipment.
• Suitable for distribution and control panels.
• Designed for DIN-rail installation.
• Compact design for electrical panel mounting.
• Suitable for commercial and industrial applications.

Specifications

• Product Type: AC Surge Protection Device (SPD)
• Model: Mora AES-2040
• Number of Poles: 4 Pole
• Rated Voltage: 385V AC
• Maximum Discharge Current (Imax): 40kA
• Nominal Discharge Current (In): 20kA
• Maximum Continuous Operating Voltage (Uc): 415V AC
• Response Time: <25 ns
• Mounting: 35 mm DIN Rail
• Operating Temperature: -40°C to 85°C

Uses

• Used for AC electrical surge protection.
• Suitable for distribution and control panels.
• Used to protect electrical equipment from transient surges.
• Suitable for commercial and industrial installations.
• Used in compatible power distribution systems.

Package includes:

1x  Mora AES-2040 4-Pole 385V AC Surge Protection Device
