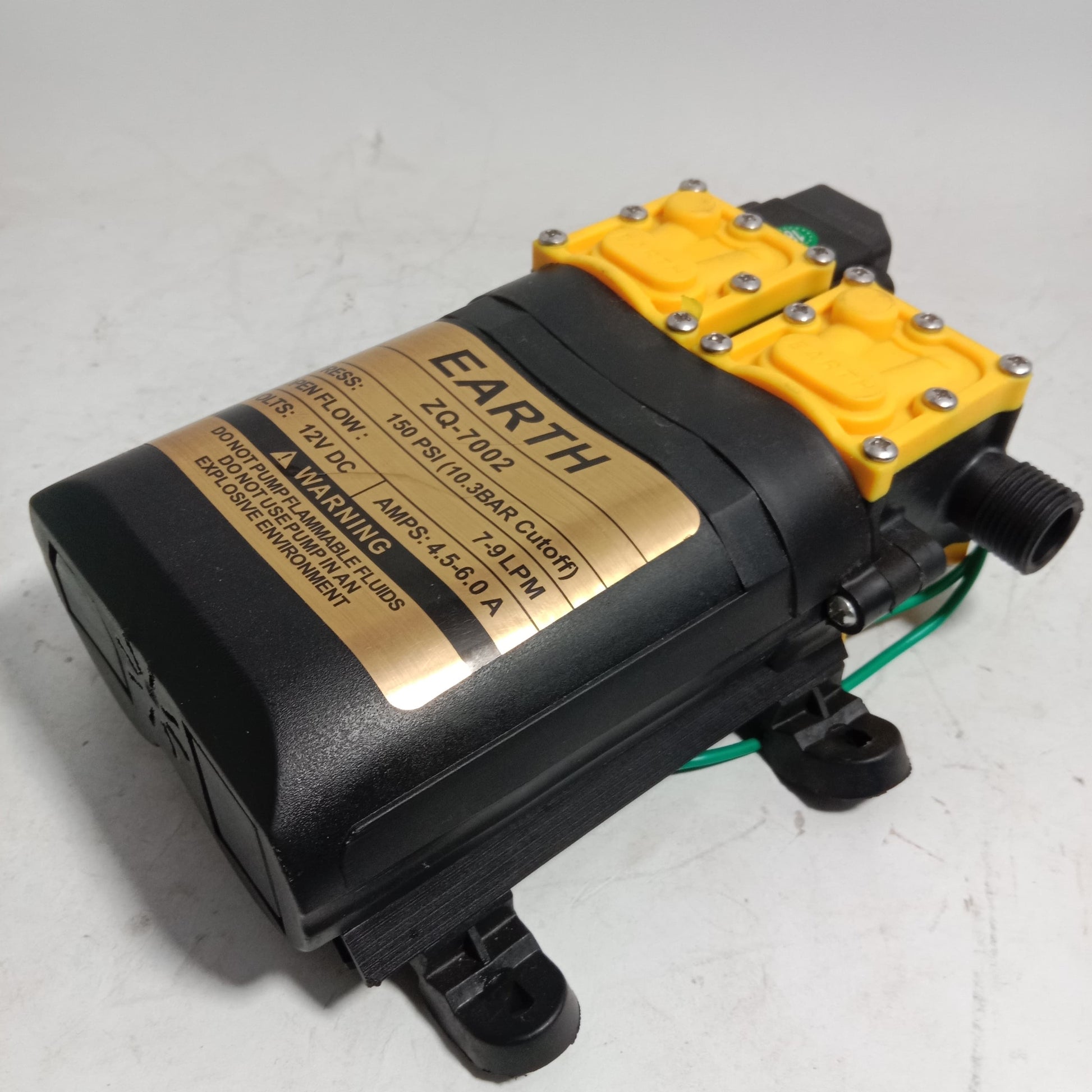

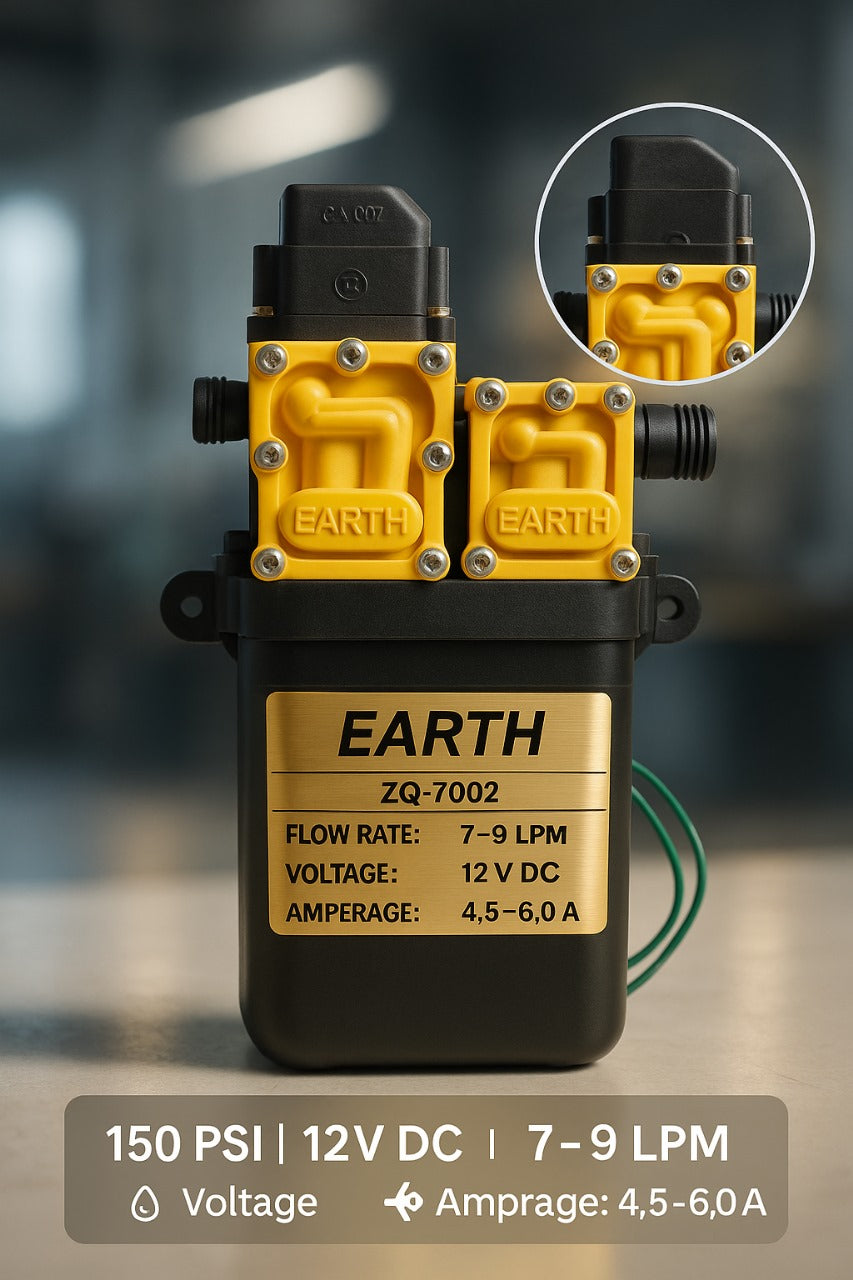

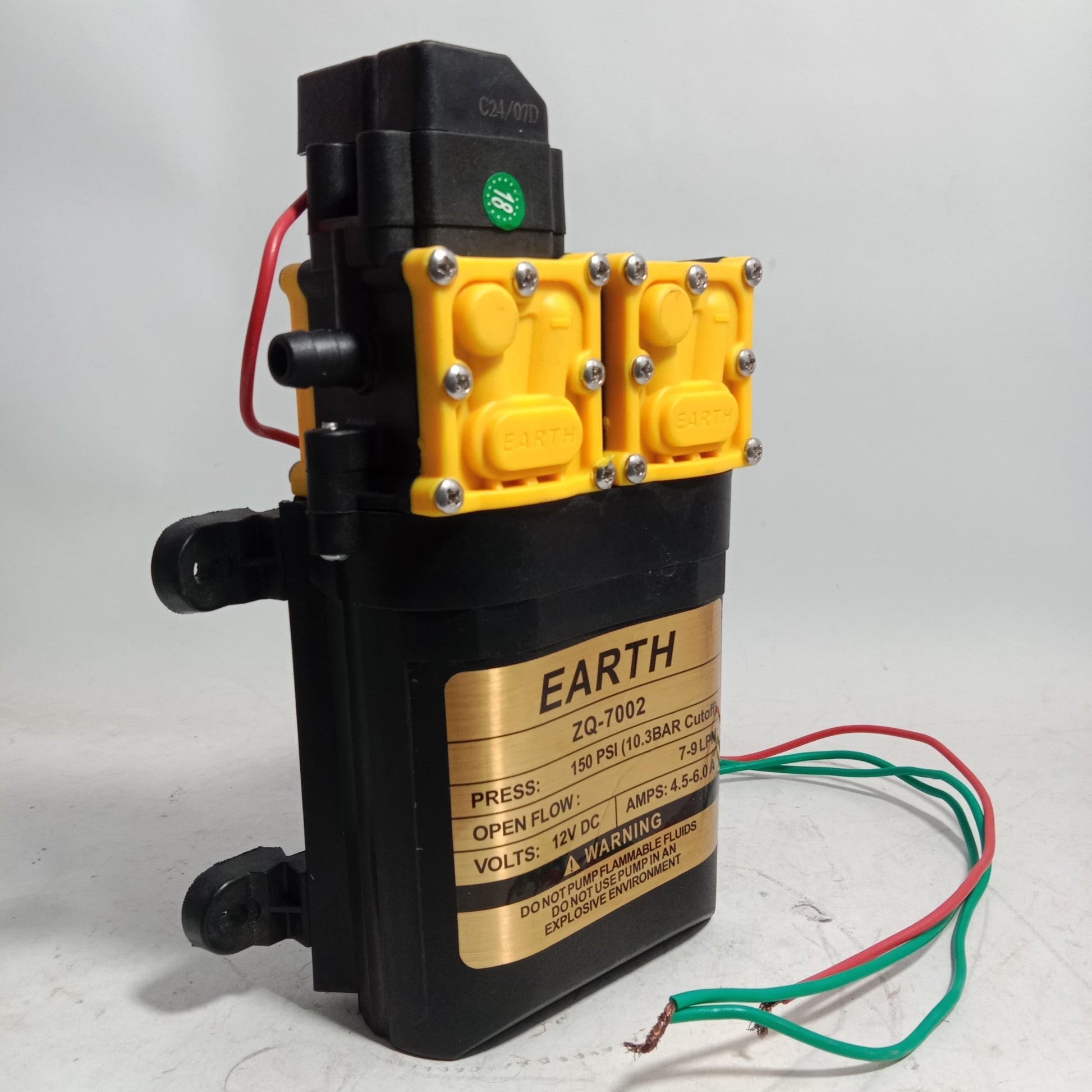

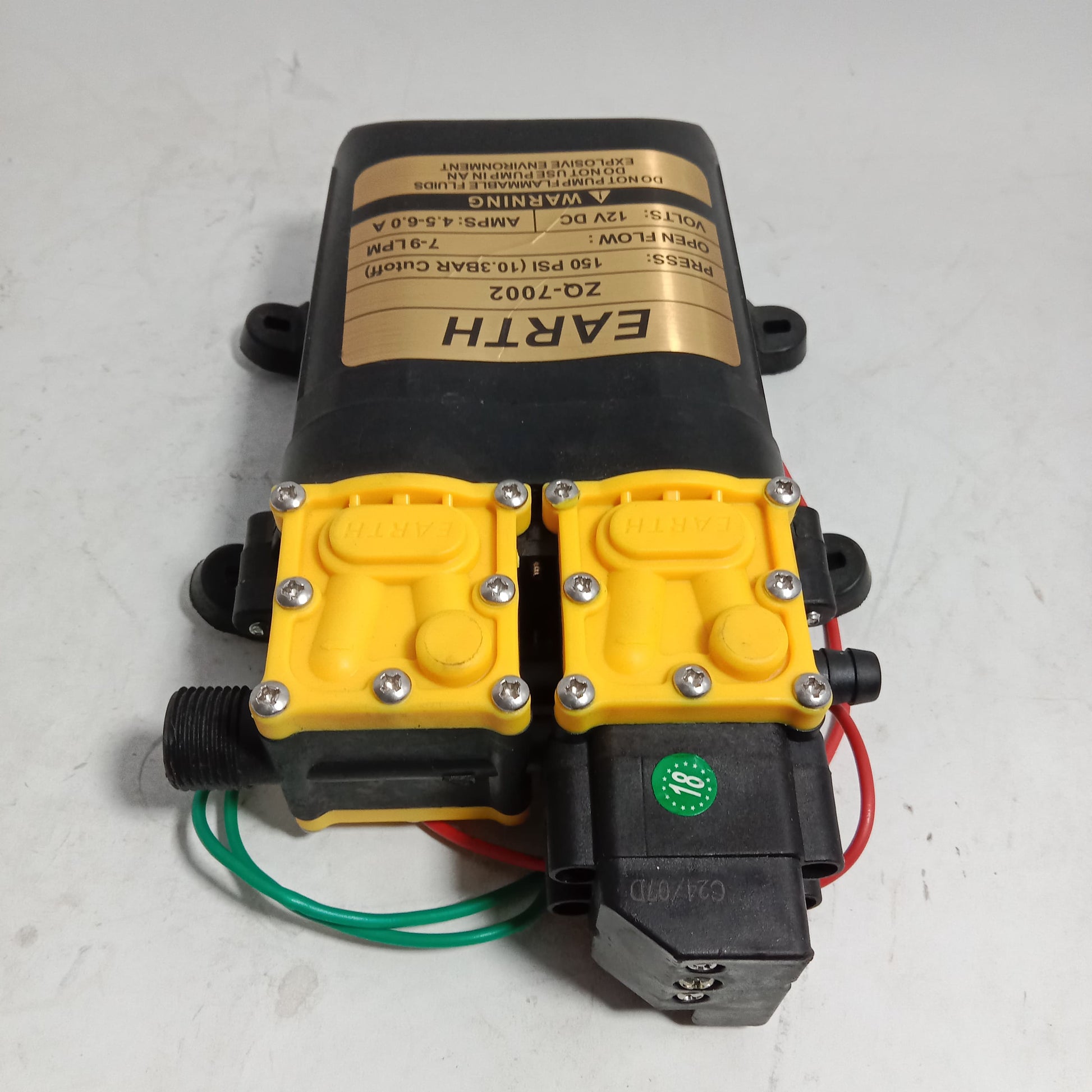

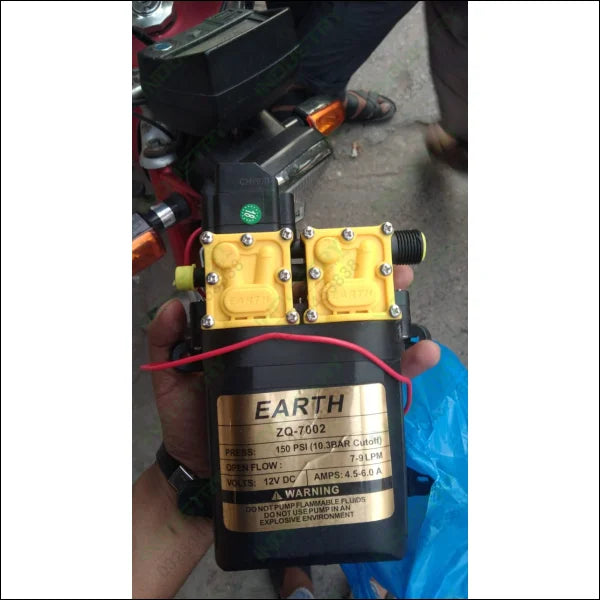

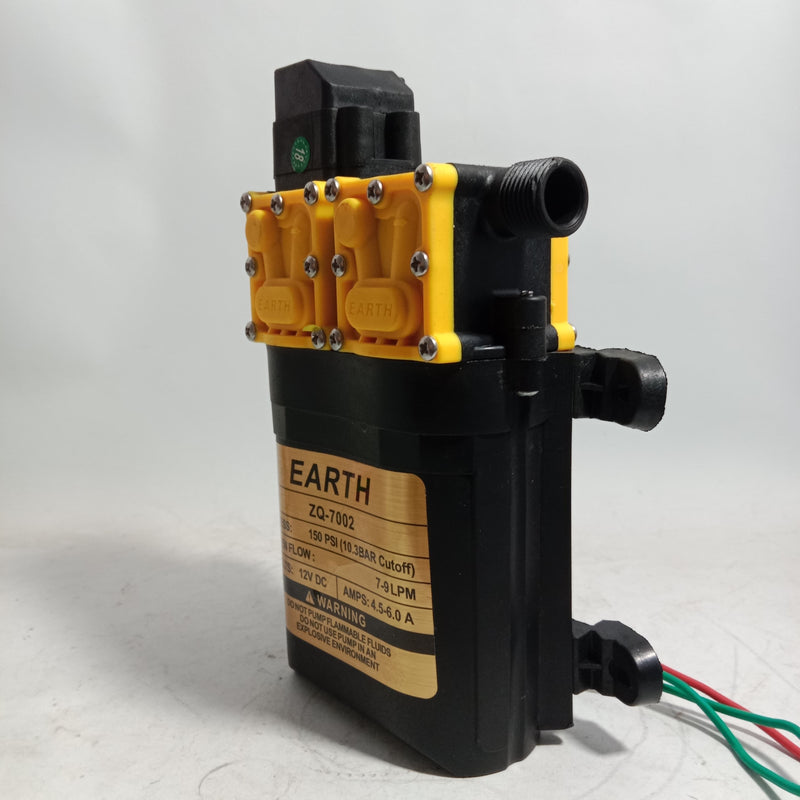

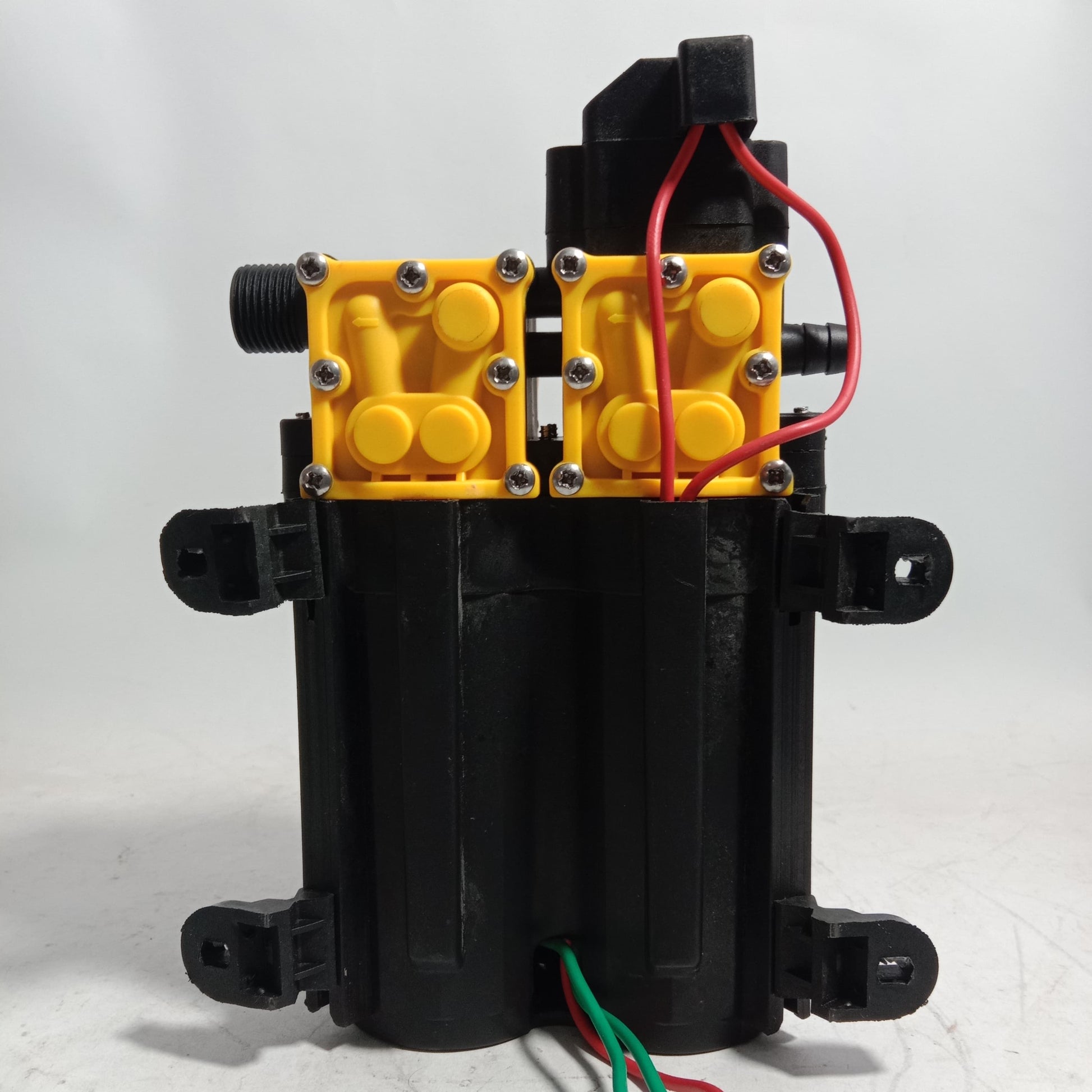

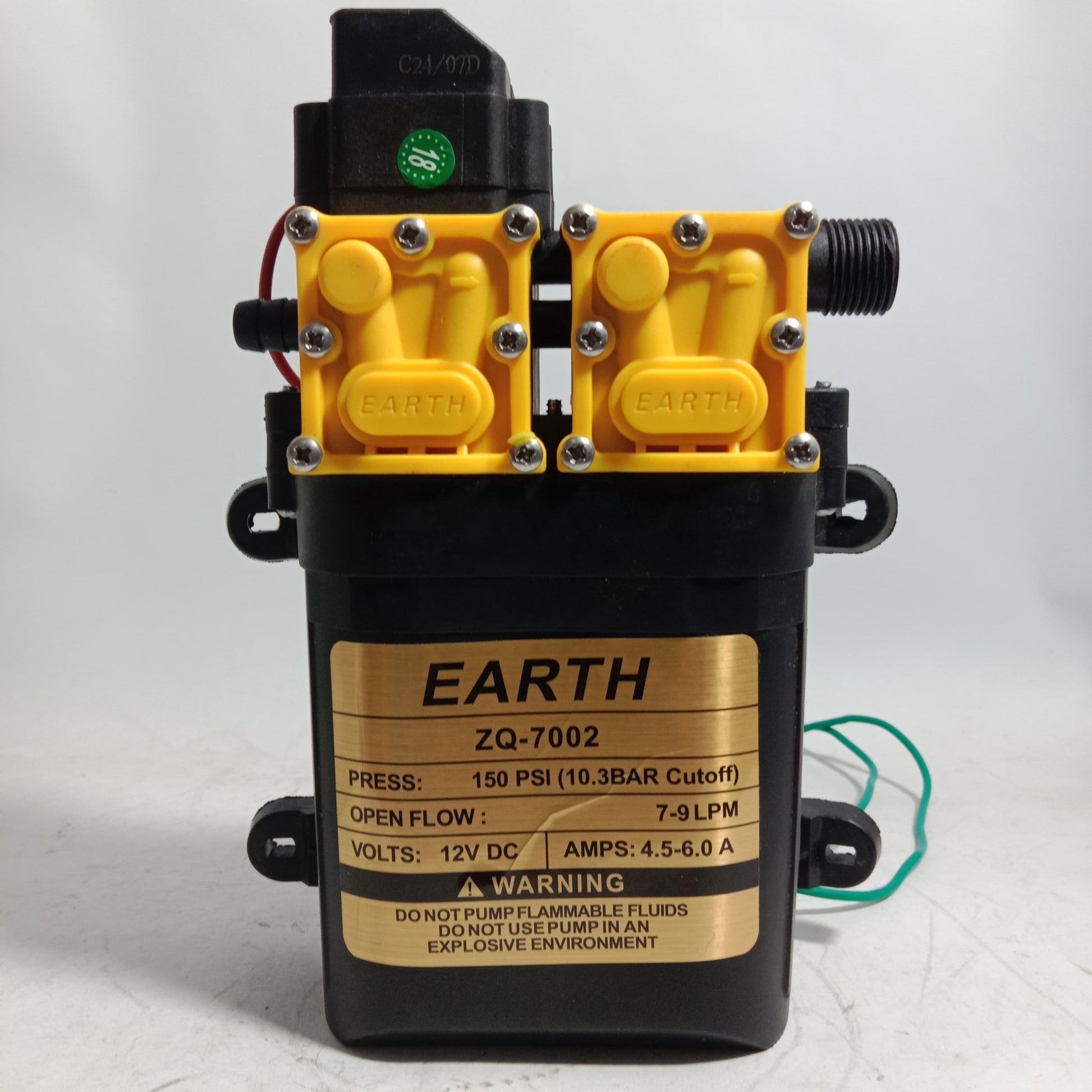

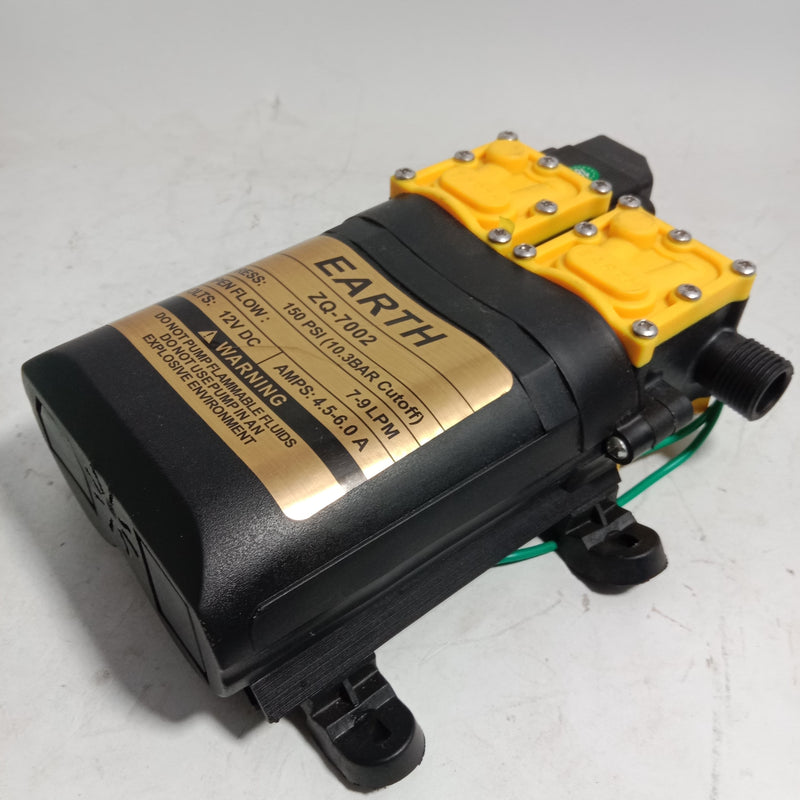

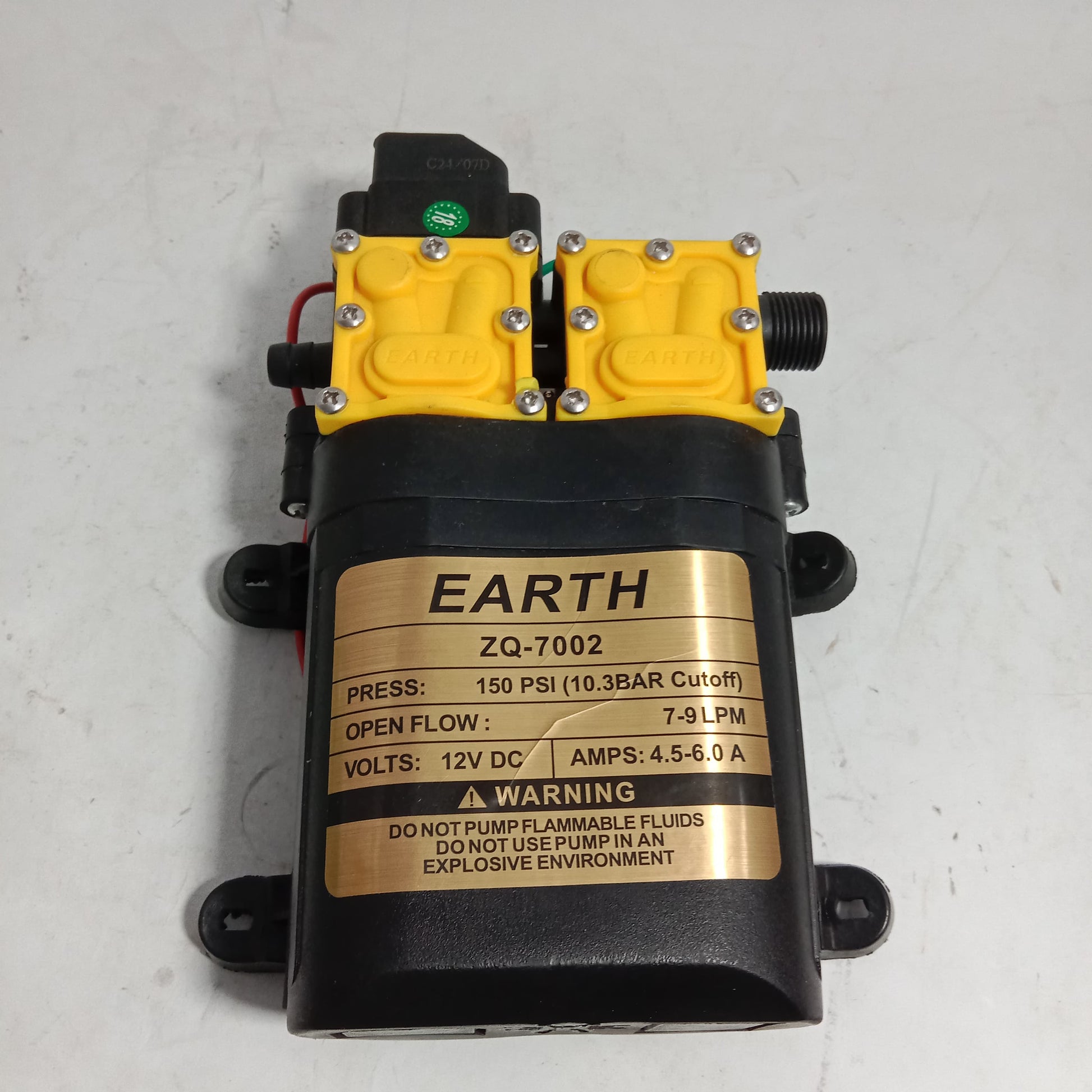

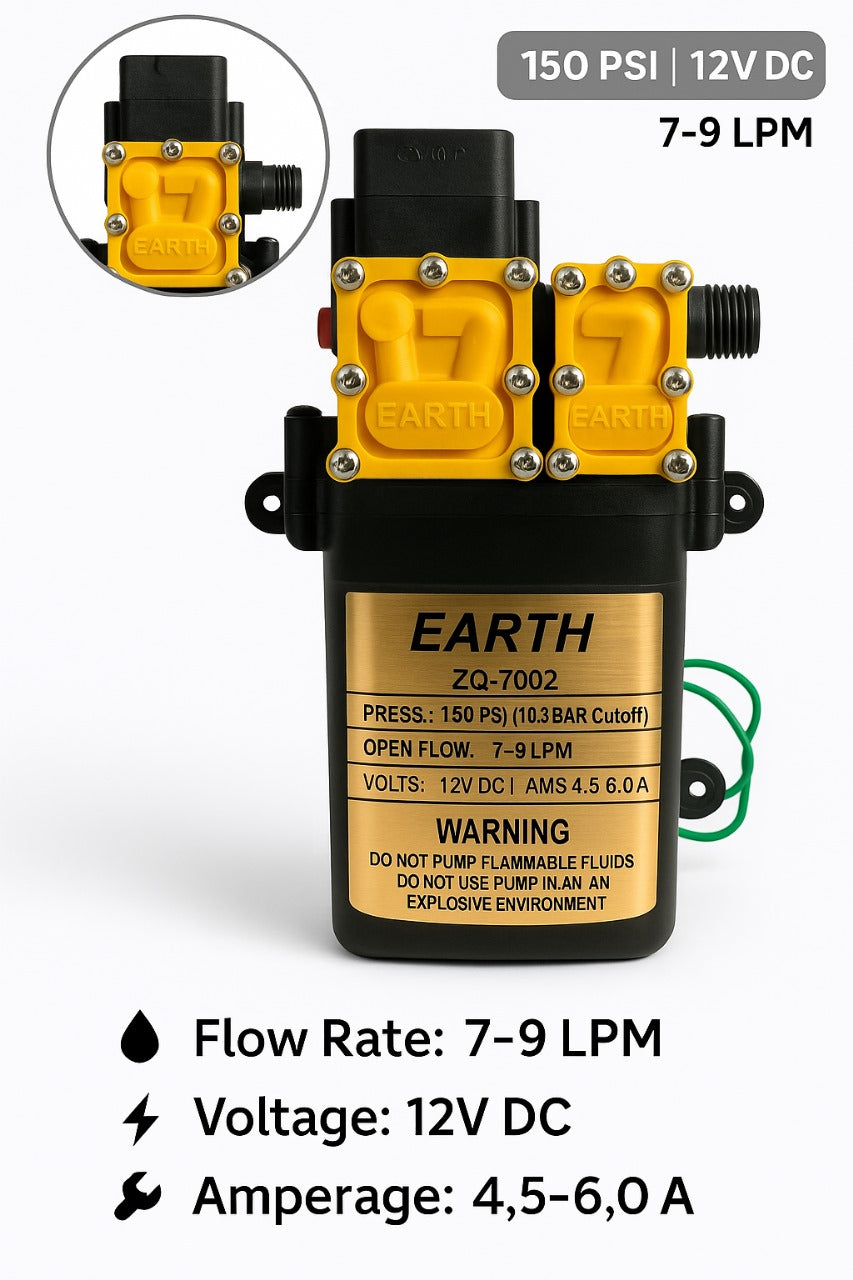

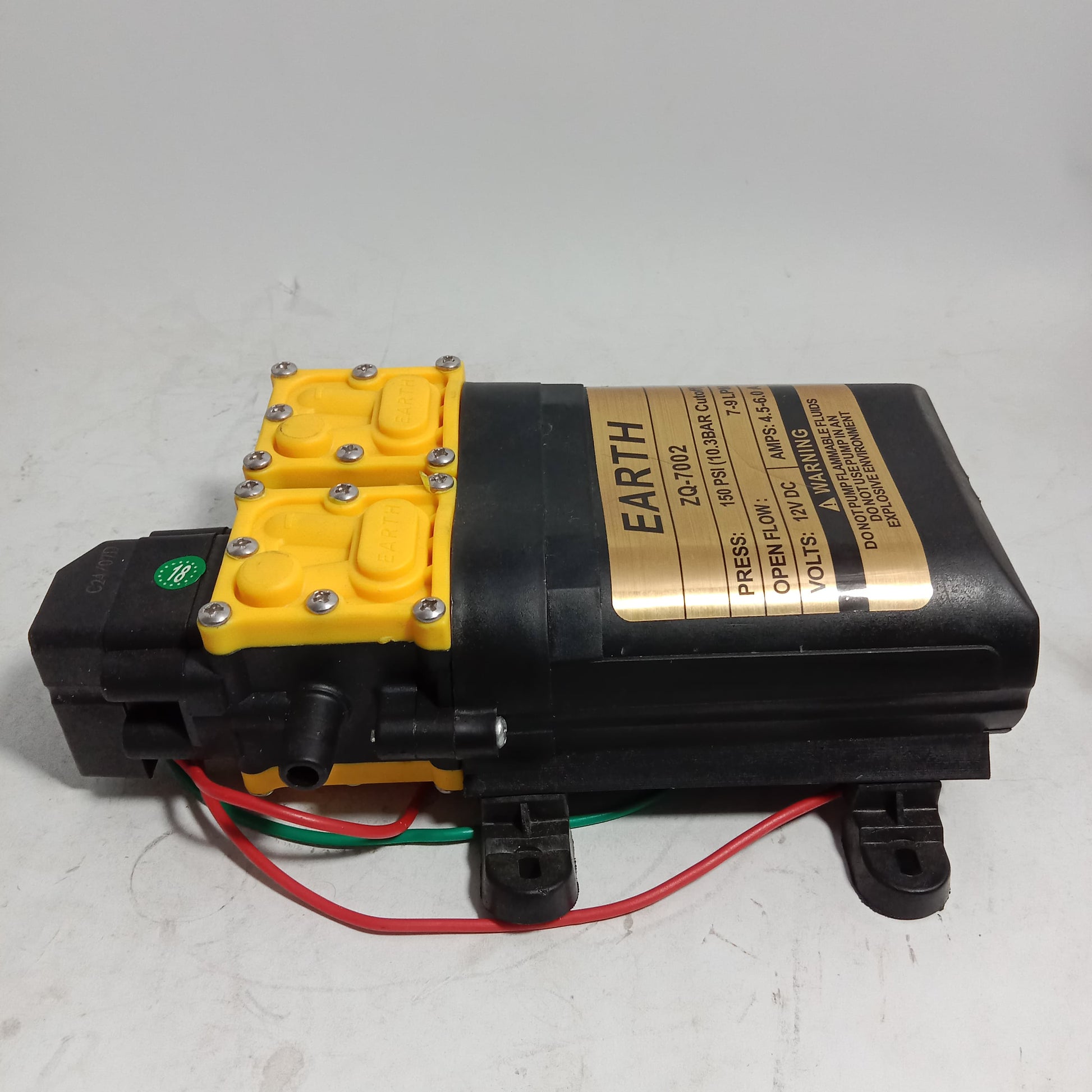

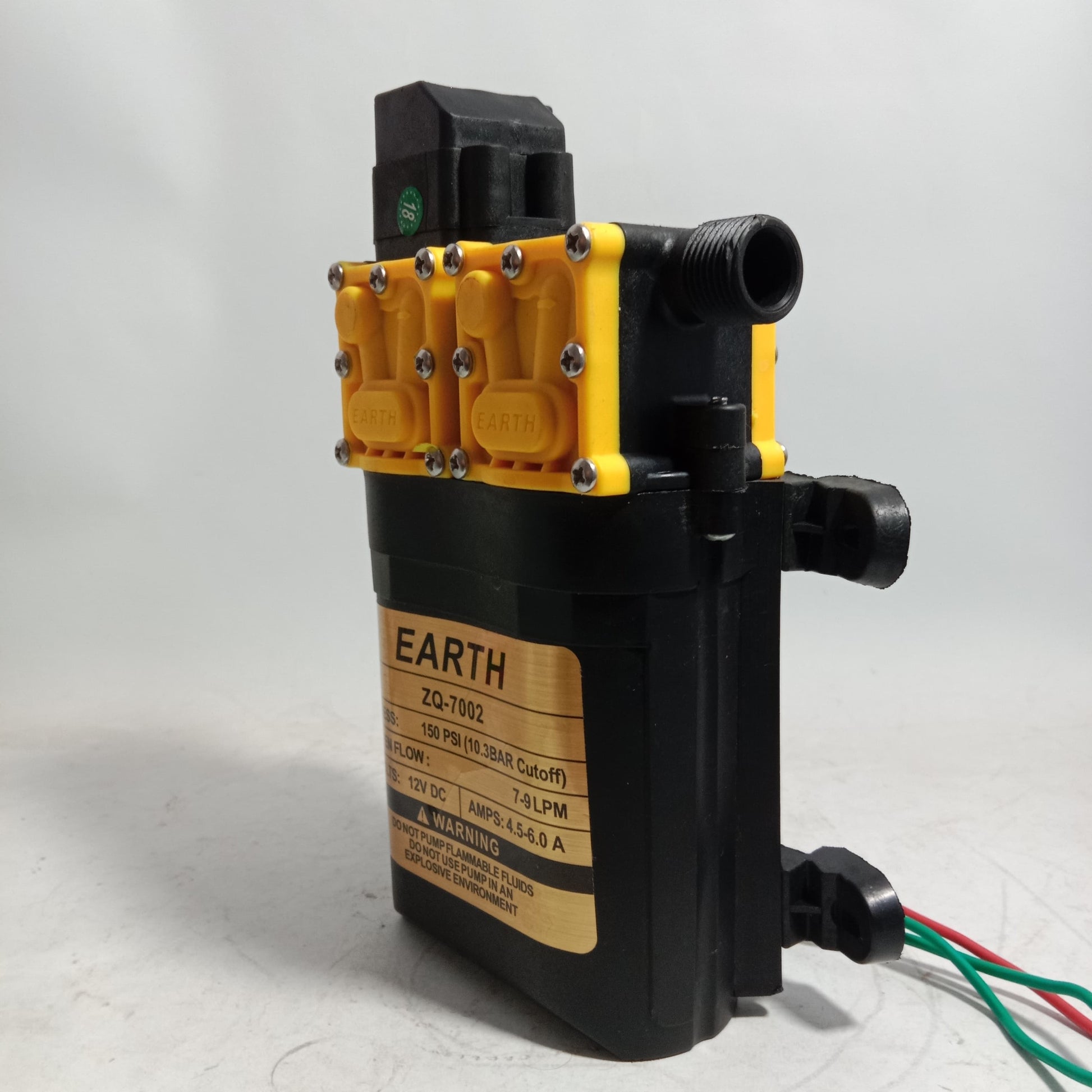

The Earth ZQ-7002 12 VDC Double-Core Battery Sprayer Motor 2in1 High-Pressure Washing Dual Diaphragm Water Pump (0.08 hp) is a compact, high-pressure water pump designed for various applications such as agricultural spraying, car washing, and garden irrigation. Below is a detailed overview based on available information:
Features:
- High-pressure output up to 150 PSI
- Compact and portable design
- Operates on 12V DC power supply
- Strong motor for efficient performance
- Durable build for long service life
Specifications:
- Voltage: 12V DC
- Power: 100W (0.08 hp)
- Motor Type: Double-core, dual diaphragm
- Flow Rate: 7–9 L/min (varies slightly by source, with some listing 4.5–8 L/min)
- Maximum Pressure: 150 PSI (10.3 Bar)
- Working Current: 4–6.5A
- Housing Material: Tough ABS
- Winding Material: Copper
- Power Source: Battery or 12V DC adapter (3A)
- Inlet: 10mm hose
- Outlet: 18mm screw (some sources mention 8–8.5mm pipes)
- Self-Priming: Up to 1m
- Heat Resistance: 0°C to 60°C
- Dimensions: Approximately 19cm (L) x 14cm (B) x 5cm (H)
- Weight: ~1.11 kg (some sources list ~590g)
-
Additional Features:
- In-built thermal overload protector
- Auto ON/OFF switch (stops when water flow is closed, starts when opened)
- Overheat protection for continuous operation
- Option to use single or dual motor (via wiring: one red positive wire,
Uses:
- Inflating car and motorcycle tires
- Used for portable pumping needs
- Suitable for emergency roadside use
- Automotive and outdoor applications
- General high-pressure air pumping task
Package includes:
- 1x EARTH ZQ-7002 150PSI/12VDC High-pressure mist Pump
