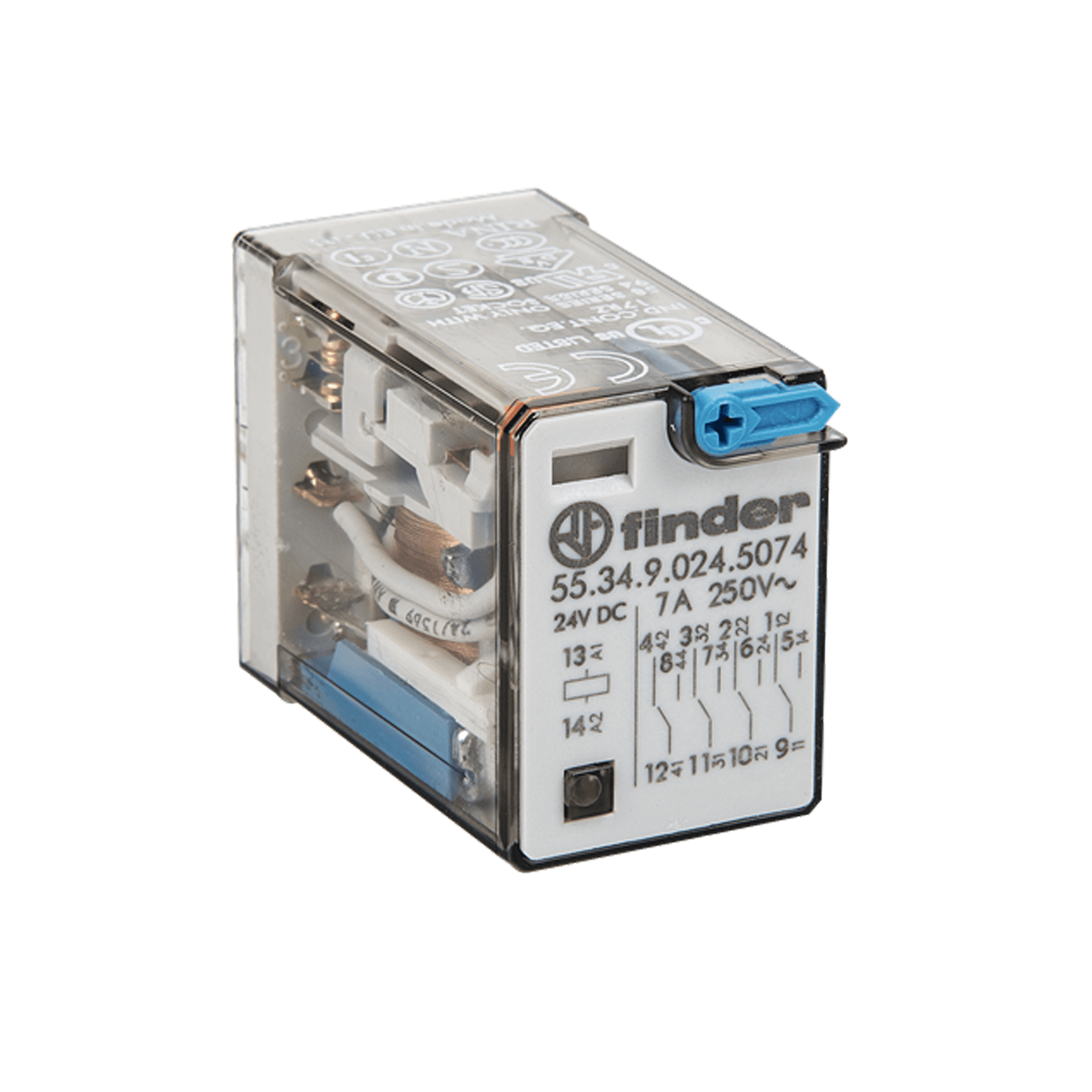

MINIATURE GP RELAY 7A 4CO 24VDC in pakistan BR1826
MINIATURE GP RELAY 7A 4CO 24VDC
Product Series 55
Component Type Timers and Control relays Relay
Specification:
Contact Configuration 4 CO
In, Rated Current 7 A
Icw, Short Time Withstand Current, 10ms (rms) 15 A, 10ms
Un, Nominal Operational Voltage, AC 250 V AC
Ue, Rated Operational Voltage, AC, max 250 V AC
Rated Load, AC-1 1750 VA
Rated Load, AC-15 350 VA
Contact Rated Power, Single Phase Motor, 230V AC 0.125 kW
Material, Contacts Silver Nickel (AgNi) material
Mechanical service life 50000000 cycles
Electrical Service Life at Un, In 150000 cycles
Total Making Time 11 ms
Total Breaking Time 3 ms
Insulation Voltage, between Coil & Contacts 4000 V
Dielectric Strength, between open Contacts 1000 V AC
Mounting Plug-in
Operating Temperature, Min -40 °C min
Operating Temperature, Max 85 °C max
Height 37.2 mm
Width 27.7 mm
Depth 20.7 mm
Shock Acceleration (Max.) 16 g
Shock Duration (Max.) 3 ms
Vibration Acceleration (Max.) 15 g
Vibration Frequency, Operational (Max.) 55 Hz
Certifications CE
CCC
CSA
EAC
GOST-R
IMQ
C-UR-US
VDE
