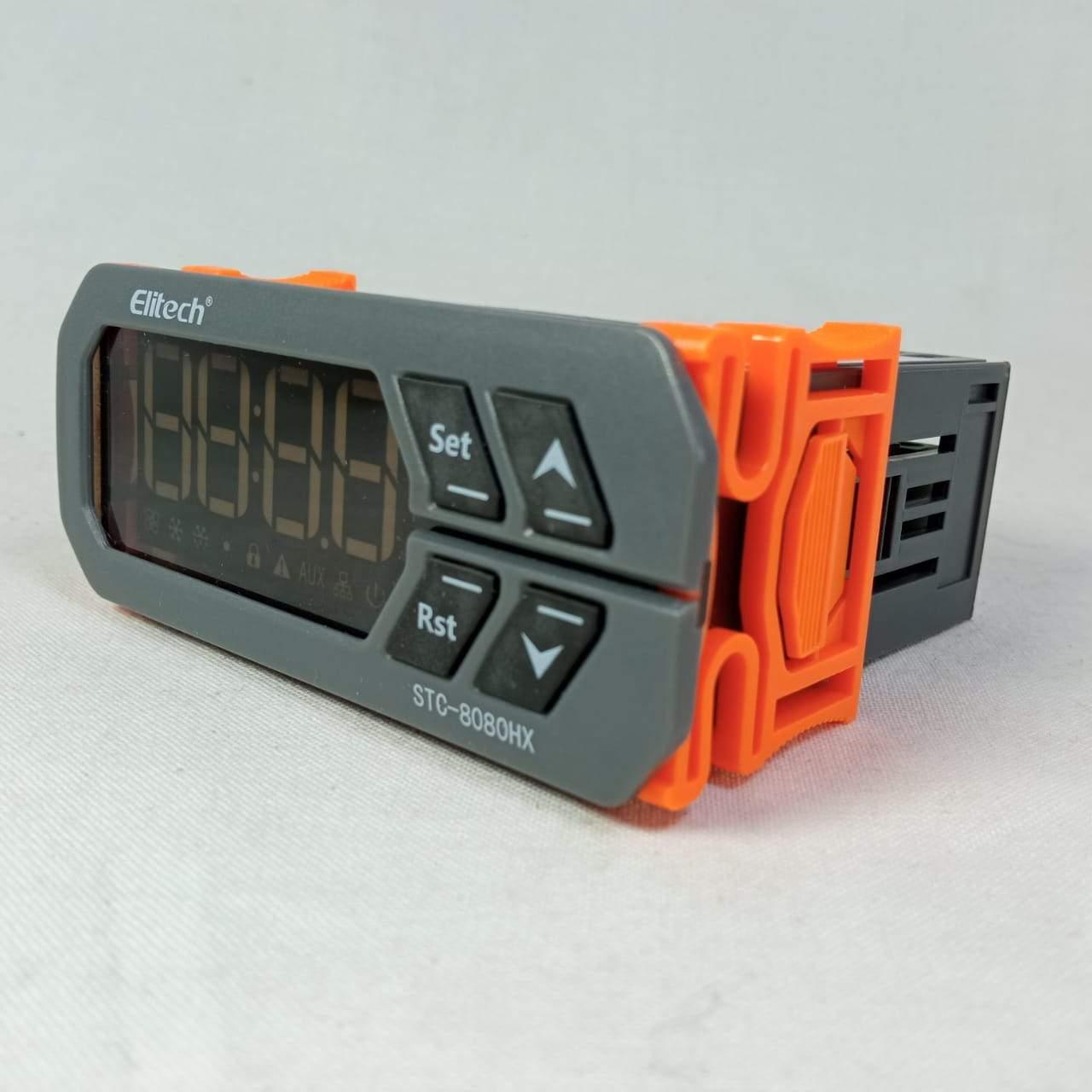

Elitech STC-8080HX-02 Thermostat Temperature Controller main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when the temperature exceeds

Features:

1. Middle-low  temperature cold storage, wind cooling cabinet, kitchen cabinet, operating console, refrigerating display cabinet
2. Refrigerating, timing defrost modes optionally
3. Exceeding temperature alarm
4. Temperature upper and lower limit setting
5. Compressor delay protection adjustment (STC-8080HX-02)
6. Sensor error occurs, the compressor turns on/off with proportional time
7. Refrigeration,Defrost,1NTC,Temperature Calibration

Specifications:

• 71mm x 29mm hole installlation
• Product size: 80.5mmx34.9mmx65.8mm
• Power supply: 220vac + 10% / - 15%, 50 / 60hz.
• Power consumption: < 3w
• Temperature measuring range: - 50c ~ + 99c
• Temperature control range: ~ 40c ~ + 50c
• Resolution: 1c
• Accuracy: + 1c when temperature - 40c ~ + 50c, + 2c at others
• 10a / 277vac csn drive single phase compressor relay capacity of compressor
• Relay capacity of defroster: 10a / 277vac
• 1 minute relay time sensor error
• Type sensor: Ntc sensor
• Ipx4 front panel safe level:
• Operating temperature: 0c ~ 60c
• Temperature storage: - 30c ~ + 75c
• Relative humidity: 20% ~ 85% (no condensate)

Industryparts.pk is the Best Online Shopping website for STC-8080HX-02 Microcomputer Temperature Controller (Elitech) in Pakistan. Here you get STC-8080HX-02 Microcomputer Temperature Controller (Elitech) in Pakistan at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

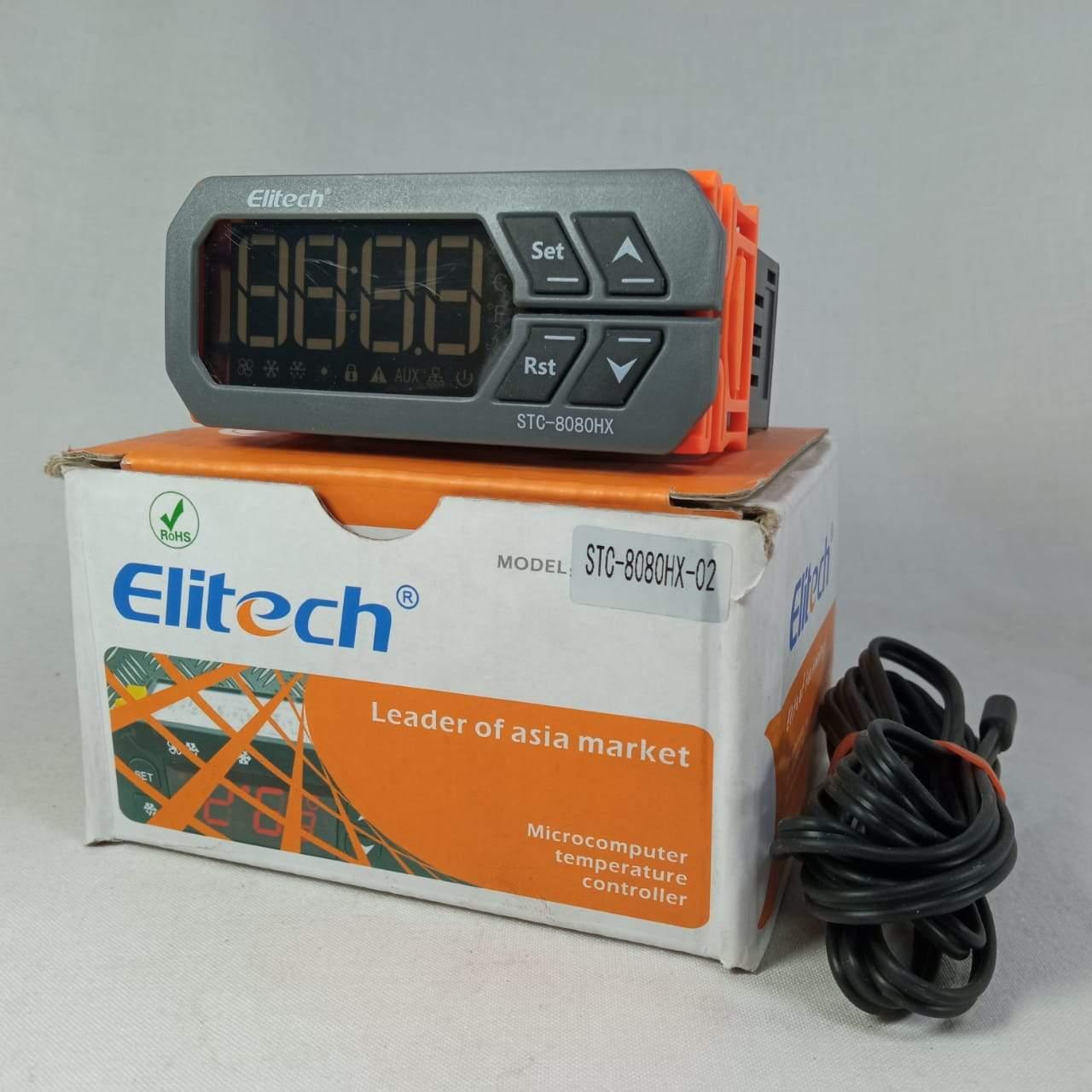

Package Includes:

1 x STC-8080HX-02 Microcomputer Temperature Controller (Elitech)
