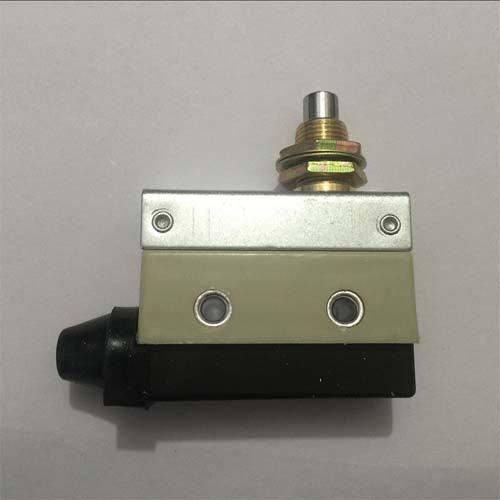

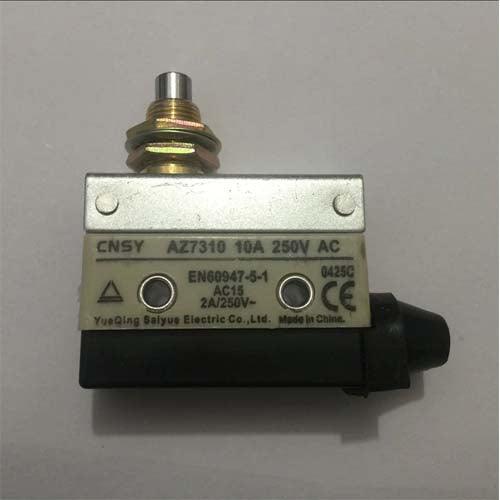

Micro switch 10A 250VAC AZ-7310 Travel Limit Switch in Pakistan

SKU:BR3075-B218

Regular price Rs 0
Regular price Sale price Rs 0
Sale Sold out

Microswitch 10A 250VAC AZ-7310 Travel Limit Switch is a small, very sensitive switch that requires minimum compression to activate. They are very common in home appliances and switch panels with small buttons. ... Because they are reliable and sensitive, micro switches are often used as a safety device.

Specification:

  • Product Name:  Micro Switch
  • Model: CNSY
  • Contact Configuration: 1NO1NC
  • Actuator Action: Momentary (Self-reset)
  • Rating Voltage: 250V
  • Rating Current:10A
  • Terminal Type:Screw (3 terminals)
  • Button    Colour: Silver, Black
  • Button   Material: Metal,Plastic
  • Contact      Resistance: <=30mohm
  • Insulation Resistance: >=100Mohm (500VDC)
  • Dielectric  Strength: 1500VAC   1 Minute
  • Operating  Temperature:  -15 Celsius  - +80 Celsius
  • Ambient Humidity Used:  < 95 percent RH
  • Electrical      Life: >=1,0000 Cycles
  • Mechanical  Life: >=100,000 Cycle
  • IP Degree: IP65

Package Include:

1 x  Microswitch 10A 250VAC AZ-7310 Travel Limit Switch

Industryparts.pk is the Best Online Shopping website for Microswitch 10A 250VAC AZ-7310 Travel Limit Switch. Here you get Microswitch 10A 250VAC AZ-7310 Travel Limit Switch at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

View full details

Description

Microswitch 10A 250VAC AZ-7310 Travel Limit Switch is a small, very sensitive switch that requires minimum compression to activate. They are very common in home appliances and switch panels with small buttons. ... Because they are reliable and sensitive, micro switches are often used as a safety device.

Specification:

  • Product Name:  Micro Switch
  • Model: CNSY
  • Contact Configuration: 1NO1NC
  • Actuator Action: Momentary (Self-reset)
  • Rating Voltage: 250V
  • Rating Current:10A
  • Terminal Type:Screw (3 terminals)
  • Button    Colour: Silver, Black
  • Button   Material: Metal,Plastic
  • Contact      Resistance: <=30mohm
  • Insulation Resistance: >=100Mohm (500VDC)
  • Dielectric  Strength: 1500VAC   1 Minute
  • Operating  Temperature:  -15 Celsius  - +80 Celsius
  • Ambient Humidity Used:  < 95 percent RH
  • Electrical      Life: >=1,0000 Cycles
  • Mechanical  Life: >=100,000 Cycle
  • IP Degree: IP65

Package Include:

1 x  Microswitch 10A 250VAC AZ-7310 Travel Limit Switch

Industryparts.pk is the Best Online Shopping website for Microswitch 10A 250VAC AZ-7310 Travel Limit Switch. Here you get Microswitch 10A 250VAC AZ-7310 Travel Limit Switch at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
