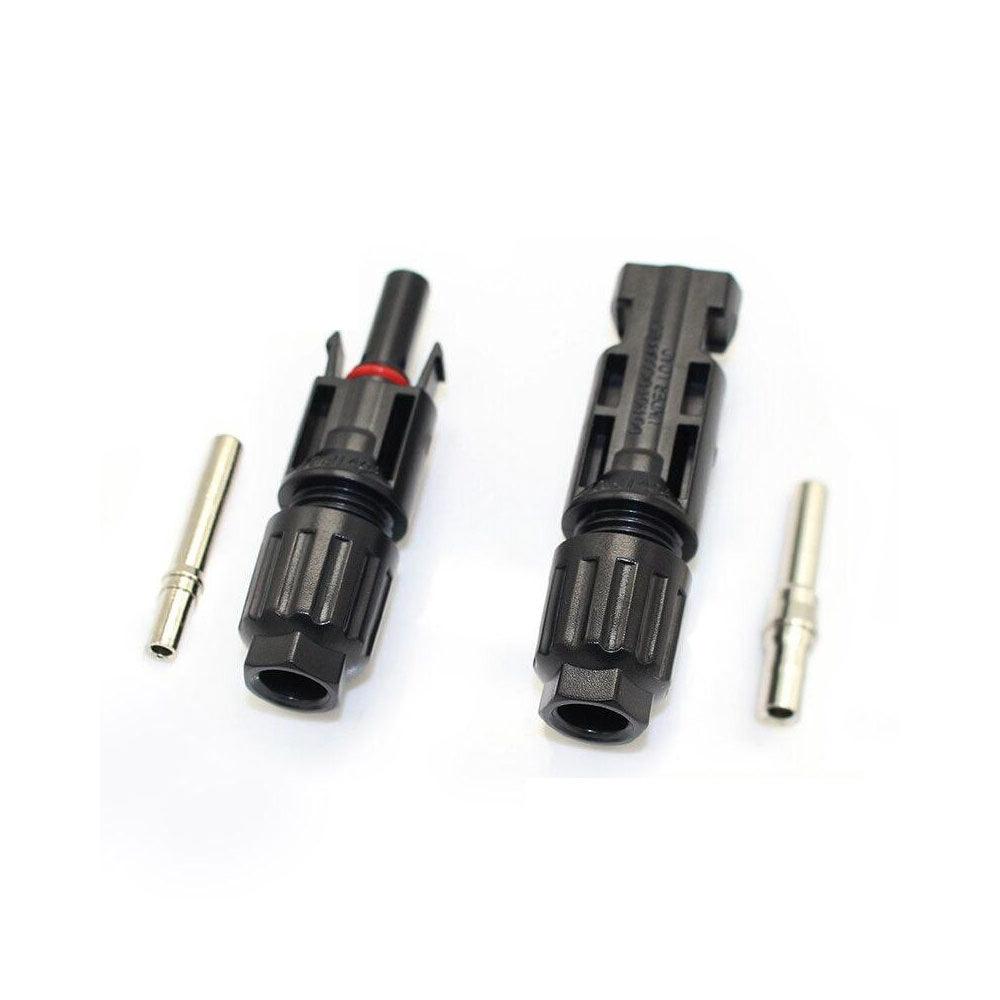

Build safe, weatherproof PV connections with the MC4 Solar Connector (Solid Pin) DC, now available in Pakistan. This male MC4 uses a solid tinned‑copper contact for low resistance and stable current, ideal for series/parallel string wiring, extension leads, and inverter inputs. The UV‑resistant PPO housing, sealing O‑ring, and strong snap‑lock provide IP67 protection against dust and rain, keeping your array running in harsh outdoor conditions.
Installation is quick: crimp the solid pin onto 2.5–6 mm² PV cable using a proper MC4 crimp tool, insert, and lock. Anti‑release tabs prevent accidental unplugging while allowing service with an MC4 unlock key. Rated up to 1000/1500 V DC and up to 30 A (model dependent), this connector helps minimize voltage drop and heat, improving system efficiency and reliability. It mates with standard MC4 female sockets of the same spec.
Features:
- Solid tinned‑copper pin for low resistance
- IP67 weatherproof, UV‑resistant PPO housing
- Secure snap‑lock with anti‑release tabs
- Fits 2.5–6 mm² PV cable; quick crimp install
- High DC rating: 1000/1500 V, up to 30 A (variant)
Specifications:
- Type: MC4 male connector, solid pin, DC
- Voltage/Current: 1000/1500 V DC; up to 30 A (model dependent)
- Cable Range: 2.5–6 mm² (14–10 AWG)
- Materials/Protection: PPO housing, tinned Cu pin, IP67, UL94‑V0
- Temp/Resistance: −40°C to +90°C; contact ≤0.5 mΩ (typ.)
Uses:
- Panel‑to‑panel series/parallel connections
- PV extension leads to combiner/inverter
- Rooftop and ground‑mount DC wiring
- Off‑grid, telecom, CCTV solar kits
- Repair/retrofit of existing MC4 lines
Package Includes:
1 x Mc4 Solar Connector Solid Pin DC
Industryparts.pk is the Best Online Shopping website for Mc4 Solar Connector Solid Pin DC. Here you get Mc4 Solar Connector Solid Pin DC at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
| Size |
1000V DC, 1500V DC |
|---|
