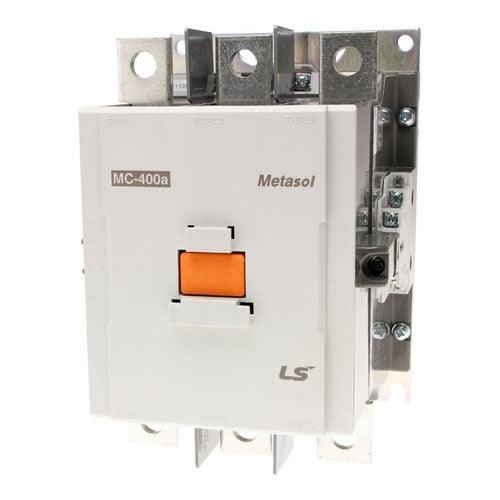

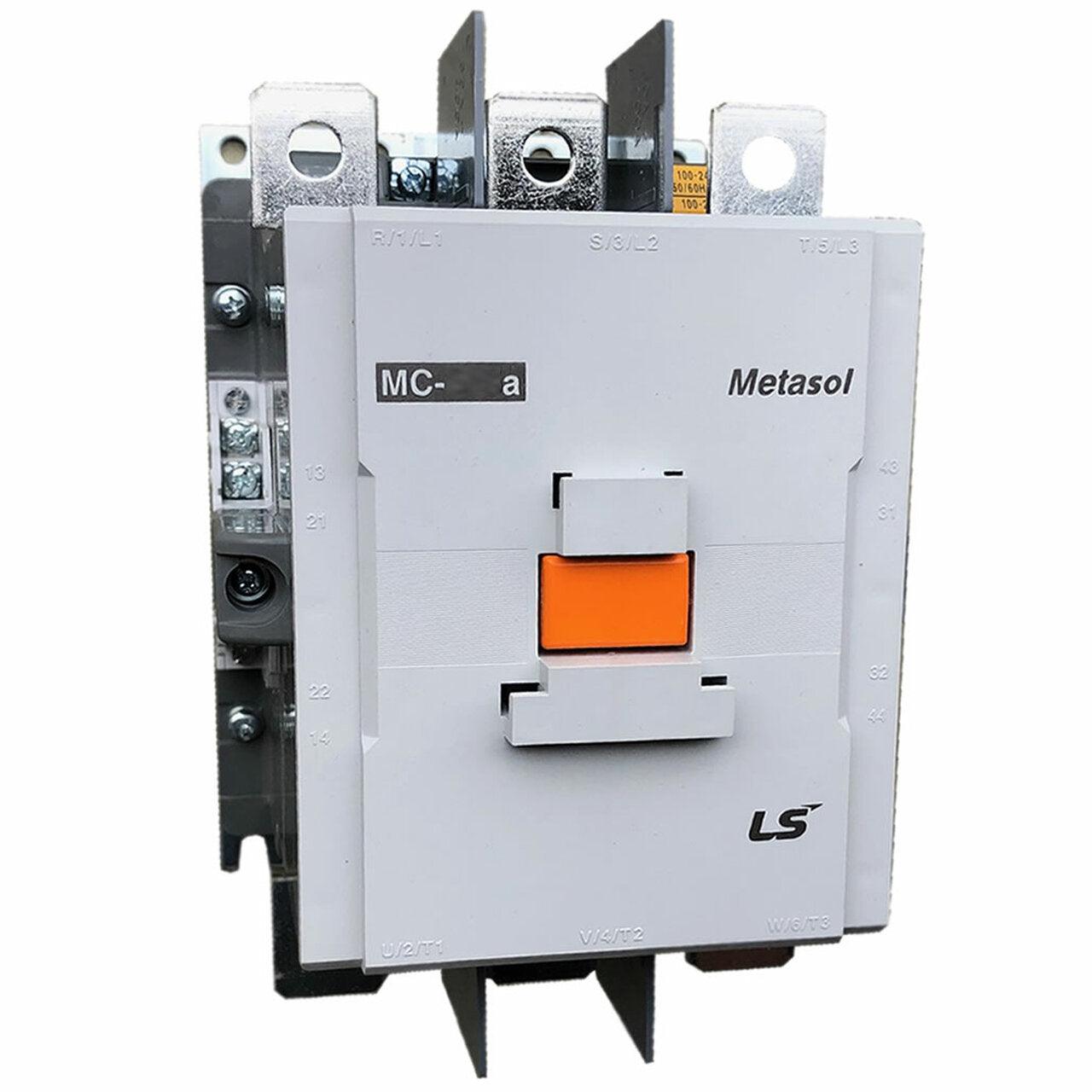

LS MC-400a Meta sol Contactor

SKU:BR1249-100a-1-1-1-1-1-1-1

Regular price Rs 69,500
Regular price Rs 72,600 Sale price Rs 69,500
Sale Sold out

LS MC-400a Meta sol Contactor in Pakistan BR1249

 The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:



  • Compact design for space saving
  •
  • DIN rail and screw mountable
  •
  • Finger-proof design
  •
  • Broad range of accessories
  •
  • World class products conforming to IEC and UL standards
  •


Specification:

 Model: MC-400a  Amp Rating:  AC3 400A  Coil Voltage: 240VAC    - 3-pole(NO) main contact  - Finger proof design  - DIN rail or screw mountable  - Front/side mountable accessories available    - 1NO and 1NC Auxiliary contact built-in as  standard.    Made in korea    Description

  • Contactor LS MC-400a
  •
  • Rated current 400A (load AC3 voltage 380 / 440V)
  •
  •  Capacity   220kw/300hp
  •
  • Number of poles 3P.
  •
  • Additional contact: 1NO or 1NC.
  •
  • Coil Voltage  220v.
  •
  • Working temperature -5 to + 55 ° C.
  •
  • IP20 protection rating.
  •
View full details

Description

LS MC-400a Meta sol Contactor in Pakistan BR1249

 The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:



  • Compact design for space saving
  •
  • DIN rail and screw mountable
  •
  • Finger-proof design
  •
  • Broad range of accessories
  •
  • World class products conforming to IEC and UL standards
  •


Specification:

 Model: MC-400a  Amp Rating:  AC3 400A  Coil Voltage: 240VAC    - 3-pole(NO) main contact  - Finger proof design  - DIN rail or screw mountable  - Front/side mountable accessories available    - 1NO and 1NC Auxiliary contact built-in as  standard.    Made in korea    Description

  • Contactor LS MC-400a
  •
  • Rated current 400A (load AC3 voltage 380 / 440V)
  •
  •  Capacity   220kw/300hp
  •
  • Number of poles 3P.
  •
  • Additional contact: 1NO or 1NC.
  •
  • Coil Voltage  220v.
  •
  • Working temperature -5 to + 55 ° C.
  •
  • IP20 protection rating.
  •
