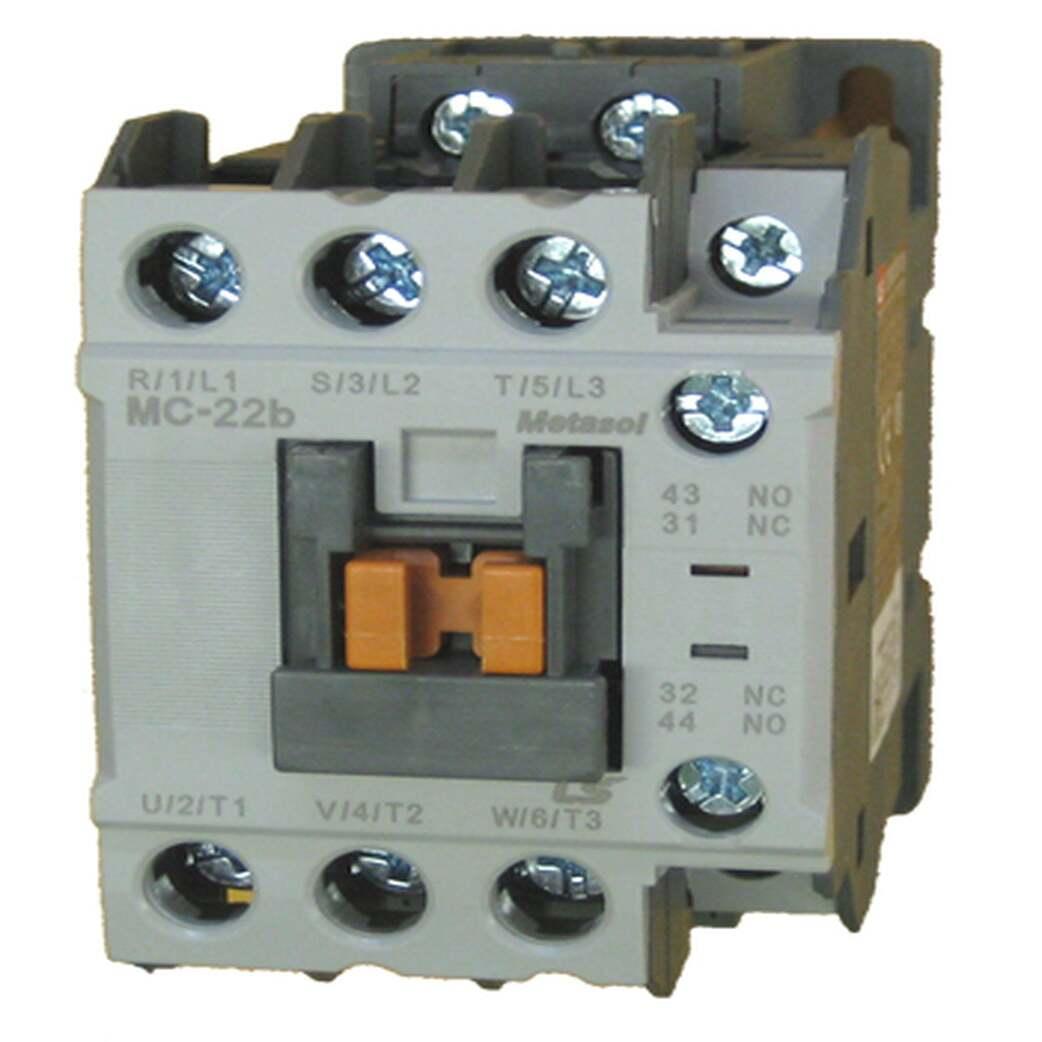

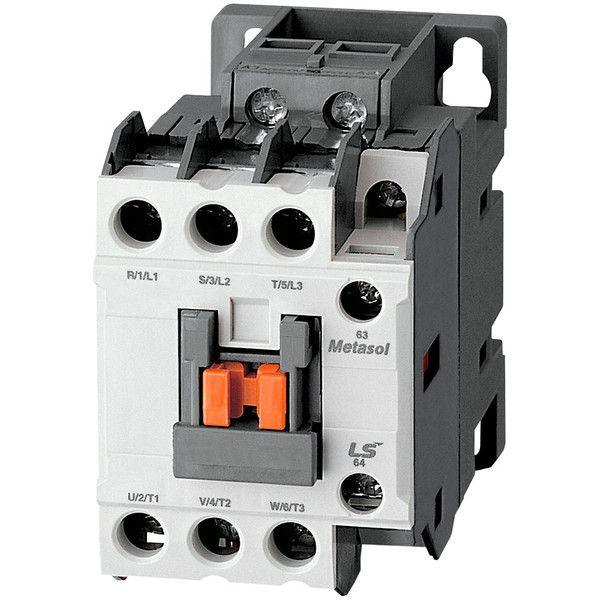

LS MC-22b Meta Sol Contactor in Pakistan

SKU:BR1234-12b-1-1

Regular price Rs 3,200
Regular price Rs 3,500 Sale price Rs 3,200
Sale Sold out

LS MC-22b Meta Sol Contactor in Pakistan BR1234

The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:

  • Compact design for space saving
  • DIN rail and screw mountable
  • Finger-proof design
  • Broad range of accessories
  • World class products conforming to IEC and UL standards

Specification:

Model: MC-22b  Amp Rating:  AC3 22A  Coil Voltage: 240VAC    - 3-pole(NO) main contact  - Finger proof design  - DIN rail or screw mountable  - Front/side mountable accessories available    - 1NO and 1NC Auxiliary contact built-in as  standard.

Description


  • Contactor LS MC-22b
  •
  • Rated current 22A (load AC3 voltage 380 / 440V)
  •
  •  Capacity   7.5kw/10hp
  •
  • Number of poles 3P.
  •
  • Additional contact: 1NO or 1NC.
  •
  • Coil Voltage  220v.
  •
  • Working temperature -5 to + 55 ° C.
  •
  • IP20 protection rating.
  •
View full details

Description

LS MC-22b Meta Sol Contactor in Pakistan BR1234

The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:

  • Compact design for space saving
  • DIN rail and screw mountable
  • Finger-proof design
  • Broad range of accessories
  • World class products conforming to IEC and UL standards

Specification:

Model: MC-22b  Amp Rating:  AC3 22A  Coil Voltage: 240VAC    - 3-pole(NO) main contact  - Finger proof design  - DIN rail or screw mountable  - Front/side mountable accessories available    - 1NO and 1NC Auxiliary contact built-in as  standard.

Description


  • Contactor LS MC-22b
  •
  • Rated current 22A (load AC3 voltage 380 / 440V)
  •
  •  Capacity   7.5kw/10hp
  •
  • Number of poles 3P.
  •
  • Additional contact: 1NO or 1NC.
  •
  • Coil Voltage  220v.
  •
  • Working temperature -5 to + 55 ° C.
  •
  • IP20 protection rating.
  •
