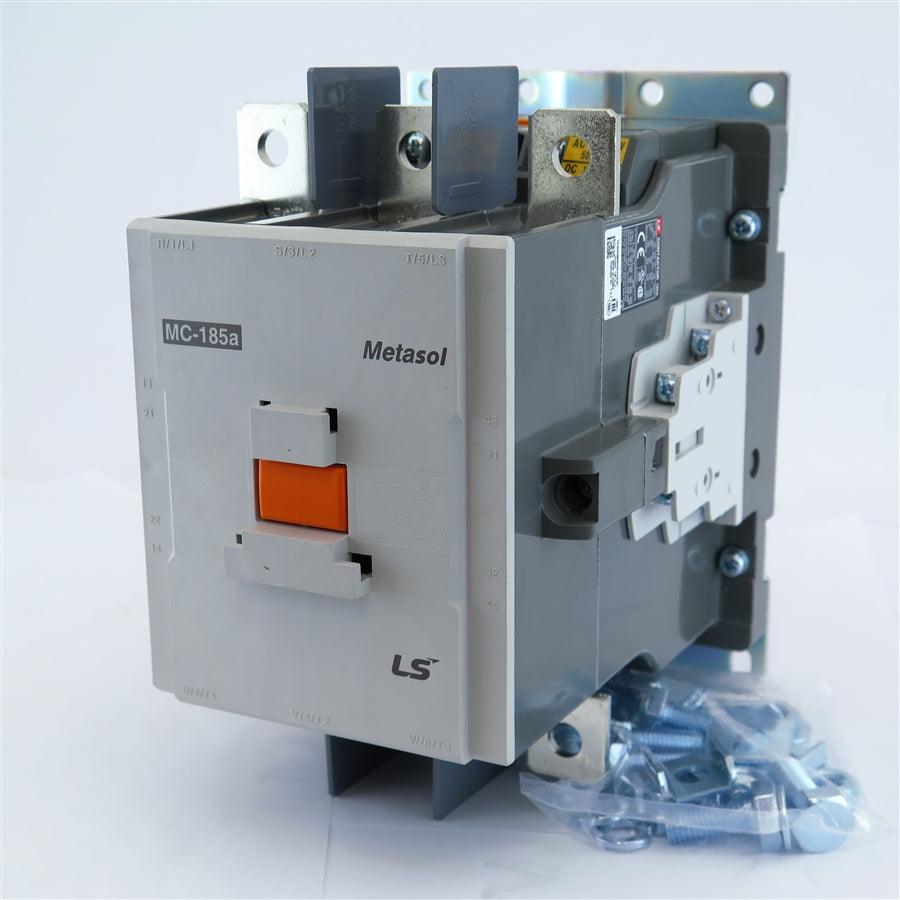

LS MC-185a Meta Sol Contactor in Pakistan

SKU:BR1245

Regular price Rs 32,400
Regular price Rs 35,800 Sale price Rs 32,400
Sale Sold out

LS MC-185a Meta Sol Contactor in Pakistan BR1245

The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:

  • Compact design for space saving
  • DIN rail and screw mountable
  • Finger-proof design
  • Broad range of accessories
  • World class products conforming to IEC and UL standards

Specification:

Model: MC-185a
Amp Rating:  AC3 185A
  • Contactor LS MC-185a
  •
  • Rated current 150A (load AC3 voltage 380 / 440V)
  •
  •  Capacity   90kw/125hp
  •
  • Number of poles 3P.
  •
  • Additional contact: 1NO or 1NC.
  •
  • Coil Voltage  220v.
  •
  • Working temperature -5 to + 55 ° C.
  •
  • IP20 protection rating.

Package Include:

1 x LS MC-185a Meta Sol Contactor
View full details

Description

LS MC-185a Meta Sol Contactor in Pakistan BR1245

The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:

  • Compact design for space saving
  • DIN rail and screw mountable
  • Finger-proof design
  • Broad range of accessories
  • World class products conforming to IEC and UL standards

Specification:

Model: MC-185a
Amp Rating:  AC3 185A
  • Contactor LS MC-185a
  •
  • Rated current 150A (load AC3 voltage 380 / 440V)
  •
  •  Capacity   90kw/125hp
  •
  • Number of poles 3P.
  •
  • Additional contact: 1NO or 1NC.
  •
  • Coil Voltage  220v.
  •
  • Working temperature -5 to + 55 ° C.
  •
  • IP20 protection rating.

Package Include:

1 x LS MC-185a Meta Sol Contactor
