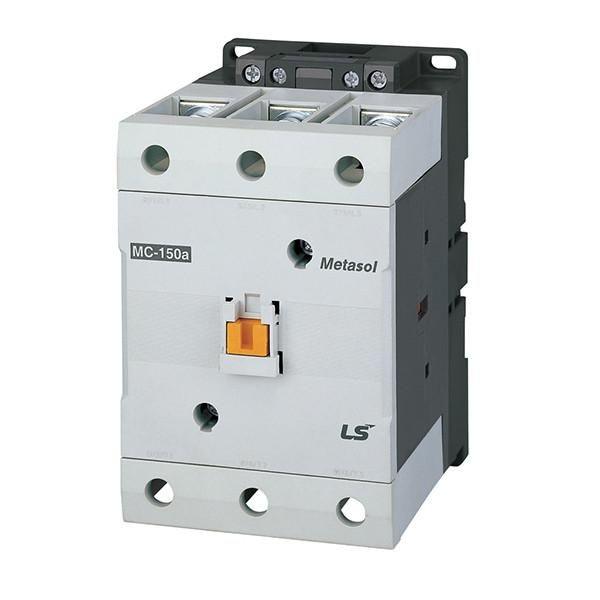

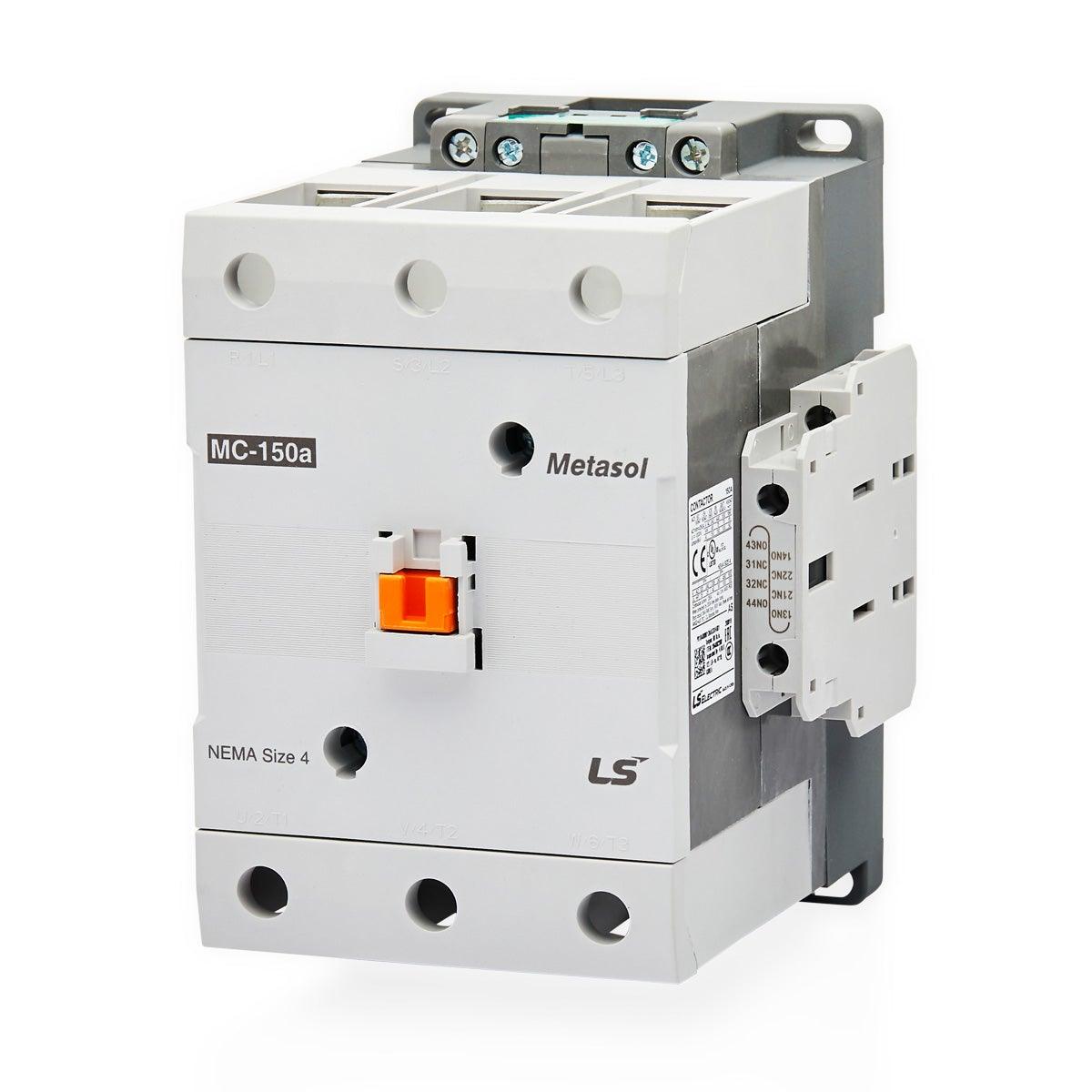

LS MC-150a Meta sol Contactor

LS MC-150a Meta sol Contactor in Pakistan BR1244

 The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:




• Compact design for space saving

• DIN rail and screw mountable

• Finger-proof design

• Broad range of accessories

• World class products conforming to IEC and UL standards




Specification:

 Model: MC-150a  Amp Rating:  AC3 150A  Coil Voltage: 240VAC    - 3-pole(NO) main contact  - Finger proof design  - DIN rail or screw mountable  - Front/side mountable accessories available    - 1NO and 1NC Auxiliary contact built-in as  standard.    Made in korea    Description


• Contactor LS MC-150a

• Rated current 150A (load AC3 voltage 380 / 440V)

•  Capacity   75kw/100hp

• Number of poles 3P.

• Additional contact: 1NO or 1NC.

• Coil Voltage  220v.

• Working temperature -5 to + 55 ° C.

• IP20 protection rating.
