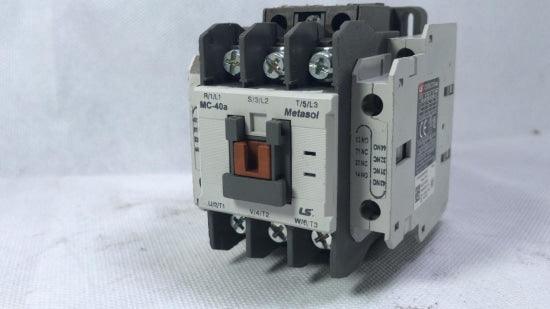

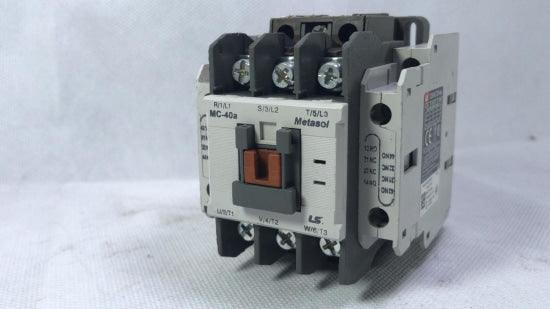

LS Electric Metasol Contactor MC-40A-AC240 in Pakistan
SKU:BR8221
Couldn't load pickup availability
LS Electric Metasol Contactor MC-40A-AC240 in Pakistan BR8221
Description
Metasol Contactors are designed to show superior technology, offering an economical solution with a compact size and easy connection. The sealed structure has improved its safety features so that no arc flash is exposed.
Features:
- 3-pole(NO) main contact
- Finger proof design
- DIN rail or screw mountable
- AC or DC control in different physical size
- Front/side mountable accessories are available
- Direct mountable overload relay available Rating
- 1NO and 1NC Auxiliary contact built-in as standard.
Specifications:
| Number of Poles | 3 |
| Rated Operational Voltage, Ue | 690V |
| Rated Insulation Voltage, Ui | 1000V |
| Rated Frequency | 60Hz |
| Rated Impulse Withstand Voltage, Uimp | 8kV |
| Resistive Load (AC1) | 60 |
| Maximum Operations per Hour (AC3) | 1800 |
| Mechanical Durability | 12,000,000 |
| Electrical Durability | 2,000,000 |
| Auxiliary Contacts (standard) | 2 N.O. / 2 N.C. |
| Conductor Size (solid/stranded) 65/75°C Cu - wire only |
10 - 6 AWG 2 conductor maximum |
| RoHS | Compliant |
| Standards | UL508 File # E108780 / E206826, CE |
Brandrethroad. pk is the Best Online Shopping website for LS Electric Metasol Contactor MC-40A-AC240. Here you get LS Electric Metasol Contactor MC-40A-AC240 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
- YouTube Link
- Pinterest Link
- Instagram Link
- Facebook Link
Package Includes:
1 x LS Electric Metasol Contactor MC-40A-AC240
