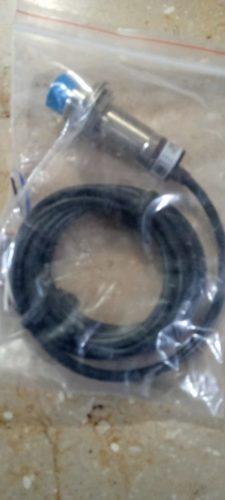

LJ18A3-8-Z/EX cylinder proximity sensor in Pakistan BR2692



Model number	LJ18A3-8 series
External dimensions	M18x60
Installation type	Non-shielded
Detection distance	14mm
Setting distance	6.4 mm
Supply voltage	6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current	DC type: 300mA max; AC Type: 400mA
Standard detected object	Mild steel (18x18x1mm)
Sensing object	Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency	500Hz
Matched mounting bracket	M18 90° bending mounting bracket, M18 straight mounting bracket
Output indication	Red LED
Short-circuit protection	No
Reverse connection protection	Yes
Insulation resistance	50M? min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
IP Rating	IP65
Operating temperature	-25 to 70 ? (13 to 158 ?)
Cable length	1.2m, PVC cable
Material	Case: Brass-nickel plated; Sensing surface: ABS
Alias name	LJ18A3-8 series cylinder inductive proximity switches
