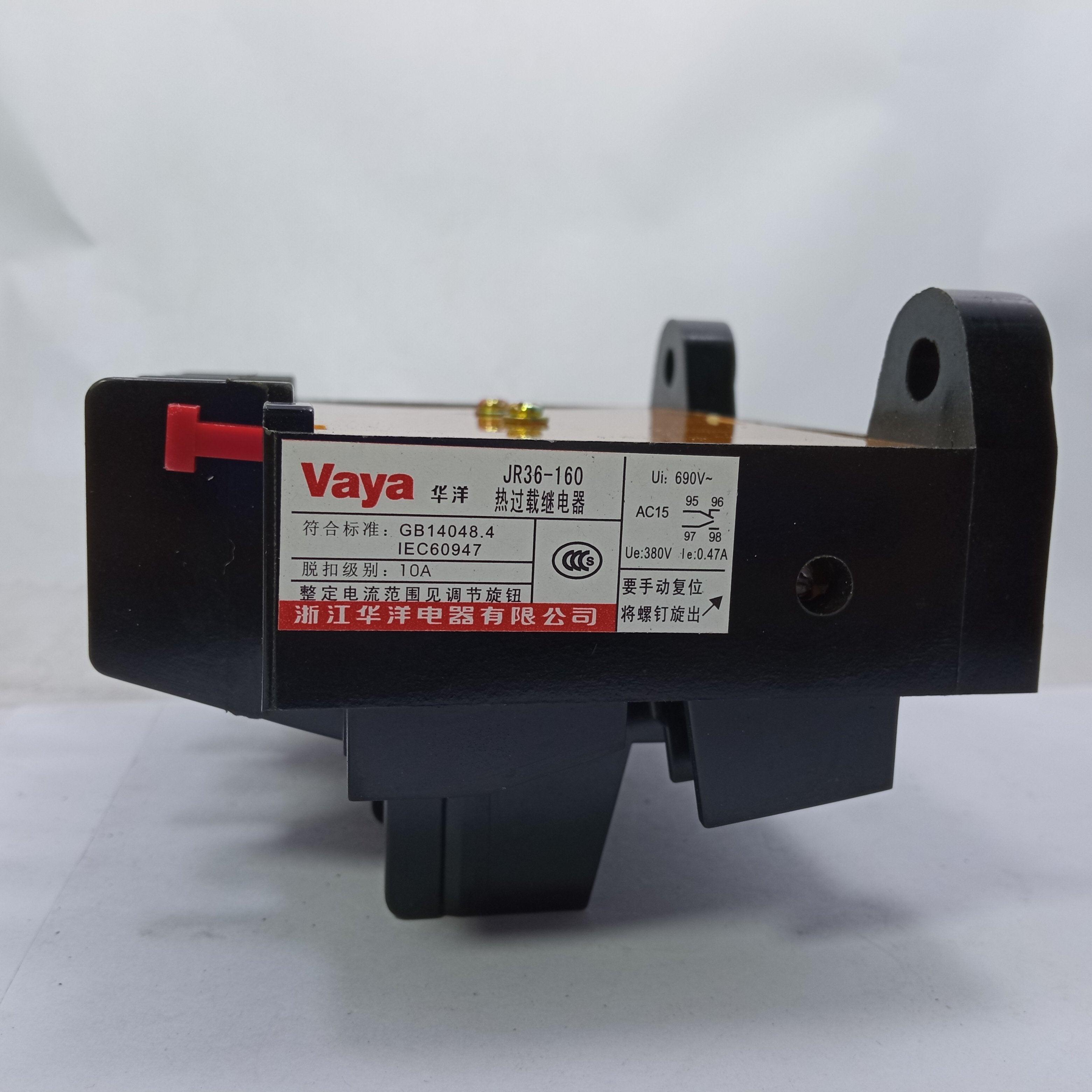

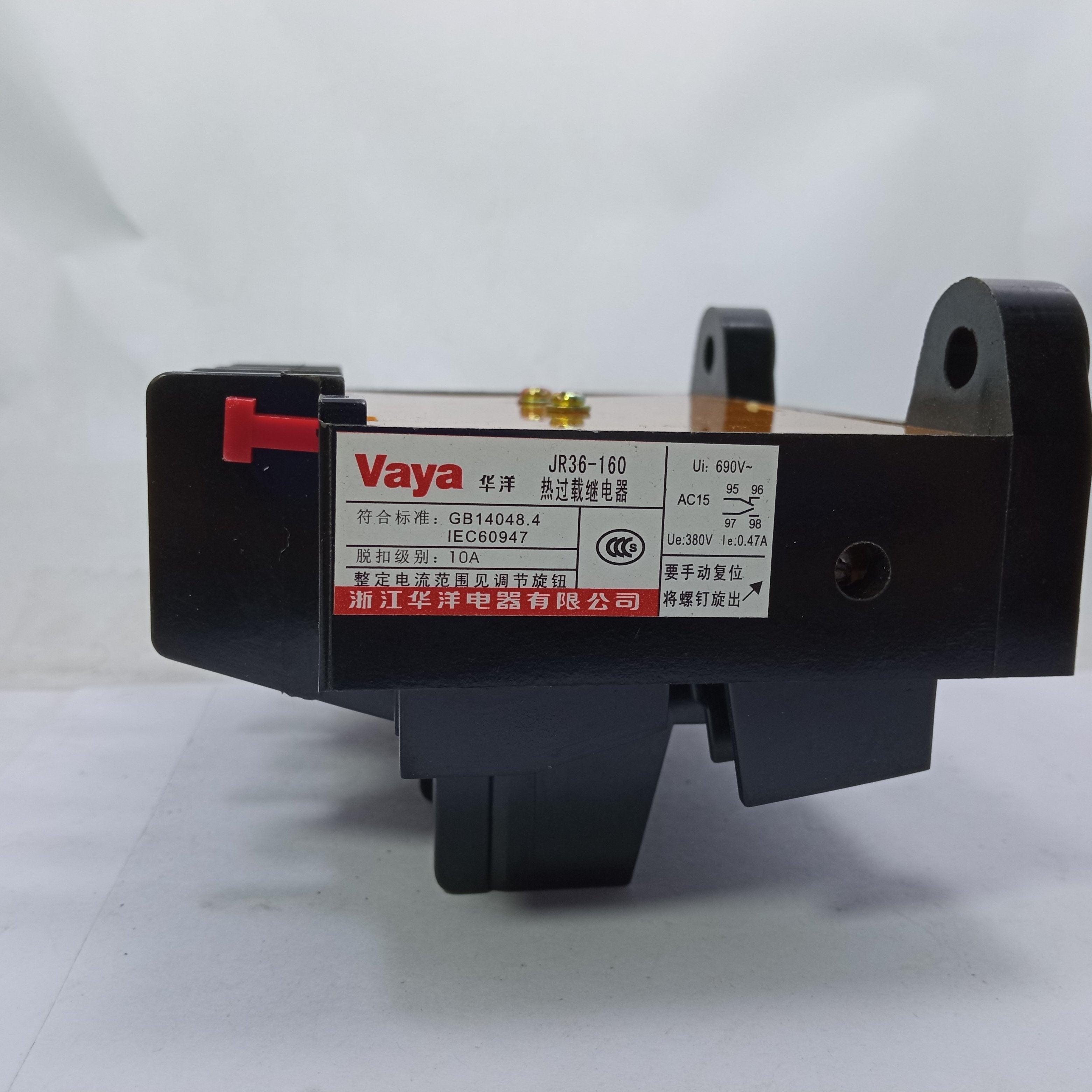

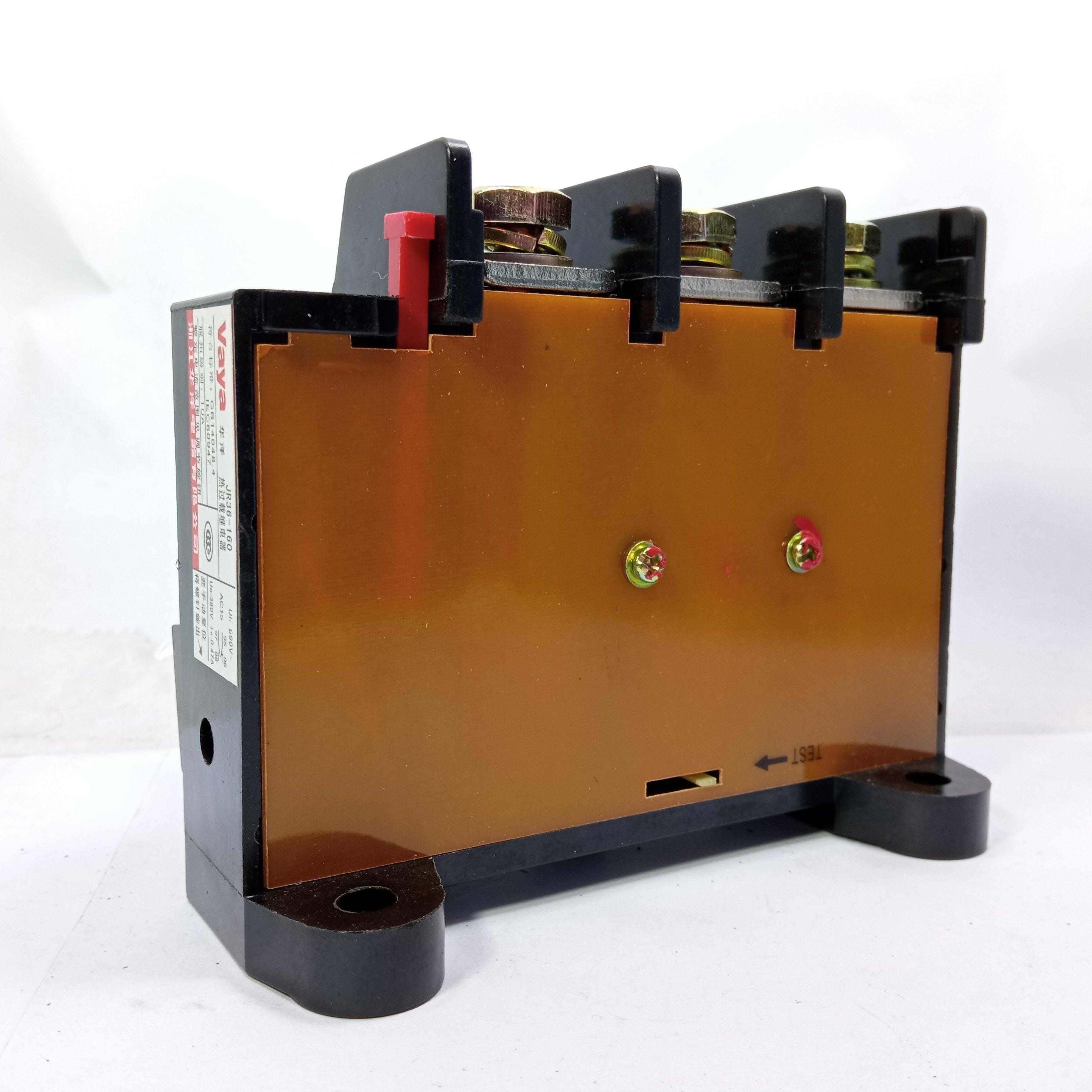

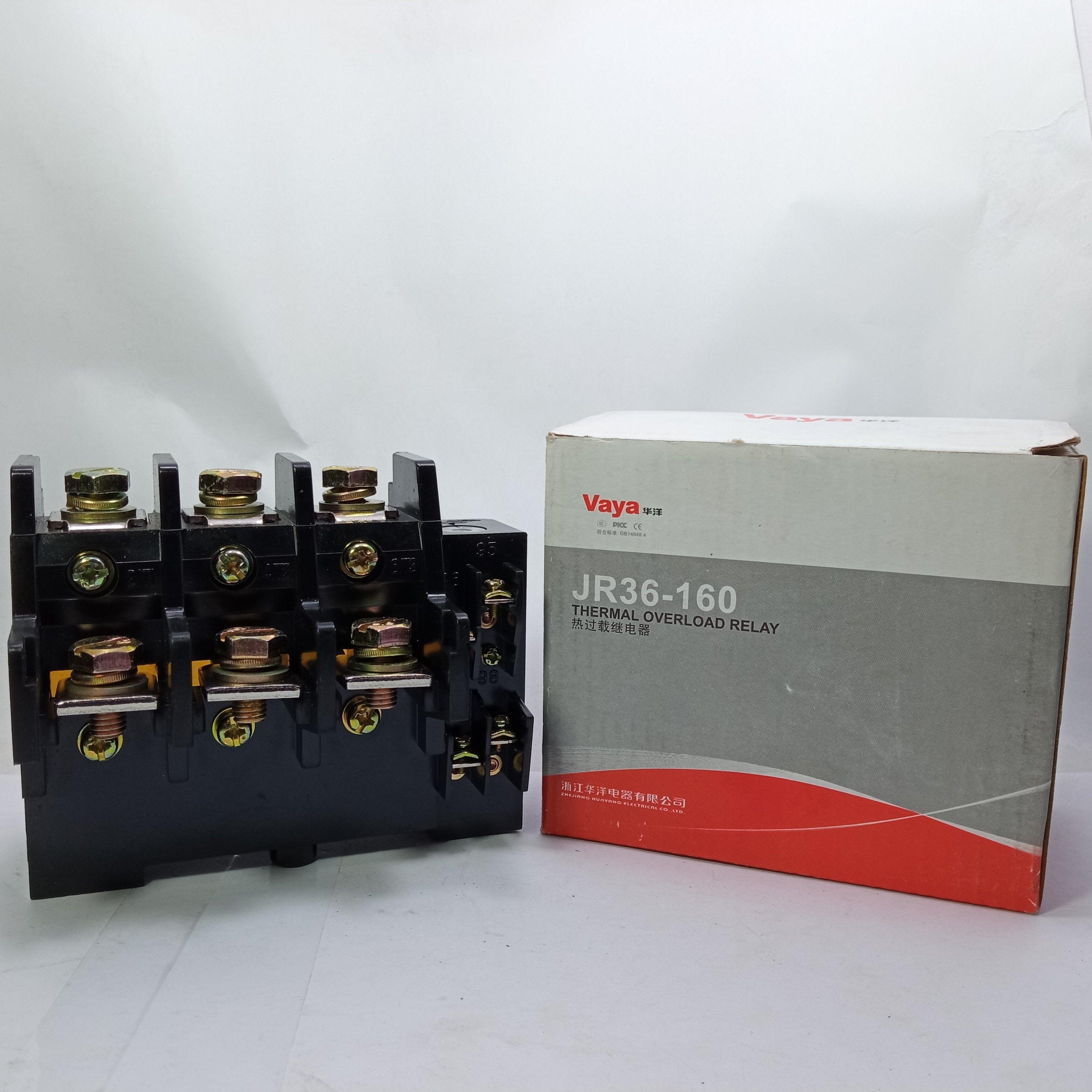

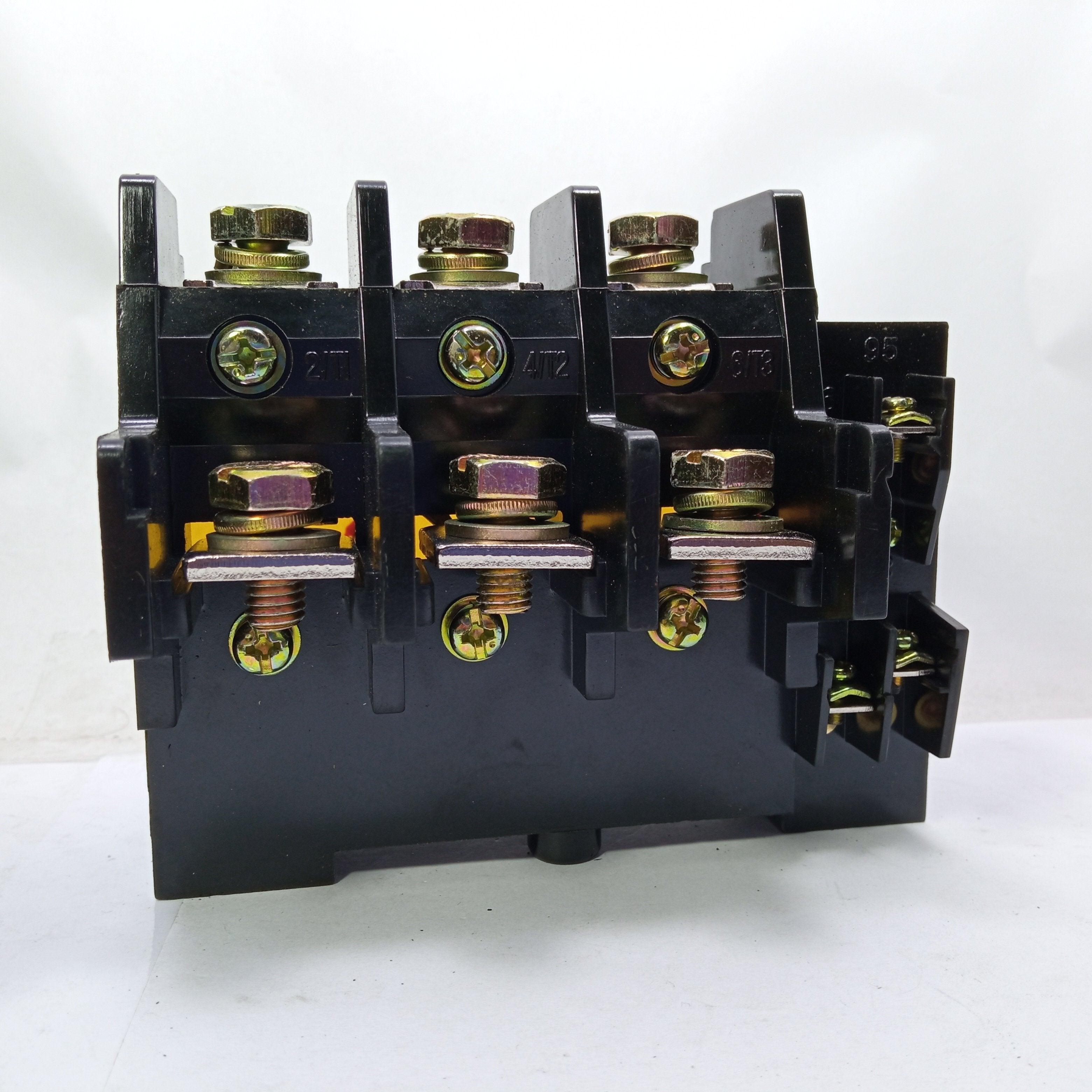

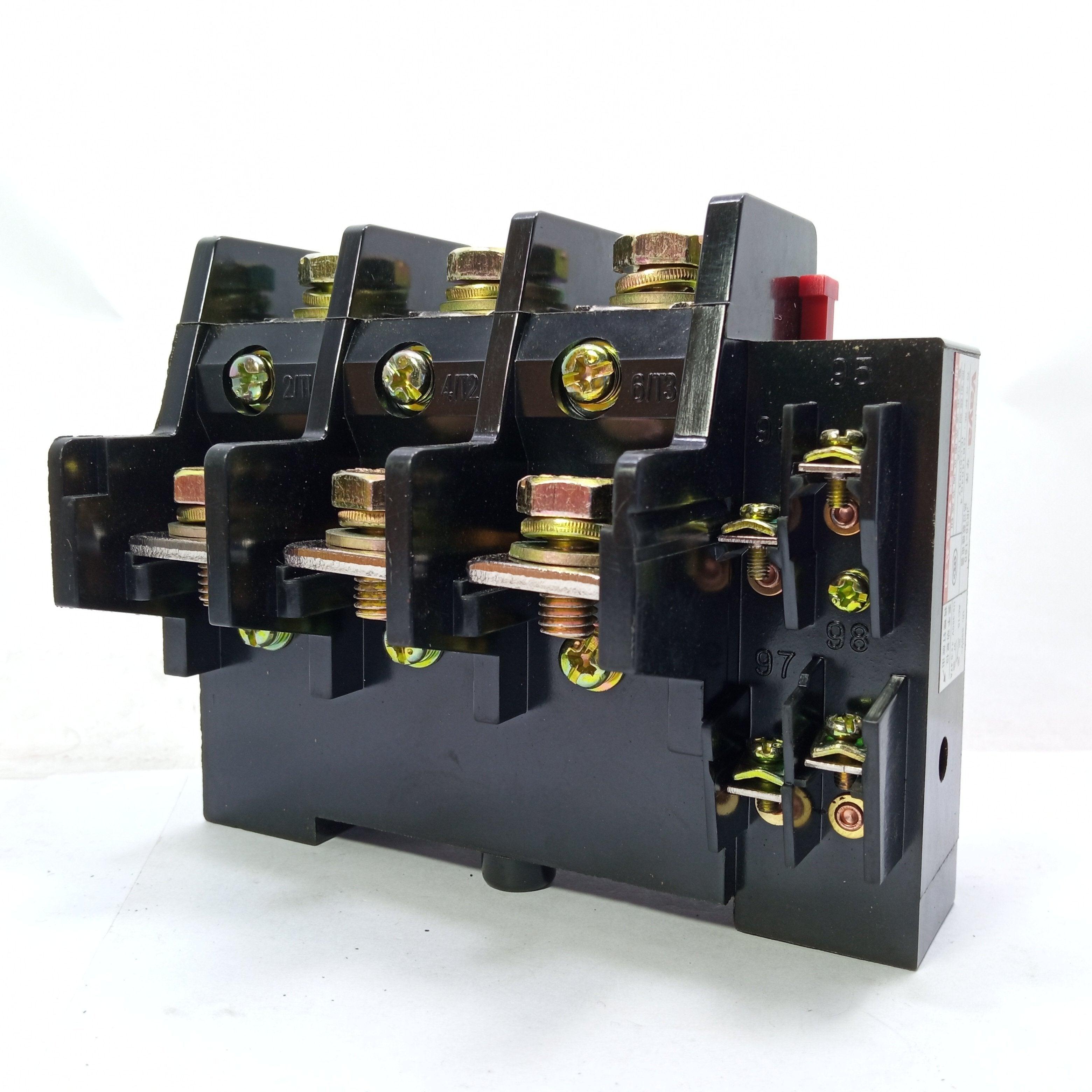

JR36-160 53-85A Relays 3 Phase 1 NO 1 NC Motor Protector Electric Thermal Overload Accessory Power Relay
SKU:BR6779
Couldn't load pickup availability
JR36-160 53-85A Relays 3 Phase 1 NO 1 NC Motor Protector Electric Thermal Overload Accessory Power Relay in Pakistan
Description
The thermal overload relay is suitable for use in a power system with a rated isolation voltage of up to 690V, adjustable current from 53-85A.
JR36-160 series thermal overload relay can be used as overload protection of your long-term or indirect long-term service AC motor. It complies with the GB14048.4 standard.
Features:
- 3 poles.
- JR36-160 Series thermal relay can be used as overload protection of your long-term or indirect long-term service AC motor.
- The relay has functions of phase failure protection, temperature compensation, etc.
- Manual and automatic reset, test button, and a button that can manually bread the NC contact
Specifications:
| Package Content | 1 x Thermal Overload Relay |
| Model | JR36-160 |
| Main Color | Black |
| Adjusting Current Range | 40-63A 53-85A 75-120A 100A-160A |
| Auxiliary Contact Type | 1 NO + 1 NC |
| Overall Size (Approx.) | 122 x 77 x 101mm / 4.8" x 3" x 4" (L*W*H) |
| Fixing Holes Size | 8 x 7mm/0.31" x 0.28"(L*W) |
| Fixing Holes Spacing | 96mm/3.8" |
| Rated Insulation Voltage | AC 690V |
| Tripping Class | 10A |
| Pole Number | 3 |
| Ith | 10A |
| Ue | 380V |
| Ie | 0.47A |
| Environment Temperature | -5C~+40C |
Brandrethroad.pk is the Best Online Shopping website for Power Relay. Here you get Power Relay at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi,
Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Power Relay
