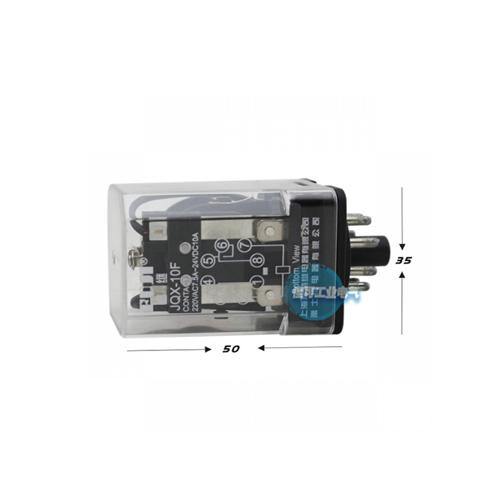

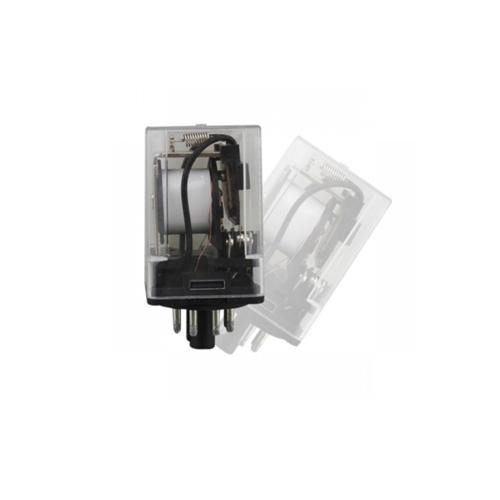

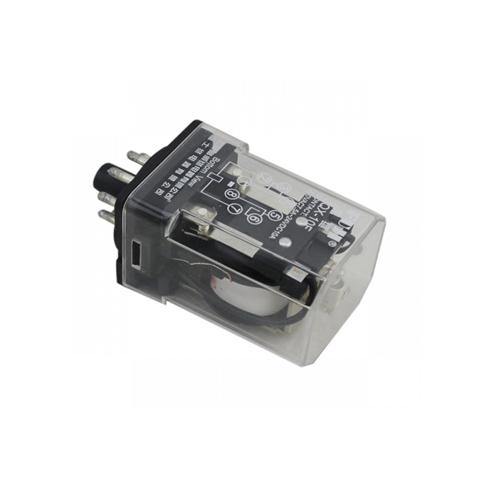

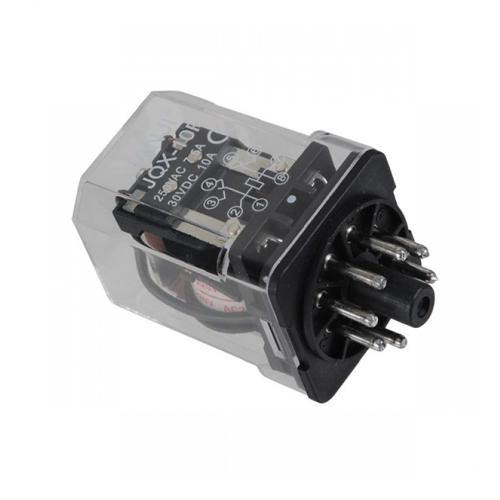

JQX-10F 2Z  10A 220V AC Pin coil electromagnetic relay in Pakistan BR3141

Description:

General Purpose Relay: 8 Pins, DPDT, with coil voltage AC220V, contact capacity 7.5A 250VAC, and 10A 30VDC. Can adjust automatically, protect and transform the electric circuit. Used widely in remote control, communication, automatic control system, electronic pieces of equipment, etc.

Features:

• Product Name : General Purpose Relay
• Model : JQX-10F-2Z
• Coil Voltage : AC220V
• Contact Capacity : 7.5A 250V AC, 30V 10A DC
• Number of Pins : 8
• Contact Form : DPDT
• Size (Approx.) : 6.6 x 3.3 x 3.4cm/2.5" x 1.2" x 1.3" (L*W*H)
• Shell Material : Plastic;Color : Clear, Black
• Weight : 70g
• Package Content : 1 x General Purpose Relay

 Specification:

• Usage: General purpose
• Contact load: High power
• Brand name: FXCOD
• Power source: AC
• Theory: Electromagnetic relay
• Model Number: JQX-10F
• Can be customized: Yes
• Protected Features: Sealed
• Contact form: 2Z
• Contact Capacity : 10A 250VAC / 30VDC
• Diameter : 34.5 * 34.5 * 52
• Operating Temprature : -40 ~ + 55
• Coil voltage: AC 220V
• Size: Miniature

Package Includes:

• 1 x JQX-10F 2Z 10A 220V AC Pin coil electromagnetic relay
