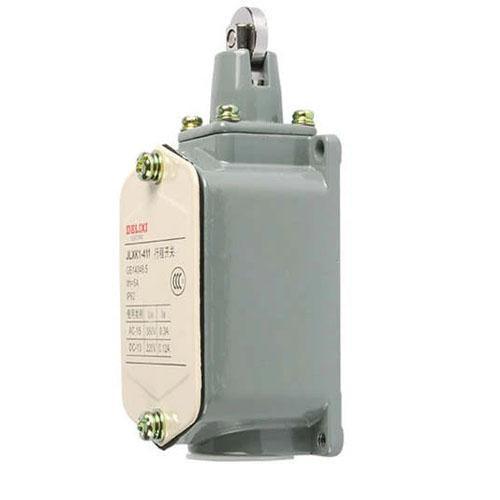

JLXK1-411 AC380V / DC 220V 5A limit switch

Rs 750
Rs 850 Rs 750
Sale Sold out
BR2207-B208

JLXK1-411 AC380V / DC 220V 5A limit switch BR2207

Product description:

 This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Safe and reliable ,dust and oil proof ,small installation size ,the products are for general use. Compatible with different connecting rod or contacting heads.


Specification:



  • Product Name : Limit Switch
    •
  • Model No. : JLXK1-411
    •
  • Actuator Type : Parallel Roller Plunger
    •
  • Contact Type: 1NC + 1NO
    •
  • Rated Voltage & Current:AC 380V, 5A,DC 220V, 5A
    •
  • Roller Wheel Size : 15 x 3.5mm / 0.6" x 0.14"(Dia.*T)
    •
  • Total Size : 104 x 43 x 37mm / 4.1" x 1.7" x 1.46"(L*W*T)
    •
  • Mounting Hole Diameter : 4mm / 0.16"
    •
  • Mounting Hole Distance : 65 x 35mm / 2.56" x 1.38"(L*W)
    •
  • Color : Yellow, Gray
    •
  • Material : Rubber, Plastic & Metal
    •
  • Net Weight : 148g
    •


Packages Include:

 Package Content : 1 x Limit Switch    1 x JLXK1-411 AC380V / DC 220V 5A limit switch
