The cumulative counter calculates the integral time for input (or output) analog values and reads the cumulative value. Monitor values can be set in Units. If the cumulative counter value exceeds the set monitor value, the Cumulative Counter Monitor Flag in general status turns ON.

Specification:

• Model number JDM11-6H series
• Supply voltage 12, 24, 36Vdc; 12, 24, 36, 110, 220 or 380 Vac
• Operating mode UP counting
• Input Signal Contact, level, sensor
• Max. counting speed 30cps
• No-power memory 10 years min
• Power consumption 3VA max
• Indication method 8-segment 4-digital display
• Perforate dimensions 5110x26 10 mm
• Counting error? 1
• Reset time ?0.5s
• Power reset ?1s
• Dielectric strength 2000Vac, 50/60Hz for 1min
• Insulation resistance 100M? min. at 500 VDC
• Mounting Panel
• Matched sensor NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M30 4m Sn
• Operating temperature -5 to 45 °C
• Operating humidity 30-85% RH max, non-condensing
• Alias name JDM11 series counting relay, counter relay

Package Includes:

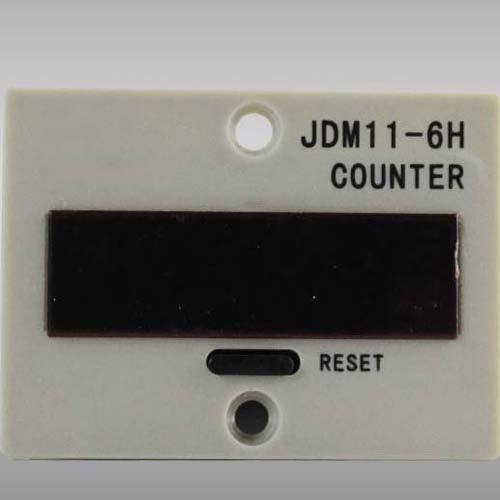

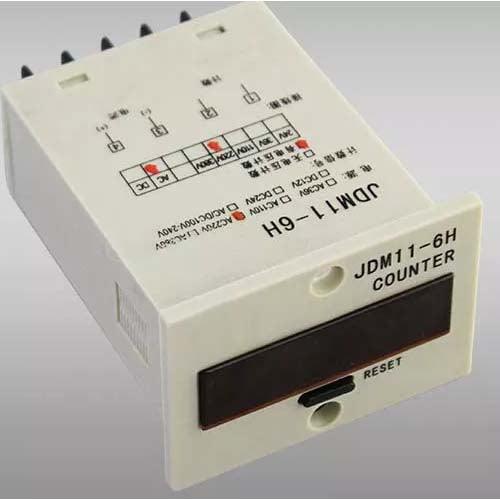

1 x JDM11-6H Digital Cumulative Counter
