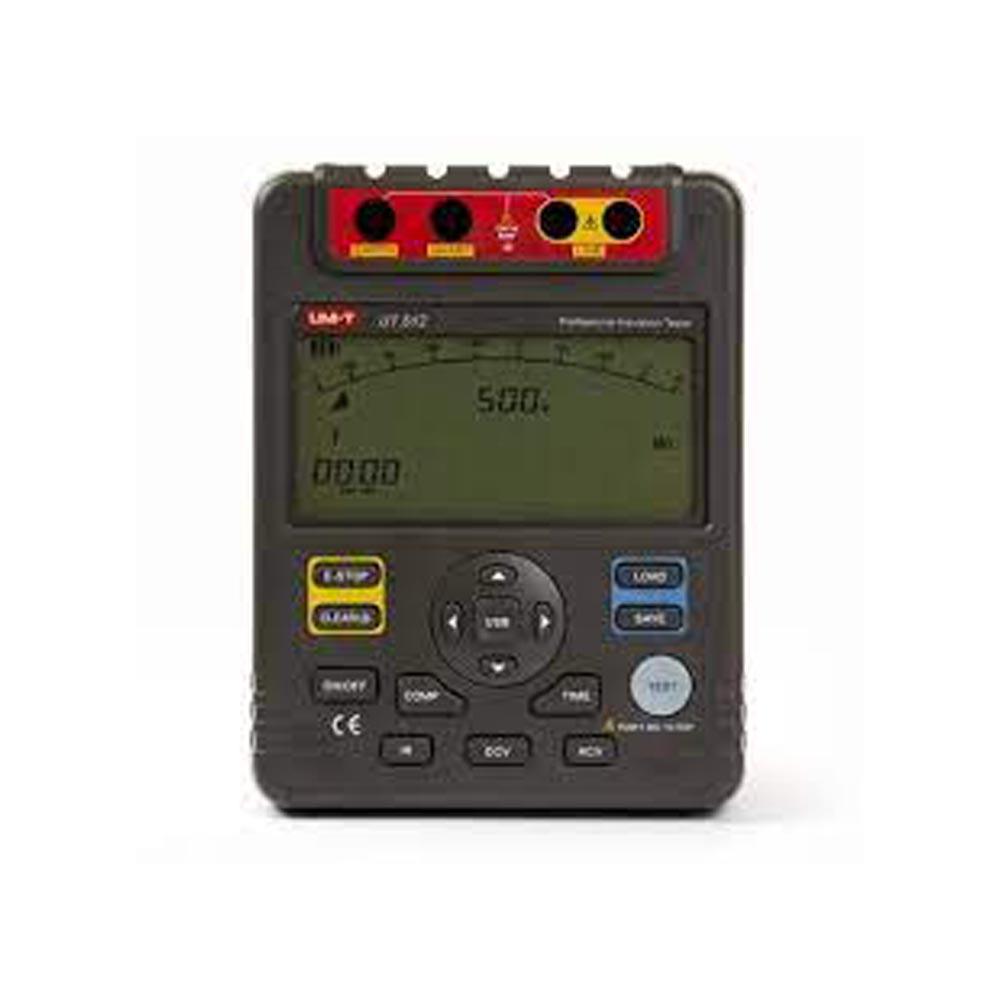

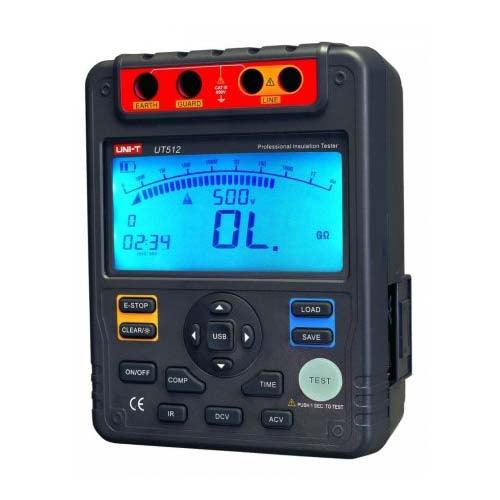

UNI-T UT512 is an insulation tester that is designed to measure the insulation resistance in the range from 0.5 MΩ to 100 000 MΩ with a test voltage of 500 to 2500 V.

Features:

• Large 9999 display with 30-segment analog bar graph.
• PI/DAR measurements.
• Comparison, upper and lower limit functions.
• Continuous measurement mode.
• Auto power off.
• 18-group data storage.
• Backlight.
• Auto current discharge and high-voltage output alarm.

Specifications:

• Display:9999 digits LCD, with backlight, 123 × 58 mm
• Insulation resistance measurement:Range 0.5 MΩ ~ 100 GΩ
• Accuracy ±(3%+5)
• Testing voltage Range:500 V / 1000 V / 1500 V / 2500 V
• Accuracy:0 ~ 20%
• DC voltage:Range 600 V
• Accuracy :±(2%+5)
• AC voltage:Range 600 V
• Accuracy ±(2%+5)
• Power:1.5 V alkaline battery (LR14) (8 pcs.)
• Dimensions :(H × W × D), mm 202 × 155 × 94
• Weight, kg:1.8 kg

Package Include:

1 x Insolation Tester UNI-T UT512 in Pakistan
