Inductive Proximity Sensor Switch – LJ18A3-8-Z/BY in Pakistan BR2582

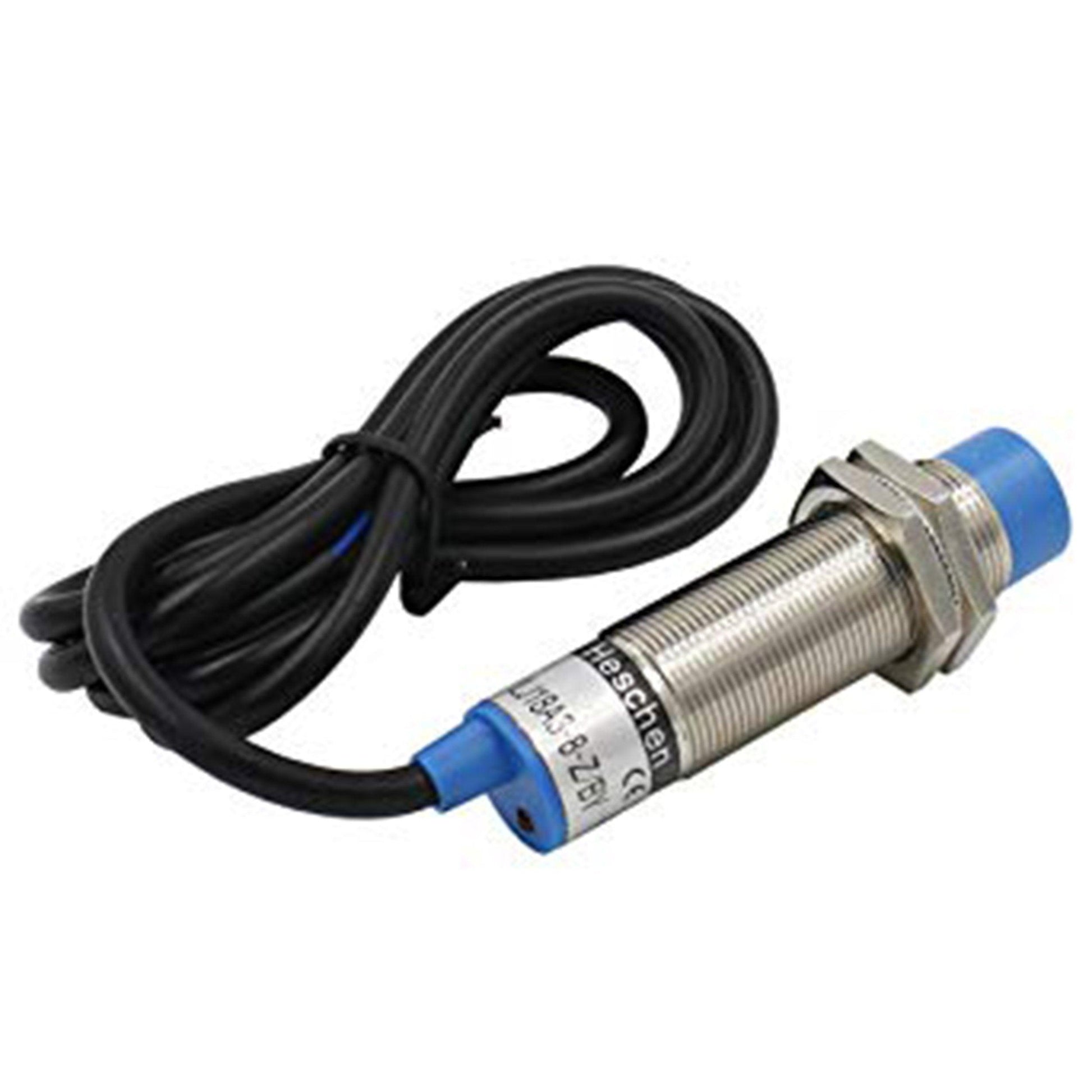

Inductive Proximity Sensor Switch – LJ18A3-8-Z/BY
This Inductive Proximity Sensor Switch – LJ18A3-8-Z/BX is a component widely used in the automatic control industry for detecting, controlling, and non-contact switching.
It’s widely used in the machine, paper making, light industry for limiting station, orientation taking count, speeding trial, etc.
Specifications:
Product Name
Inductive Proximity Switch
Model
LJ18A3-8-Z/BY
Wire Type
DC 3 Wire Type (Black, Brown, Blue)
Switch Appearance Type
Cylinder Type
Theory
Inductive Sensor
Output Type
PNP NO (Normally Open)
Diameter of Head
18mm
Detecting Distance
8mm
Supply Voltage
DC 6-36V
Current Output
300mA
Detect Object
Iron
Operating Temperature
-25°C to +55°C (Non-freezing Condition)
Size
7 x 3cm/2.8” x 1.2” (L*Max. Dia)
Cable Length
103cm / 40.55?
External Material
Plastic, Alloy
Net Weight
77g
Package Content
1 x Inductive Proximity Switch
Description
Inductive Proximity Sensor Switch – LJ18A3-8-Z/BY in Pakistan BR2582
Inductive Proximity Sensor Switch – LJ18A3-8-Z/BY
This Inductive Proximity Sensor Switch – LJ18A3-8-Z/BX is a component widely used in the automatic control industry for detecting, controlling, and non-contact switching.
It’s widely used in the machine, paper making, light industry for limiting station, orientation taking count, speeding trial, etc.
Specifications:
Product Name
Inductive Proximity Switch
Model
LJ18A3-8-Z/BY
Wire Type
DC 3 Wire Type (Black, Brown, Blue)
Switch Appearance Type
Cylinder Type
Theory
Inductive Sensor
Output Type
PNP NO (Normally Open)
Diameter of Head
18mm
Detecting Distance
8mm
Supply Voltage
DC 6-36V
Current Output
300mA
Detect Object
Iron
Operating Temperature
-25°C to +55°C (Non-freezing Condition)
Size
7 x 3cm/2.8” x 1.2” (L*Max. Dia)
Cable Length
103cm / 40.55?
External Material
Plastic, Alloy
Net Weight
77g
Package Content
1 x Inductive Proximity Switch
