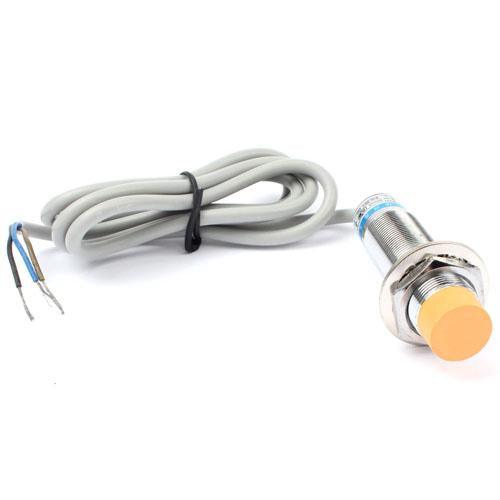

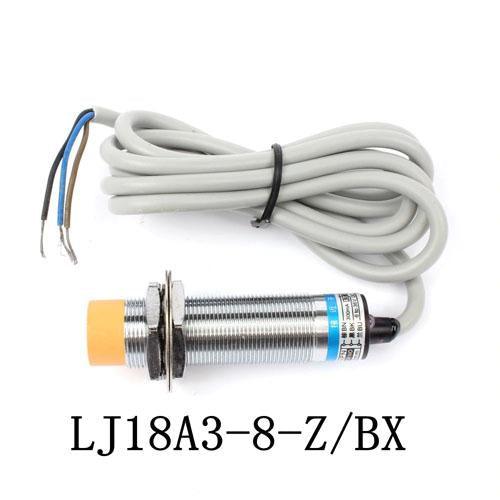

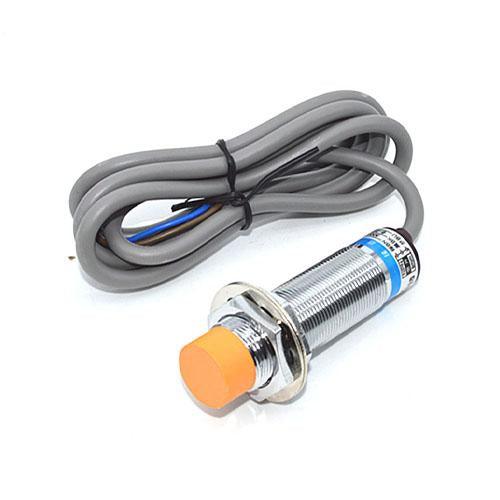

Inductive Proximity Sensor ALJ8A3-02-Z/BX 3 Wire NO, diameter 18mm
SKU:BR3074-B218
Couldn't load pickup availability
Inductive Proximity Sensor ALJ8A3-02-Z/BX 3 Wire NO, diameter 18mm in Pakistan BR3074
Description:
Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection circuit, amplifier circuit, the solution circuit and the output circuit. When the power is supplied to the switch, the oscillator in the high frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When there is a metal close to the switch detection surface, the eddy current inside the metal absorbs the energy of the alternating electromagnetic field in the oscillator.
Specification:
| TYPE: | NPN |
|---|---|
| DIAMETER: | ф8mm |
| NUMBER OF CONCLUSIONS: | 3 |
| TYPE OF OUTPUTS: | BUT |
| VOLUME / WEIGHT: | 49g |
| LENGTH: | 40mm |
| MATERIAL: | METAL |
| SPEED ACTION: | 2.5MS |
| POWER SUPPLY: | 6-36VDC |
| CABLE LENGTH: | 1.92M |
| INDICATION TYPE: | LED |
| ACTION DISTANCE: | 2mm |
Packages Include:
1 x Inductive Proximity Sensor ALJ8A3-02-Z/BX 3 Wire NO, diameter 18mm
Description
Inductive Proximity Sensor ALJ8A3-02-Z/BX 3 Wire NO, diameter 18mm in Pakistan BR3074
Description:
Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection circuit, amplifier circuit, the solution circuit and the output circuit. When the power is supplied to the switch, the oscillator in the high frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When there is a metal close to the switch detection surface, the eddy current inside the metal absorbs the energy of the alternating electromagnetic field in the oscillator.
Specification:
| TYPE: | NPN |
|---|---|
| DIAMETER: | ф8mm |
| NUMBER OF CONCLUSIONS: | 3 |
| TYPE OF OUTPUTS: | BUT |
| VOLUME / WEIGHT: | 49g |
| LENGTH: | 40mm |
| MATERIAL: | METAL |
| SPEED ACTION: | 2.5MS |
| POWER SUPPLY: | 6-36VDC |
| CABLE LENGTH: | 1.92M |
| INDICATION TYPE: | LED |
| ACTION DISTANCE: | 2mm |
Packages Include:
1 x Inductive Proximity Sensor ALJ8A3-02-Z/BX 3 Wire NO, diameter 18mm
