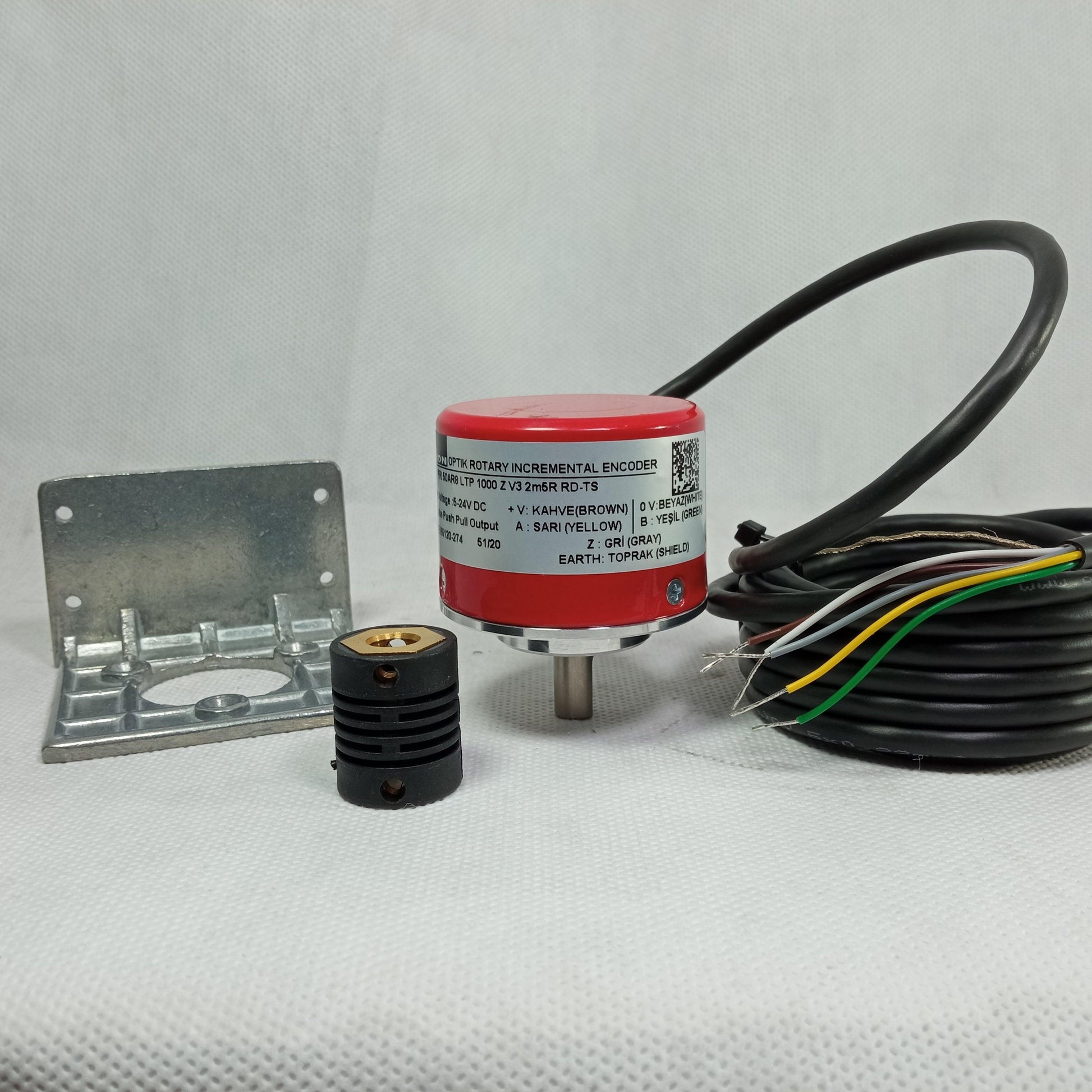

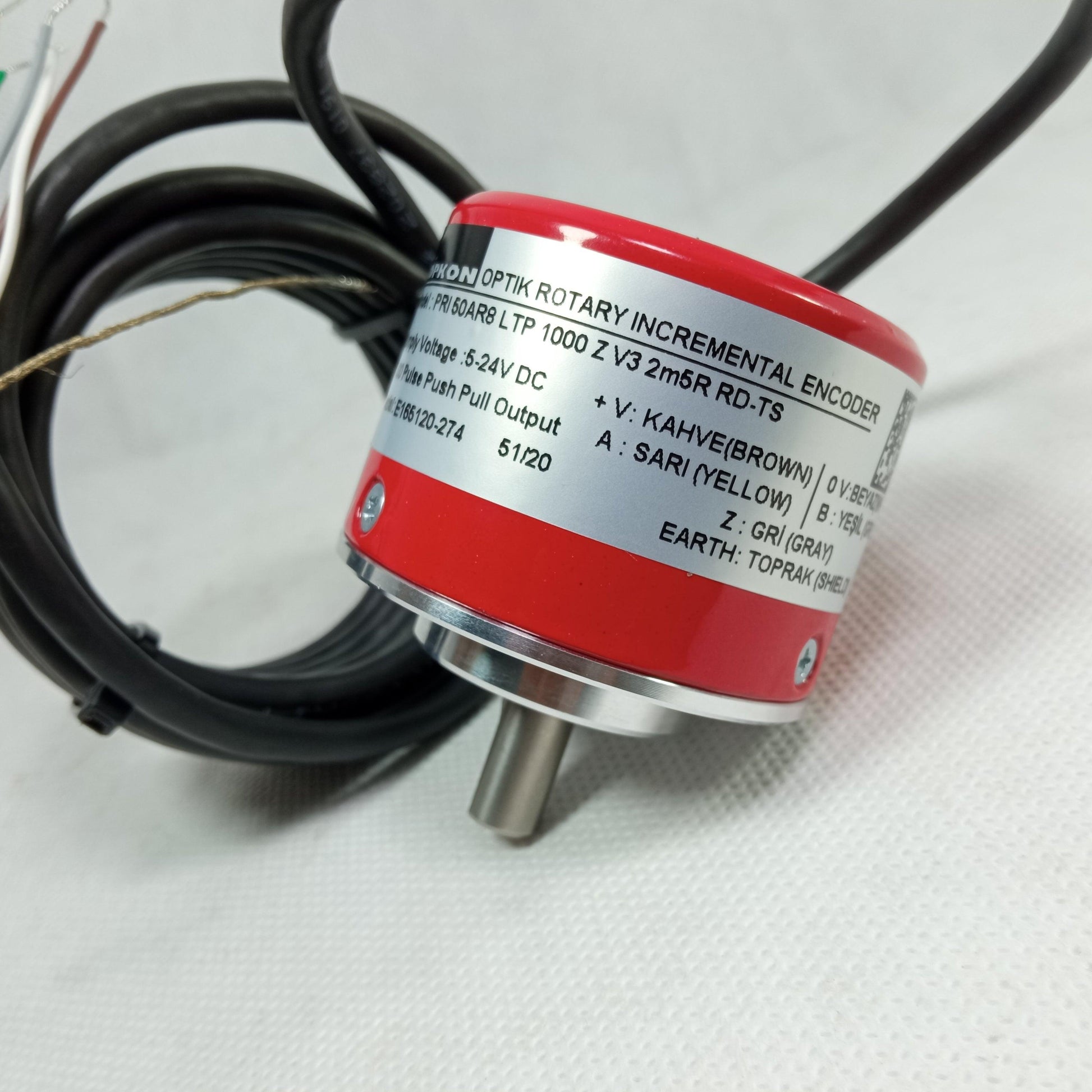

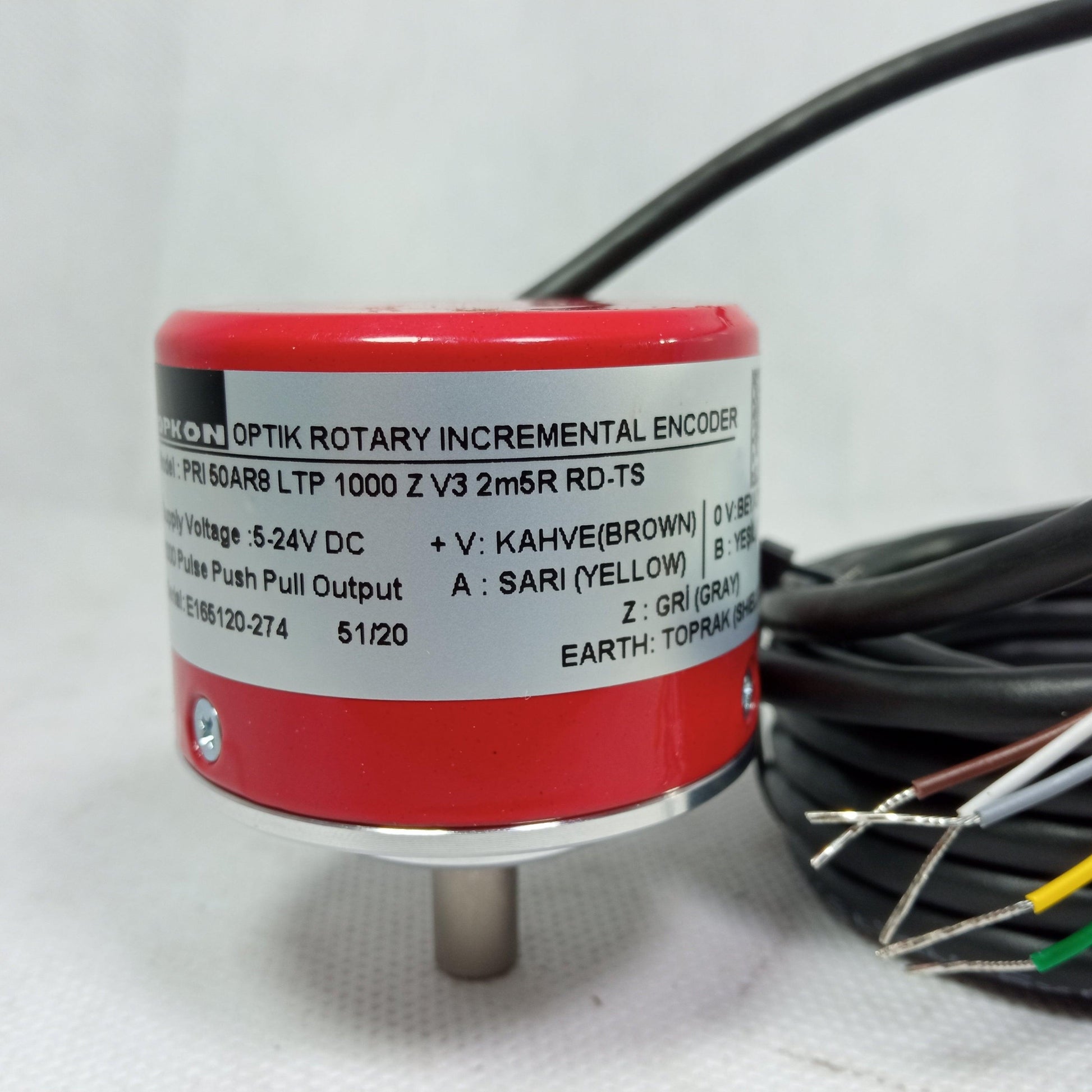

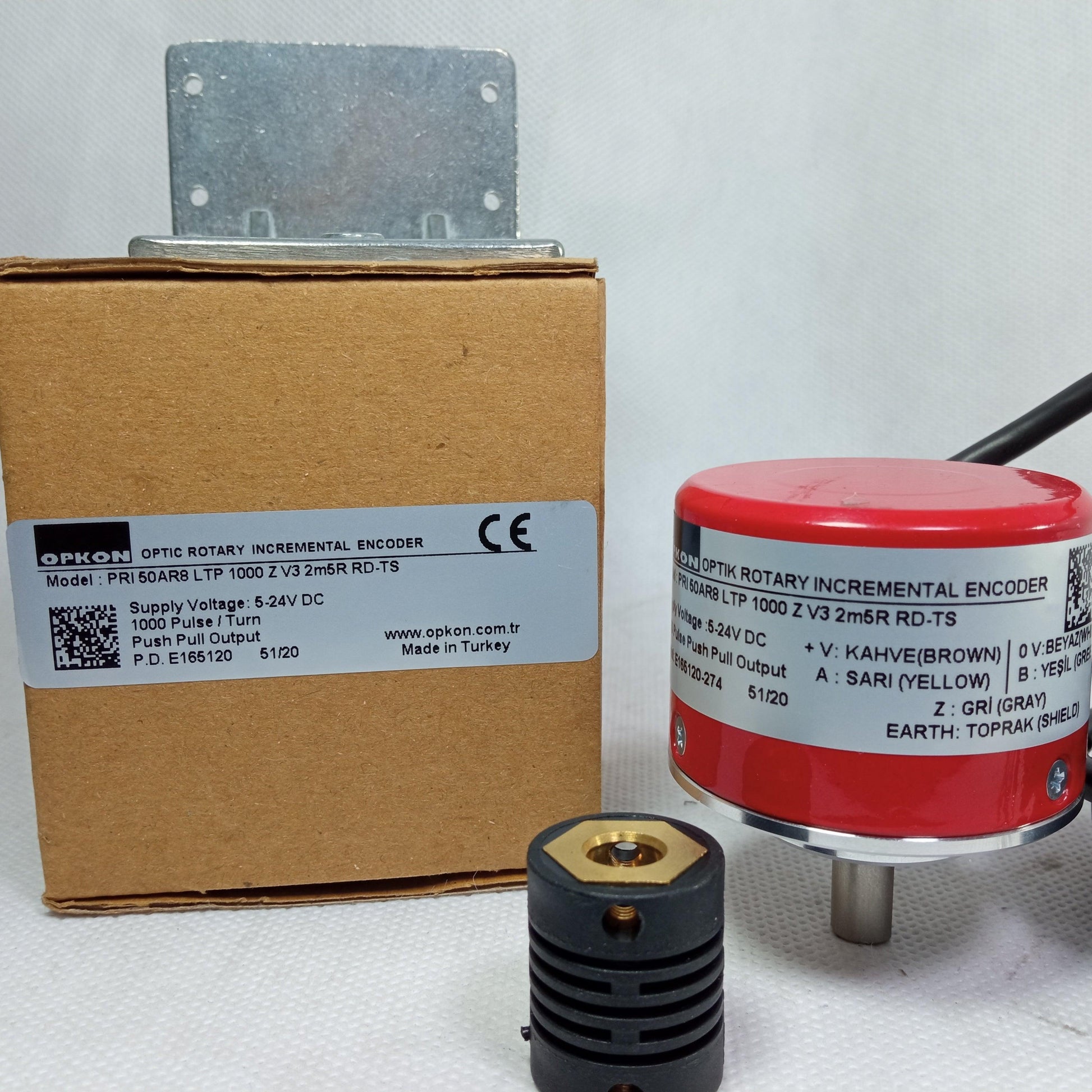

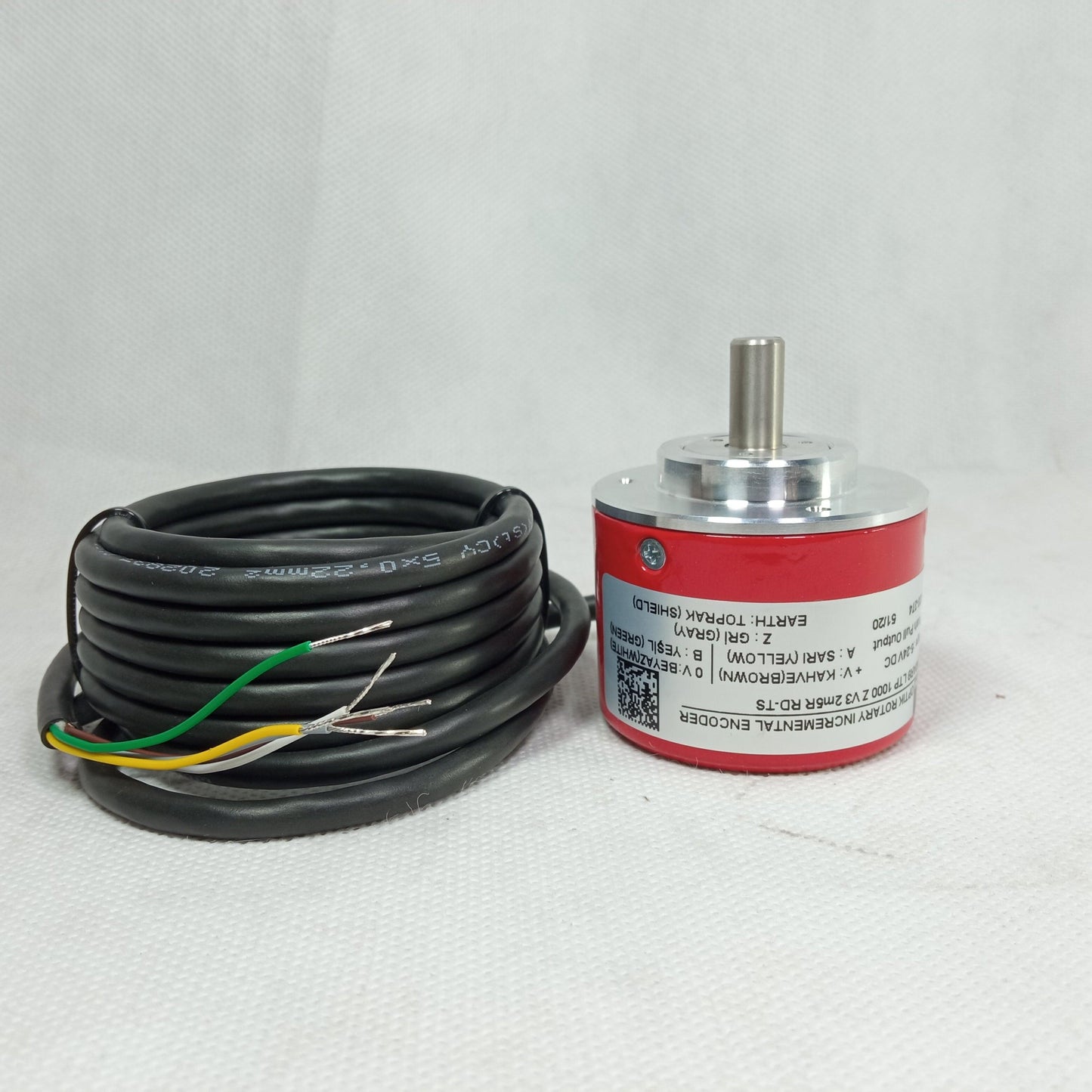

Incremental Rotary Encoder 1000ppr in Pakistan

3 total reviews

Regular price Rs 11,000
Regular price Rs 12,000 Sale price Rs 11,000
Sale Sold out
BR1207

A rotary encoder is a type of position sensor which is used for determining the angular position of a rotating shaft. It generates an electrical signal, either analog or digital, according to the rotational movement. This is a 1000 PPR resolution optical encoder with quadrature outputs for increment counting.

Specification:

  • Encoding Method: Incremental opkon encoder

  • Resolution P/R: 1000

  • Control Output (Output type): NPN open collector output

  • Max Force Radial: 30 N

  • Max Force Thrust: 20 N

  • IP Rating :  IP50

  • Power Supply Voltage: 5 VDC -5% to 24 VDC +15% (ripple (p-p): 5% Max.)

  • Max Rotation Frequency r/min: 6000 r/min

  • Height (mm): 40

Industryparts.pk Best Online Shopping website for Incremental Rotary Encoder 1000ppr in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

          1 x Incremental Rotary Encoder 1000ppr
