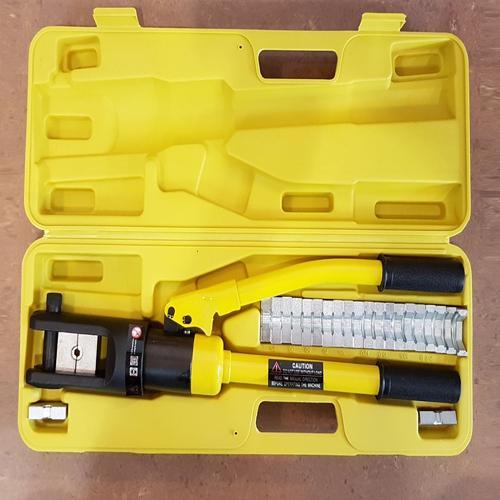

The HHY‑300A Hydraulic Crimping Tool delivers strong, repeatable hex crimps on copper and aluminum lugs from 16–300 mm², making it essential for solar, battery, inverter, and industrial wiring in Pakistan. Its manual two‑stage hydraulic pump produces up to 16 tons of force, achieving tight, gas‑tight joints with minimal effort. A rotating C‑type head improves access in tight panels, and the quick‑release valve lets you reset safely between crimps.
Clearly marked dies (16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²) snap in quickly so you can match the lug size every time. Long rubber‑grip handles add leverage and comfort for field or workshop use. Built‑in pressure relief protects the tool, while the hardened steel head and robust body ensure long life. A rugged carry case keeps everything organized for site work.
Used correctly, HHY‑300A reduces joint resistance, heat, and rework. Ideal for battery cables, MCC/DB terminations, generator/UPS links, busbar drops, and heavy automotive or marine cables. Strip the cable, choose the correct die, crimp once or twice depending on lug length, and finish with heat‑shrink for a professional seal. Fast nationwide delivery to Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and beyond.
https://youtube.com/shorts/u7siRIJD8tw?
Features:
- 16‑ton manual hydraulic output, two‑stage pump
- Crimp range 16–300 mm² with hex dies included
- Rotating C‑type head, quick‑release valve
- Hardened steel jaws; long rubber‑grip handles
- Rugged carry case for organized transport
Specifications:
- Place of Origin: China
- Model Number: HHY-300A
- Type: Combination Pliers
- Application: Crimping
- Function: Crimping
- Certification: CE
- Usage: Building constructure
- Output::9T
- Ram stroke:18mm
- Crimping range:10-300mm2
- Crimping dies:16 25 35 5 70 95 120 150 175 240 300MM2
- G.W.:6.5KGS
- Material: Stainless Steel
Uses:
- Solar/inverter and battery cable terminations
- MCC/DB and industrial control panel wiring
- Generator/UPS links and busbar drops
- Heavy automotive, marine, and RV cables
- MRO, field service, and workshop builds
Industryparts. pk Shopping website for HHY-300A in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Hydraulic Crimping Tool HHY-300A
