HYCRU8S‑A1 Single‑Phase Voltage Monitoring Relay in Pakistan

HYCRU8S‑A1 Voltage Monitoring Relay Pakistan

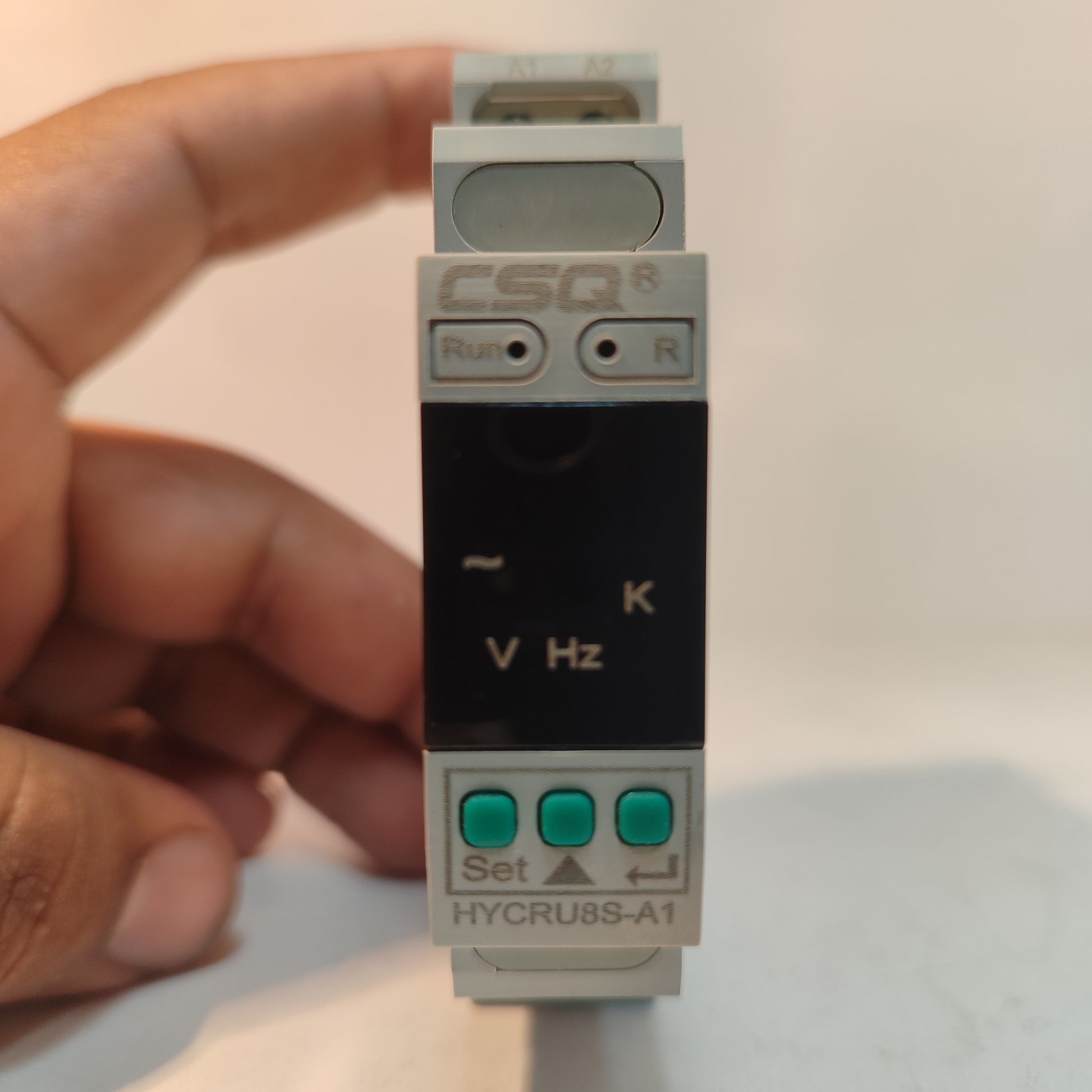

Protect single‑phase equipment from bad voltage with the CSQ HYCRU8S‑A1 voltage monitoring relay. It continuously checks mains level and trips on high or low voltage before damage happens. Use it to interlock contactors, compressors, pumps, and control boards.

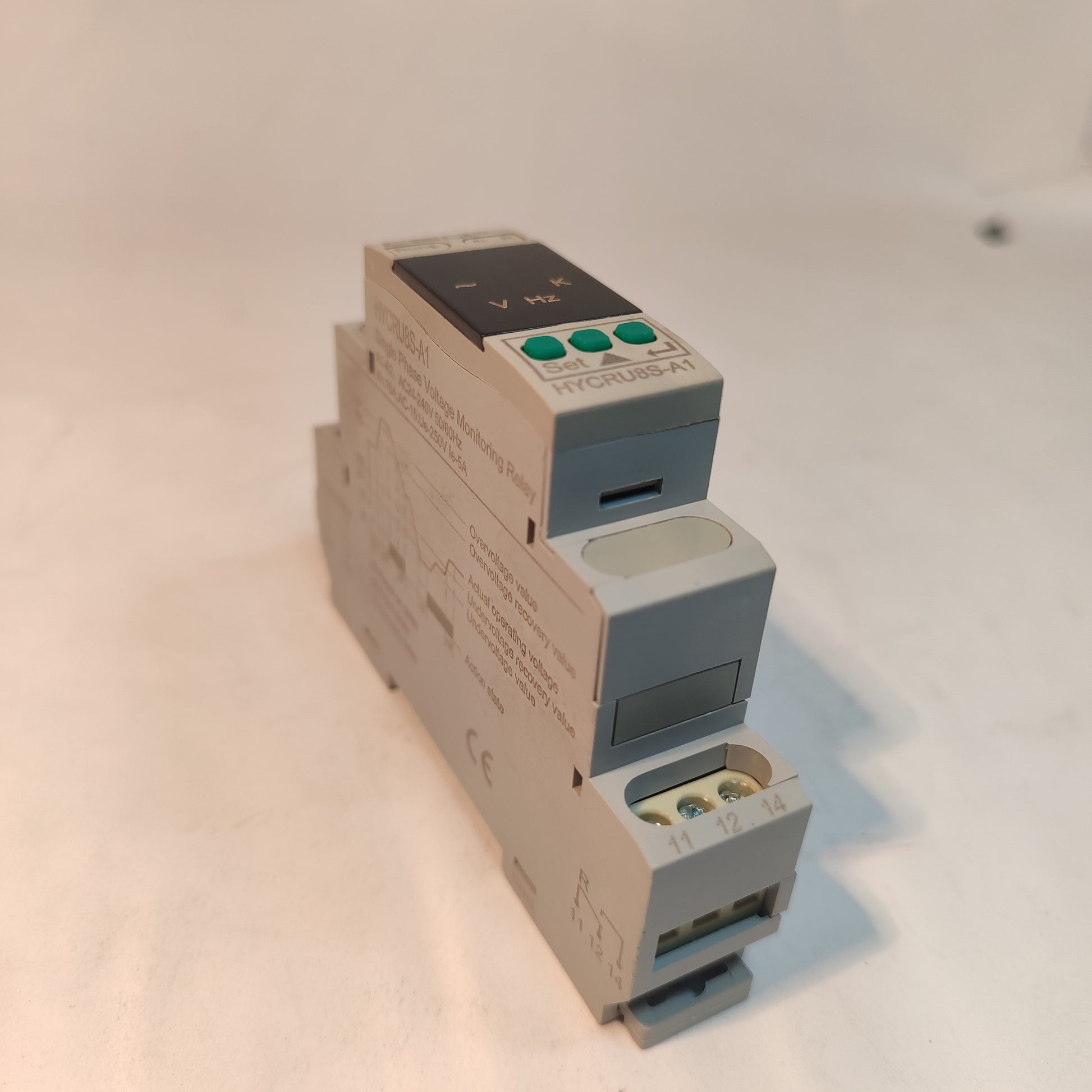

HYCRU8S‑A1 is self‑powered from AC 24–240V, 50/60Hz. Set over‑voltage, under‑voltage, and recovery thresholds with up/down keys. Adjustable delays prevent nuisance trips: power‑on, action, and recovery. The output is a SPDT relay (terminals 11‑12‑14) rated Ith 16A, AC‑15 250V/5A for control circuits. DIN‑rail 35mm housing, screw terminals, and front indicators simplify wiring, testing, and fault diagnosis in new or retrofit panels.

Features of HYCRU8S‑A1 Voltage Monitoring Relay Pakistan:

• Adjustable over/under‑voltage and recovery thresholds
• Wide supply: AC 24–240V, 50/60Hz (self‑powered)

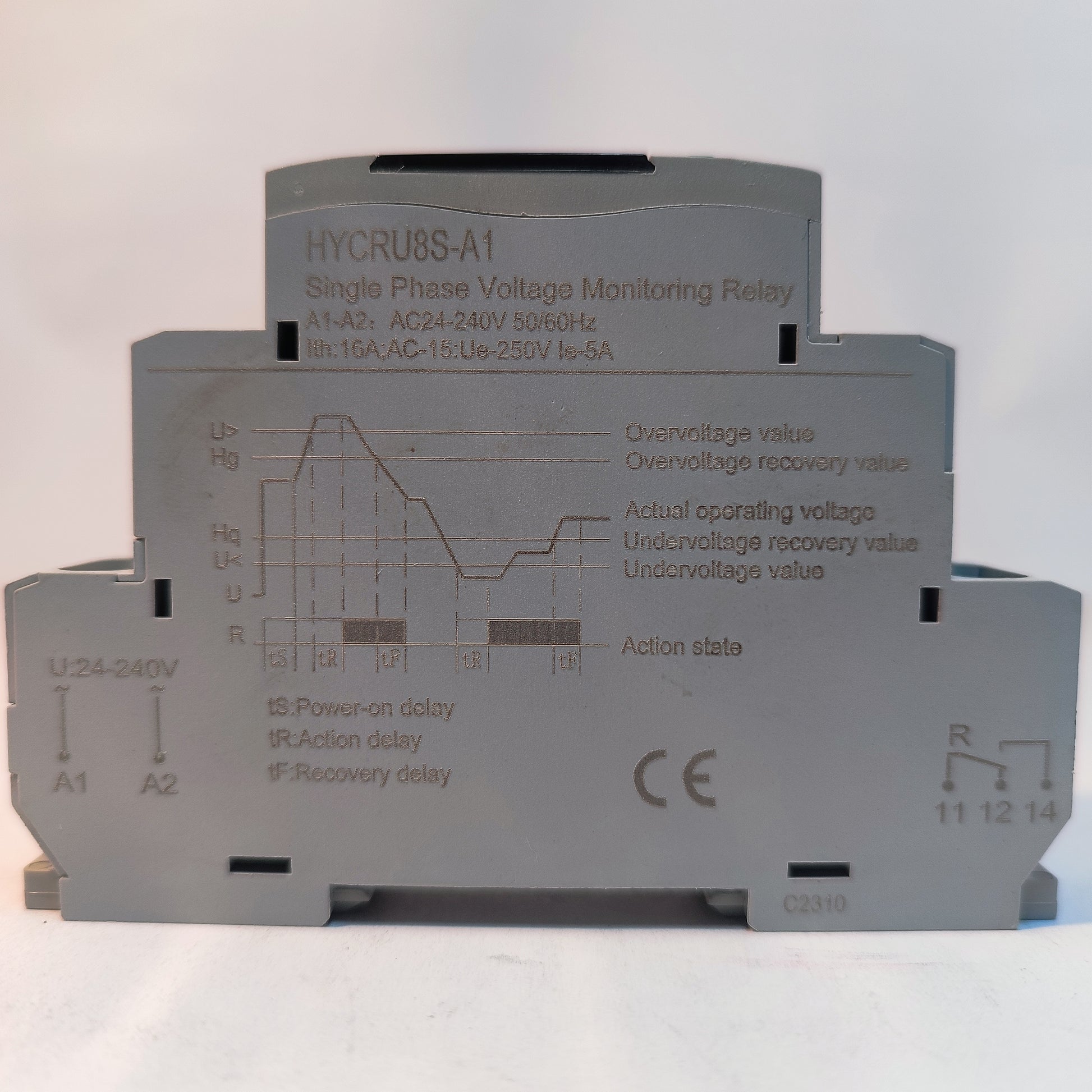

• Power‑on, action, and recovery delays
• SPDT output relay with status LEDs
• Compact 35mm DIN‑rail design, easy setup

Specifications:

• Model/Brand: CSQ HYCRU8S‑A1
• Supply: 24–240VAC, 50/60Hz

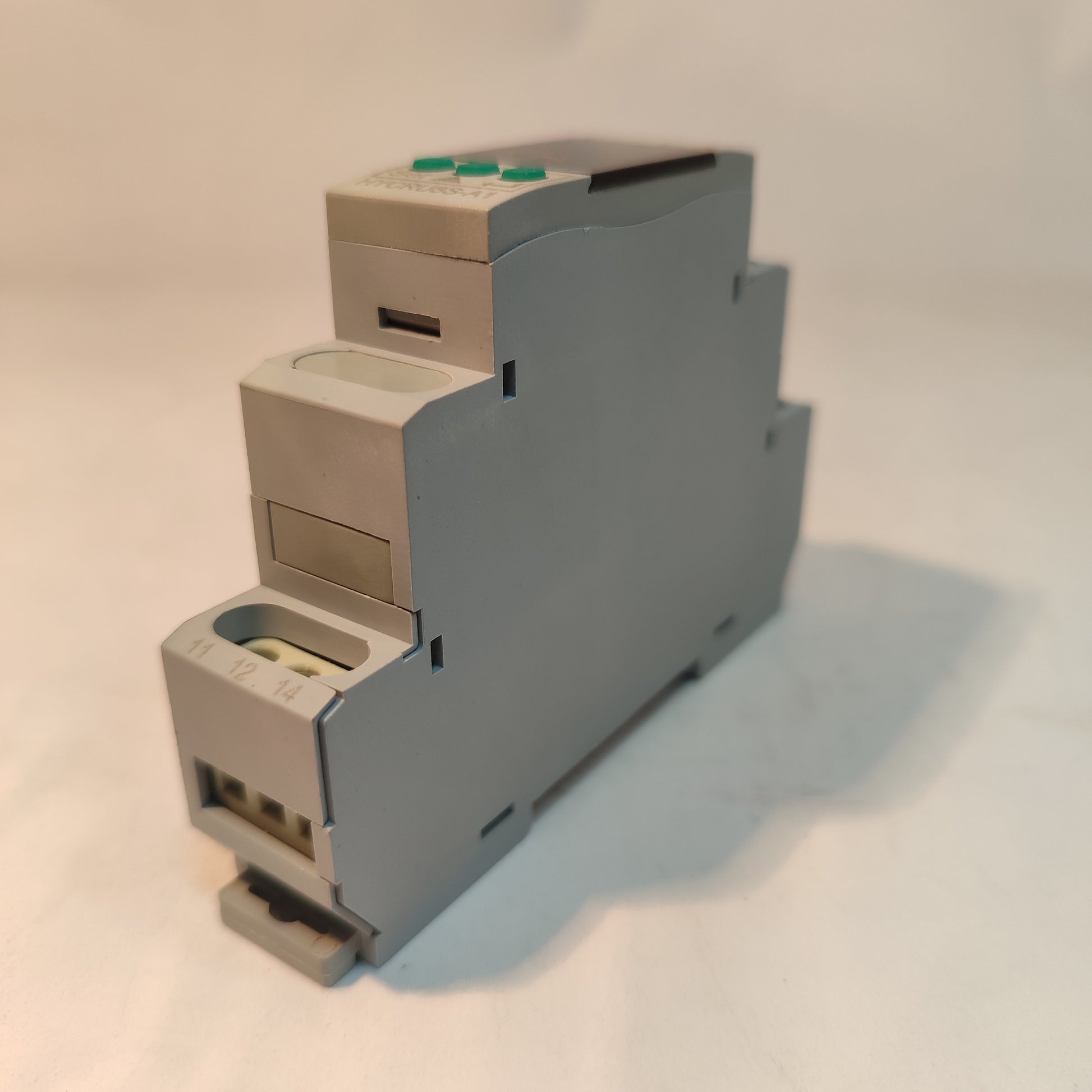

• Output Contact: 1× SPDT (11‑12‑14); Ith 16A, AC‑15 250V/5A
• Functions: Over/under‑voltage, recovery value, adjustable delays
• Mounting: DIN‑rail 35mm; terminals A1‑A2 supply

Uses:

• Fridges, dispensers, and chillers
• Water pumps and small compressors
• HVAC and vending machines
• Generator/UPS changeover protection
• OEM control panels and retrofits
