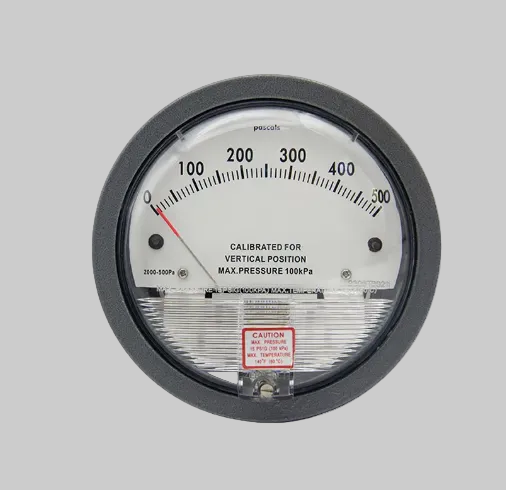

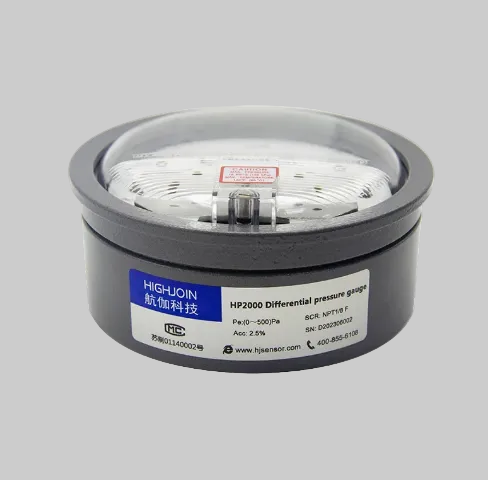

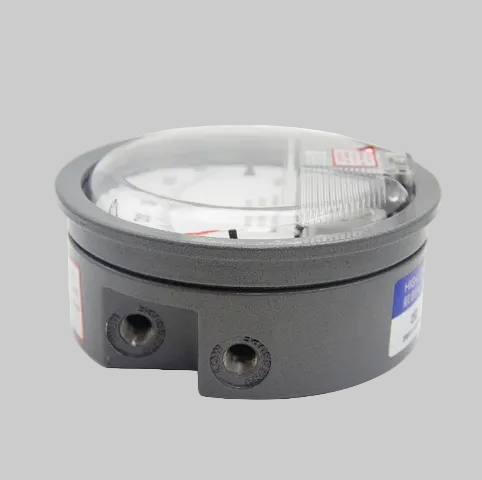

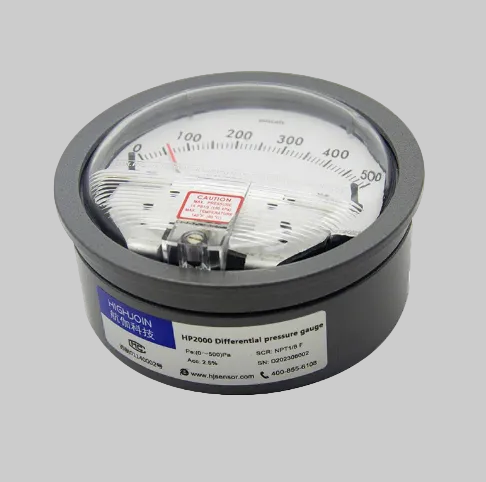

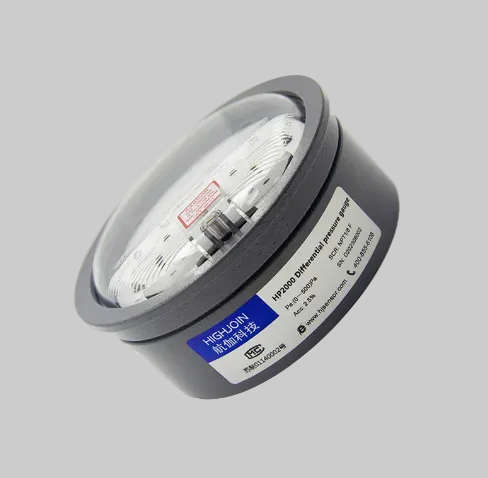

HIGHJOIN HP2000 Differential Pressure Gauge in Pakistan

The HIGHJOIN HP2000 Differential Pressure Gauge is a high-precision instrument designed to measure differential, positive, and negative pressure in air and other non-corrosive gases. It is commonly used in HVAC systems, clean rooms, ventilation ducts, air filters, and industrial process control applications. The gauge features a magnetic movement mechanism that ensures accurate and stable measurements without excessive wear. Its rugged aluminum construction provides durability in demanding environments, while the large dial allows easy reading. The HP2000 is suitable for monitoring pressure differences across filters, fans, and other airflow systems.

Features:

• Measures differential, positive, and negative pressure with high accuracy.
• Frictionless magnetic movement ensures smooth and reliable operation.
• Durable die-cast aluminum housing provides long service life.
• Large and clear dial face enables easy reading from a distance.
• Resistant to shock, vibration, and pressure fluctuations.
• Available in various pressure ranges to suit different applications.
• Requires minimal maintenance due to its mechanical design.
• Suitable for continuous monitoring of low-pressure systems.
• Compact and lightweight construction allows easy installation.
• Designed for use with air and other compatible non-corrosive gases.

Specifications:

• Model: HP2000 Differential Pressure Gauge.
• Measurement Type: Differential, positive, and negative pressure.
• Accuracy: Up to ±2% of full-scale value.
• Dial Diameter: Approximately 4 inches (100 mm).
• Housing Material: Die-cast aluminum.
• Cover Material: Transparent acrylic lens.
• Connection Size: 1/8" NPT pressure connections.
• Operating Temperature: -7°C to 60°C.
• Mounting Position: Vertical installation recommended.
• Suitable Media: Air and non-combustible, non-corrosive gases.

Uses:

• Monitoring pressure drop across air filters in HVAC systems.
• Measuring airflow pressure in ventilation ducts and air handling units.
• Monitoring room pressure in clean rooms and laboratories.
• Checking the performance of fans, blowers, and exhaust systems.
• Measuring pressure differences in industrial process control applications.

Package includes:

1x  HIGHJOIN HP2000 Differential Pressure Gauge

Industryparts.pk is the Online Shopping website for HIGHJOIN HP2000 Differential Pressure Gauge. Here you get a HIGHJOIN HP2000 Differential Pressure Gauge at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
