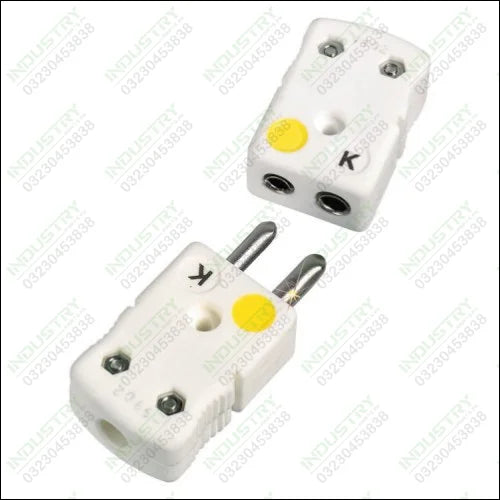

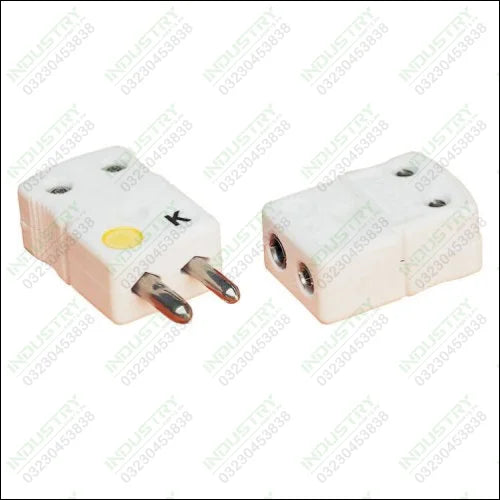

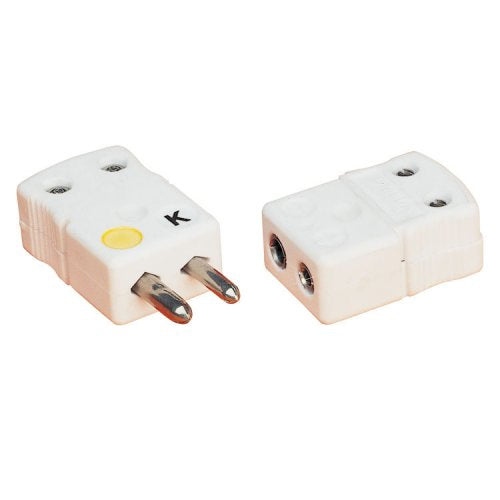

High Temperature Ceramic Connector Standard Size in Pakistan

Ceramic thermocouple connectors designed for long-term use where economy is a factor, NHXH hollow-pin thermocouple plugs are ideal for high-temperature applications. NHXH connectors are permanently dot color-coded to conform to IEC or ANSI standards. For applications such as high vacuum furnaces where contamination would adversely affect the process, UHXH connectors are shipped with a removable coded dot. Temperature is limited by the thermocouple alloys used, types K and J can be used at temperatures up to 650°C, and type T can be used accurately over its entire range of 390°C. The compensating alloys limit noble metal types to ambient use of 260°C. No damage will be done by exposure to higher temperatures, but accuracies may exceed error limits if a temperature gradient exists across the connector.

Specifications:

• Heavy Duty Ceramic Body for use up to 650°C
• Plugs fitted with solid thermocouple pins
• All connectors supplied colored white with IEC colored dot on the body

Package Includes:

1 x High Temperature Ceramic Connector
