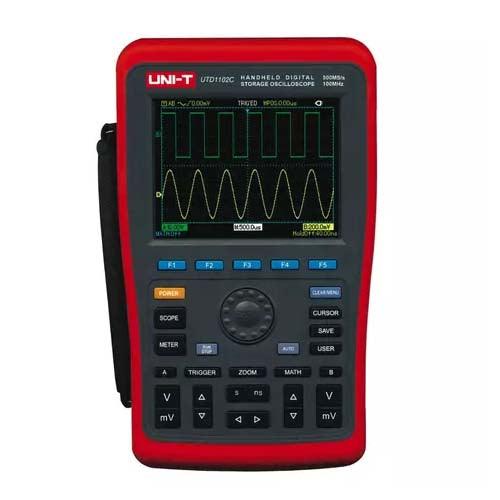

Handheld Digital Oscilloscope UNI-T UTD1102C in Pakistan

SKU:BR3296

Regular price Rs 129,800
Regular price Rs 0 Sale price Rs 129,800
Sale Sold out

UNI-T UTD1102C handheld digital oscilloscope is a dual-channel oscilloscope with 100 MHz bandwidth, 500 MS/s sample rate, and 2 × 512 K memory length. There is a USB host for external devices connection. UNI-T UTD1102C digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity, and performing diode and continuity checks.

Features:

  • Dual-channel bandwidth 100 MHz
  • Sampling rate 500 MS/s
  • The equivalent sampling rate is 25 GS/s
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT
  • Multimeter functions
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
  • Continuity buzzer
  • Diode check
  • Internal memory 2 × 512 k
  • Two switchable probes
  • Trend diagram
  • 5.7” color LCD screen
  • Built-in USB host

Specifications:

  • Bandwidth 100 MHz
  • Rise time ≤ 3.5 ns
  • Real-time sampling rate 500 MS/s
  • Equivalent sampling range 25 GS/s
  • Vertical sensitivity 5 mV ~ 50 V/div
  • Record length (max) 2 × 512 k
  • Scan time base 5 ns ~ 50 s/div
  • Trigger type Edge, Pulse, Video and Alternate
  • Automatic waveform measurements 27
  • Frequency counter 6 digits frequency counter
  • Maths functions Add, Subtract, Multiply, Divide, FFT
  • Multimeter
  • DC voltage 600 mV / 6 V / 60 V / 600 V / 1000 V: ±(1% + 5 digits)
  • AC voltage
  • (45 Hz ~ 400 Hz) 600 mV / 6 V / 60 V / 600 V / 700 V:
  • ± (1.2% + 5 digits), frequency: <200 Hz
  • ± (1.5% + 5 digits), frequency: ≥200 Hz
  • DC current 6 mA / 60 mA / 600 mA: ±(1.2% + 5 digits)
  • 6 A: ±(1.5% + 5 digits)
  • AC current
  • (45 Hz ~ 400 Hz) 6 mA / 60 mA / 600 mA: ±(2% + 5 digits)
  • 6 A: ±(2.5% + 5 digits)
  • Resistance 600 Ω / 6 MΩ / 60 MΩ : ±(1.5% + 5 digits)
  • 6 kΩ / 60 kΩ / 600 kΩ : ±(1.2% + 5 digits)
  • Capacitance 6 nF / 6 mF: ±(5% + 10 digits)
  • 60 nF / 600 nF / 6 μF / 60 μF / 600 μF: ±(4% + 5 digits)
  • General characteristics
  • Max.display 5999
  • LCD size 5.7"
  • Ports USB host
  • Power 100 - 240 V, 50/60 Hz, 1.5 A
  • Dimensions 268 × 168 × 60 mm
  • Weight 1.8 kg

Package Includes:

1 x Handheld Digital Oscilloscope UNI-T UTD1102C

Industryparts.pk is the Best Online Shopping website for Handheld Digital Oscilloscope UNI-T UTD1102C. Here you get Handheld Digital Oscilloscope UNI-T UTD1102C at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
