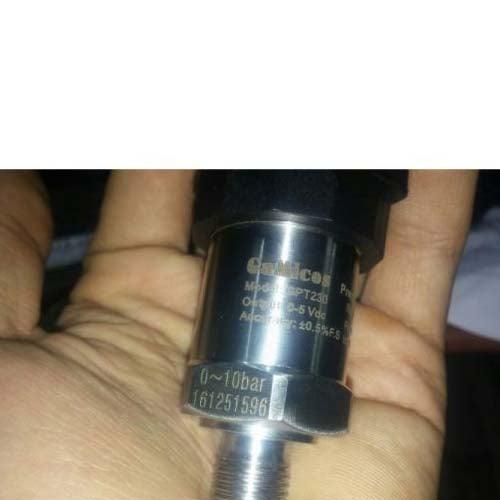

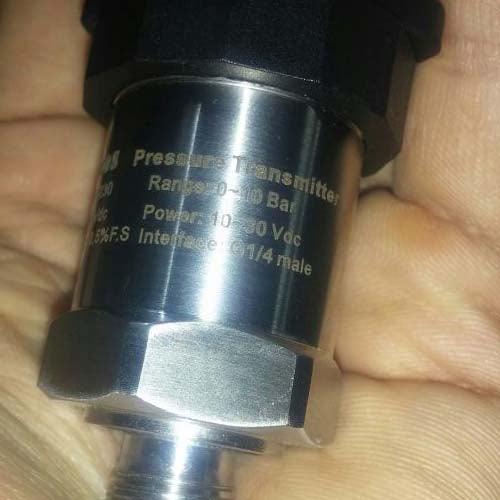

GPT230 Hydraulic 10bar 0 to 5v Pressure Sensor

1 total reviews

Regular price Rs 9,500
Regular price Rs 9,800 Sale price Rs 9,500
Sale Sold out
BR1118

GPT230 Hydraulic 10bar 0 to 5v Pressure Sensor in pakistan BR1118




Applications:


Process control system  Compressor  Building Water supply  Hydraulic control  Air conditioner  Automotive engine  Automatic detection system  Hydraulic Pressure station  Refrigerator  Features  ±0.5%FS,±1%FS accuracy  high stability , high reliability  ceramic sensor from German  digital calibration  multiple connectors and ports  CE compliant  ROHS compliant Applications  Process control system  Compressor  Building Water supply  Hydraulic control  Air conditioner  Automotive engine  Automatic detection system  Hydraulic Pressure station


Refrigerator Product Parameter:




NameData
Pressure range0~10
pressure typegauge (G )
Overload pressure150%FS
Accuracy0.5%FS(typ.)                            ±1.0%F.S (max.)
long-term stability0.5%FS/year(typ.)                    1.0%FS/year(max.)
 temp.coefficient of zero  ±0.05%FS/°C(typ.)                  ±0.1%FS/°C(max.)
 temp.coefficient of span   ±0.05%FS/°C(typ.)                  ±0.1%FS/°C(max.)
Operating temperature-40°C~100°C
compensate temperature-10°C~80°C
  storage temperature range  -40°C~100°C
Medium compatibilityAll corrosive medium compatible with 1Cr18Ni9Ti
Output signal4~20mA 0.5~4.5V
Power supply10~30Vdc5V(ratio)
Load resistanceR?(U-15)/0.02 (for 4/20mA)R>100k?(for votage output)
Insulating resistance>100M ?@100V
electrical interfacepackard,DIN43650,plug connection,cable connection,waterproof outlet
pressure interfaceM20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request)
material of pressure membraneceramic
material of housing  1Cr18Ni9Ti stainless steel
response time(10%~90%)?10ms
shock/impact  10gRMS,(20~2000)Hz / 100g,11ms
protection   IP65
certification  CE ,Ex ,ROHS
  EMC  EMI:EN50081-1/-2, EMS: EN50082-2
  Dimensions(in mm)    1118

Description

GPT230 Hydraulic 10bar 0 to 5v Pressure Sensor in pakistan BR1118




Applications:


Process control system  Compressor  Building Water supply  Hydraulic control  Air conditioner  Automotive engine  Automatic detection system  Hydraulic Pressure station  Refrigerator  Features  ±0.5%FS,±1%FS accuracy  high stability , high reliability  ceramic sensor from German  digital calibration  multiple connectors and ports  CE compliant  ROHS compliant Applications  Process control system  Compressor  Building Water supply  Hydraulic control  Air conditioner  Automotive engine  Automatic detection system  Hydraulic Pressure station


Refrigerator Product Parameter:




NameData
Pressure range0~10
pressure typegauge (G )
Overload pressure150%FS
Accuracy0.5%FS(typ.)                            ±1.0%F.S (max.)
long-term stability0.5%FS/year(typ.)                    1.0%FS/year(max.)
 temp.coefficient of zero  ±0.05%FS/°C(typ.)                  ±0.1%FS/°C(max.)
 temp.coefficient of span   ±0.05%FS/°C(typ.)                  ±0.1%FS/°C(max.)
Operating temperature-40°C~100°C
compensate temperature-10°C~80°C
  storage temperature range  -40°C~100°C
Medium compatibilityAll corrosive medium compatible with 1Cr18Ni9Ti
Output signal4~20mA 0.5~4.5V
Power supply10~30Vdc5V(ratio)
Load resistanceR?(U-15)/0.02 (for 4/20mA)R>100k?(for votage output)
Insulating resistance>100M ?@100V
electrical interfacepackard,DIN43650,plug connection,cable connection,waterproof outlet
pressure interfaceM20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT,7/16-20UNF (customer request)
material of pressure membraneceramic
material of housing  1Cr18Ni9Ti stainless steel
response time(10%~90%)?10ms
shock/impact  10gRMS,(20~2000)Hz / 100g,11ms
protection   IP65
certification  CE ,Ex ,ROHS
  EMC  EMI:EN50081-1/-2, EMS: EN50082-2
  Dimensions(in mm)    1118
