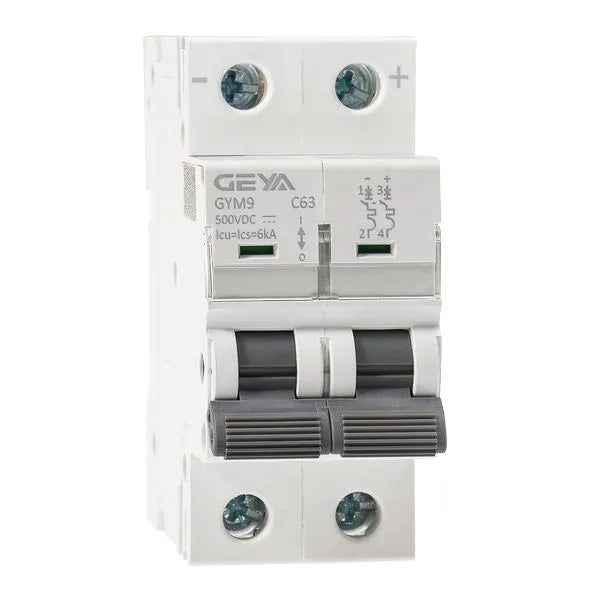

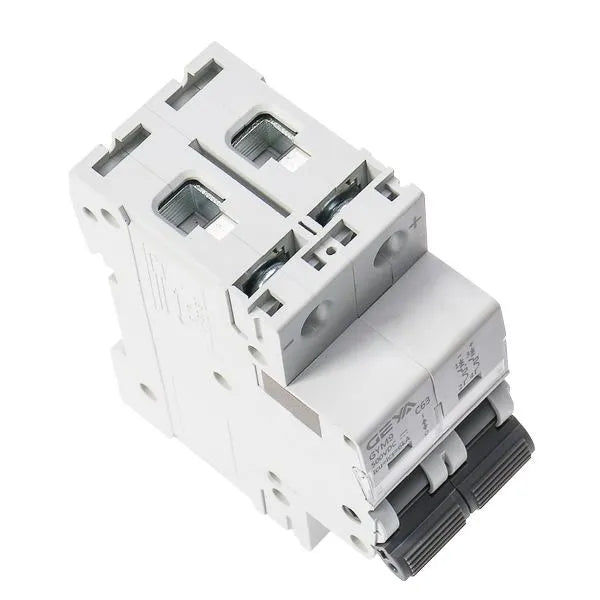

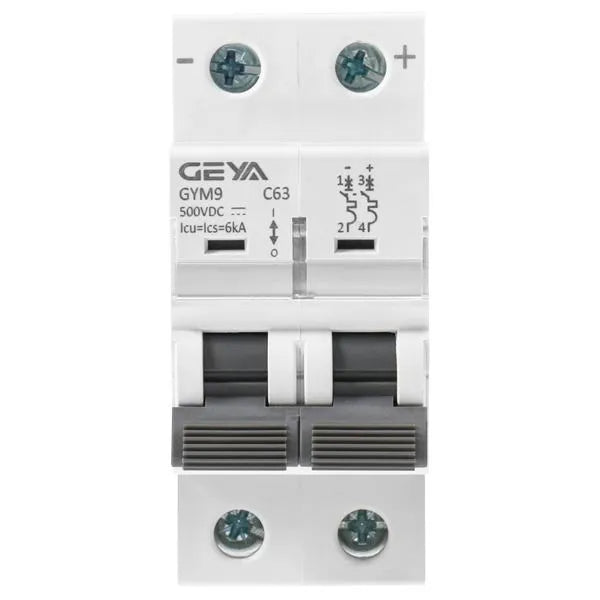

The GEYA GYM9-DC-2P is a miniature circuit breaker (MCB) designed for direct current (DC) electrical systems. It's a 2-pole breaker, meaning it interrupts two DC circuits simultaneously. It's rated for a breaking capacity of 6kA (kiloamperes) and a maximum voltage of 500VDC. This MCB is available in different amperage ratings, including 16A, 20A, 32A, and 63A, allowing for selection based on the specific circuit requirements. Its purpose is to protect DC circuits from overcurrents and short circuits, preventing damage to equipment and reducing the risk of fire. It's commonly used in solar photovoltaic (PV) systems, battery systems, and other DC applications.
Features of GEYA GYM9-DC-2P 6KA 500VDC:
- DC Circuit Protection: Specifically designed for direct current applications.
- 2-Pole Configuration: Interrupts two DC circuits simultaneously.
- High Breaking Capacity (6kA): Safely interrupts high fault currents.
- 500VDC Rating: Suitable for high-voltage DC systems.
- Multiple Ampere Ratings: Available in 16A, 20A, 32A, and 63A.
- DIN Rail Mounting: Easy installation in standard electrical panels.
- Thermal-Magnetic Trip: Provides overcurrent and short-circuit protection.
Specifications of GEYA GYM9-DC-2P 6KA 500VDC:
- Model: GEYA GYM9-DC-2P
- Poles: 2P
- Rated Voltage: 500VDC
- Breaking Capacity: 6kA
- Rated Current: 16A, 20A, 32A, 63A (available options)
- Mounting: DIN rail
- Trip Curve: (Often a "C" or "D" curve, check manufacturer's data)
- Standards Compliance: (e.g., IEC 60947-2)
Uses:
- Solar Photovoltaic (PV) Systems: Protecting DC circuits in solar installations.
- Battery Systems: Protecting battery banks and connected equipment.
- DC Power Distribution: Protecting DC circuits in industrial and commercial applications.
- Electric Vehicle (EV) Charging: Protecting DC charging circuits.
- Telecommunications: Protecting DC power supplies and equipment.
Benefits:
- Reliable DC Protection: Ensures safe operation of DC circuits.
- Equipment Protection: Prevents damage to connected devices.
- Fire Prevention: Reduces the risk of electrical fires.
- Easy Installation: DIN rail mounting simplifies setup.
- Flexibility: Multiple ampere ratings to suit various applications.
- High Breaking Capacity: Provides robust protection against high fault currents.
Package includes:
- 1x GEYA GYM9-DC-2P 6KA 500VDC
Industryparts.pk is the Best Online Shopping website for GEYA GYM9-DC-2P 6KA 500VDC. Here you get GEYA GYM9-DC-2P 6KA 500VDC at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
| AMP |
16A, 20A, 32A, 63A |
|---|
