The GB280Y Digital Multi-Function Power Meter is a smart and reliable device designed for monitoring three-phase electrical systems. It accurately measures voltage, current, power, energy, frequency, and power factor, making it perfect for factories, buildings, and energy management systems. The meter features a clear LCD display and supports RS485 communication with MODBUS-RTU, allowing easy integration into monitoring networks. With adjustable voltage and current ratios, it fits various setups and retains settings even after power loss. Easy to install and use, the GB280Y is ideal for anyone needing real-time, accurate, and efficient power monitoring.

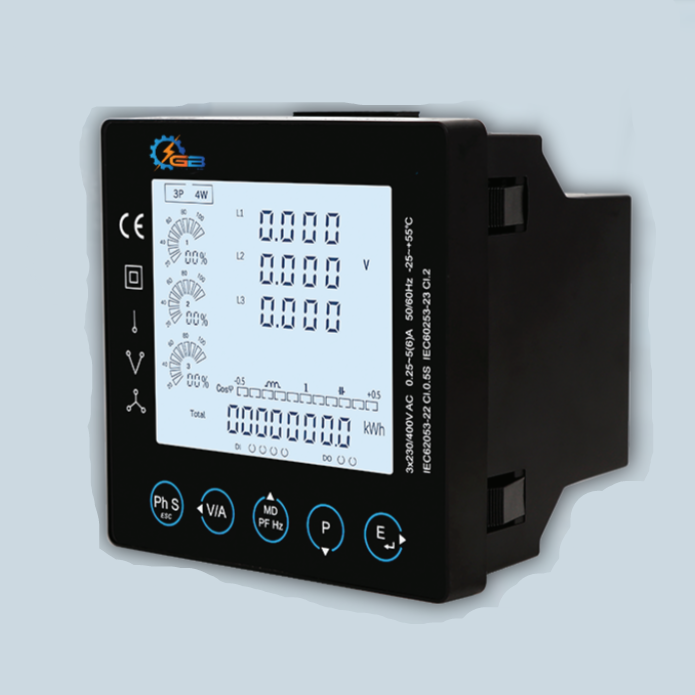

Features of the GBE2000-S MULTI-FUNCTION POWER ANALYZER:
- Supports single-phase, three-phase, and split-phase system types
- Measures split-phase and total power parameters accurately
- Sub-harmonics measurement up to the 63rd order
- Dual communication ports: RS-485 and Ethernet, with baud rate up to 38400bps
- Large high-resolution screen with a grey background and black text for a wide viewing angle
- Five-touch key design for easy operation and a user-friendly interface
- Displays power factor bar graph, load-specific gravity fan chart, and real-time demand
- Bidirectional metering of active and reactive energy (import/export)
- Built-in phase sequence detection and phase angle display
- Manual and automatic page rotation, with backlight delay setting
- Multi-rate metering with 8 time slots and 4 tariffs
- Compatible with 1A/5A CT access, with configurable ratios
- Digital Inputs (DI) with anti-dither setting
- Digital Outputs (DO) and pulse outputs are configurable with delay settings
- SOE event recording with removable battery for maintenance
- Plug-and-play with squeeze mounting, no snap fasteners required
- Intelligent forward/reverse transformer wiring detection
Specification:
- System Compatibility: Single-phase, three-phase, split-phase
- Display: High-resolution LCD, grey background with black characters
- Sub-harmonics Analysis: Up to 63rd order
- Communication: RS-485 & Ethernet, MODBUS protocol, up to 38400bps
- Metering: Active/Reactive Energy (bidirectional), real-time demand, phase-wise
- Inputs: Digital inputs with anti-dither configuration
- Outputs: Digital outputs, pulse output, programmable delay
- Mounting: Squeeze mount, plug-and-play
- Transformer Access: 1A/5A CT with adjustable ratio
- Power Factor Display: Bar graph visual
- SOE Function: Full event recording
- Tariff Support: 8 time slots, 4 rates
Uses:
- Advanced energy monitoring in industrial, commercial, and utility-grade systems
- Power quality analysis in factories, substations, and large buildings
- Real-time energy tracking for EMS (Energy Management Systems)
- Useful in smart grid systems, renewable energy plants, and demand-side management
- Monitoring and logging in critical power systems, data centers, and telecom facilities
Benefits:
- Offers comprehensive power quality and energy monitoring in one device
- Enhances system reliability with real-time stats and visual indicators
- Simplifies setup and maintenance with plug-and-play and removable battery
- Helps optimize load management using demand stats and power factor indicators
- Supports flexible integration via RS-485 and Ethernet ports
- Reduces downtime with full SOE event logging and real-time fault diagnosis
- Customizable input/output behavior for precise control and automation
- User-friendly interface with clear visuals and easy navigation
Package includes:
- 1x GB280Y DIGITAL MULTI-FUNCTION POWER METER
