Description

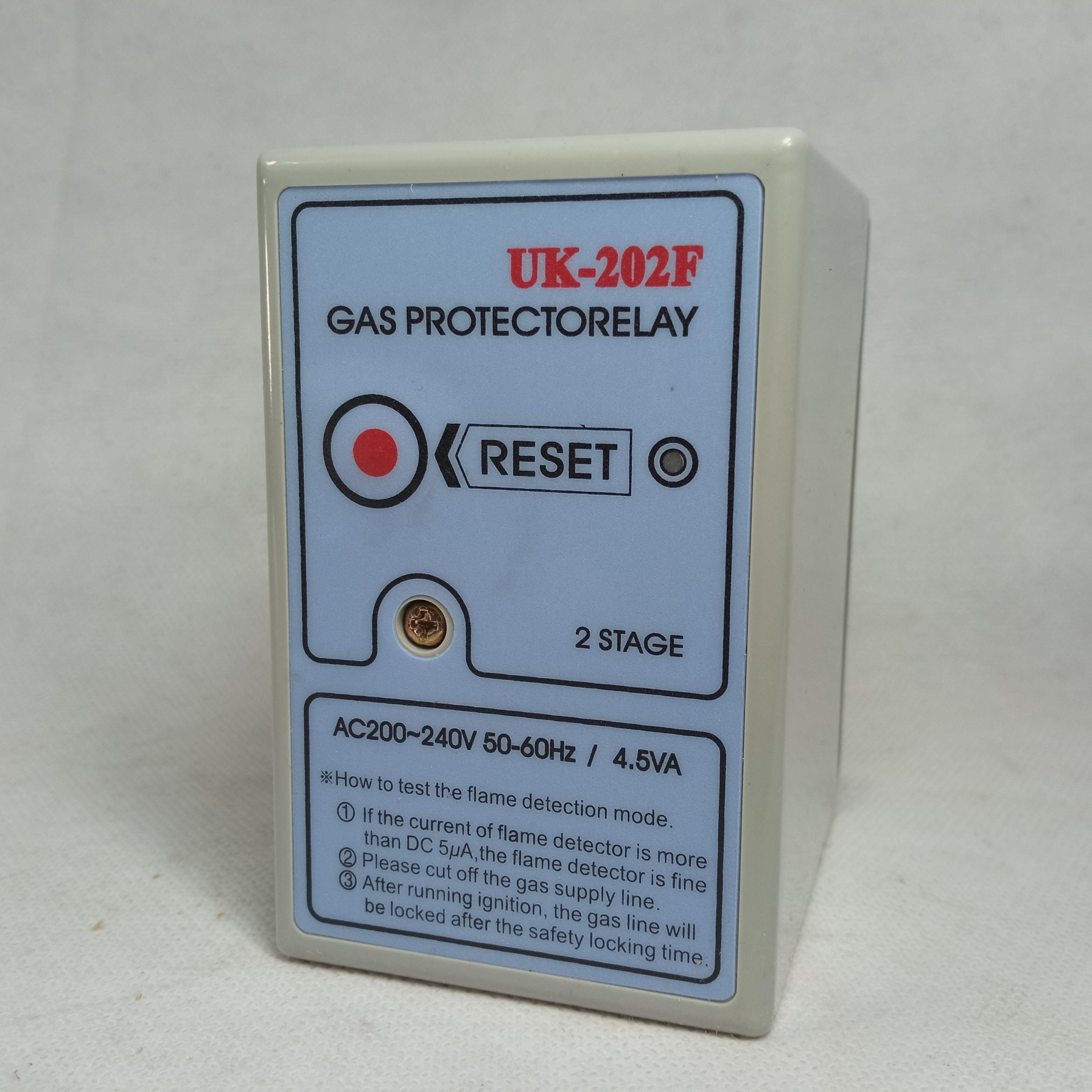

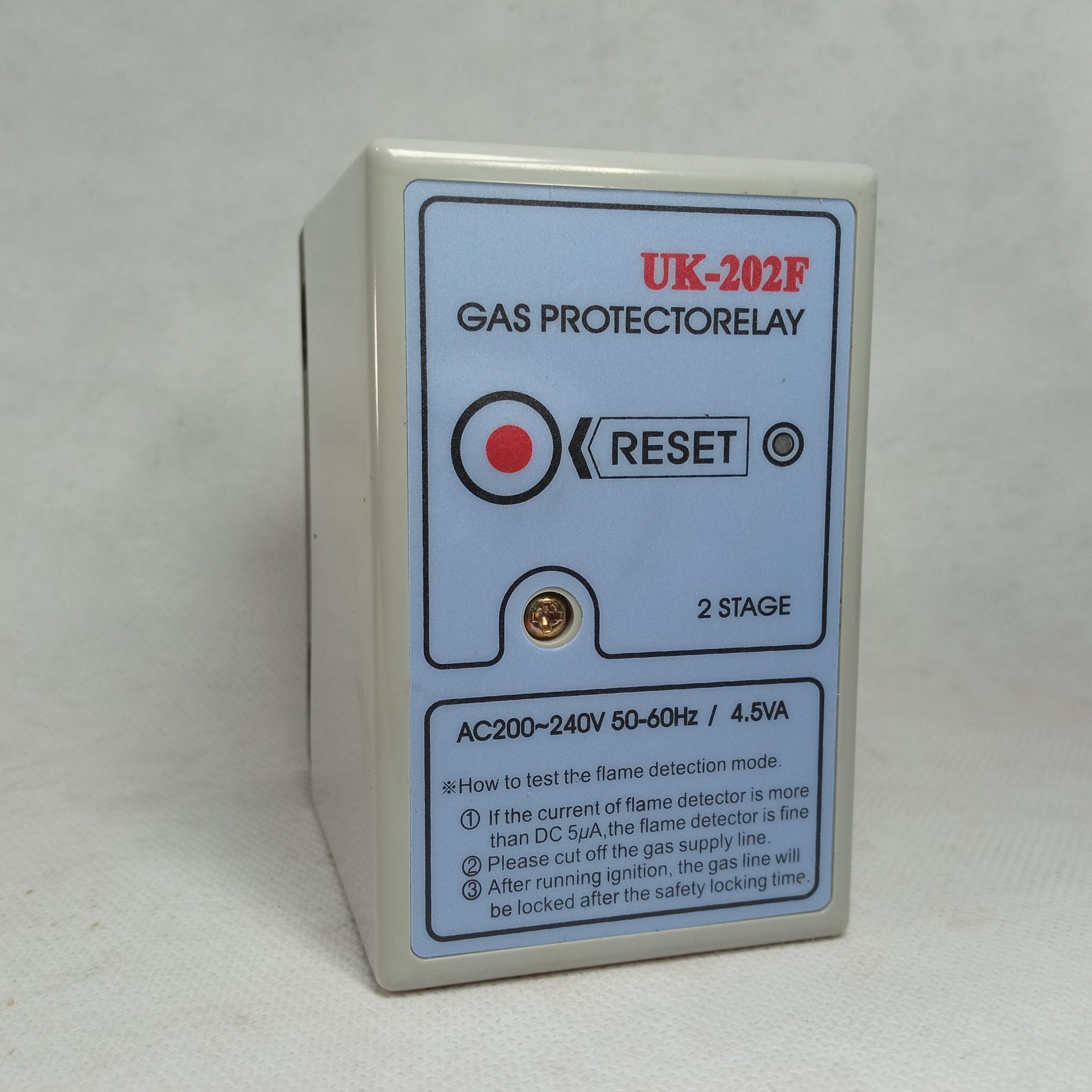

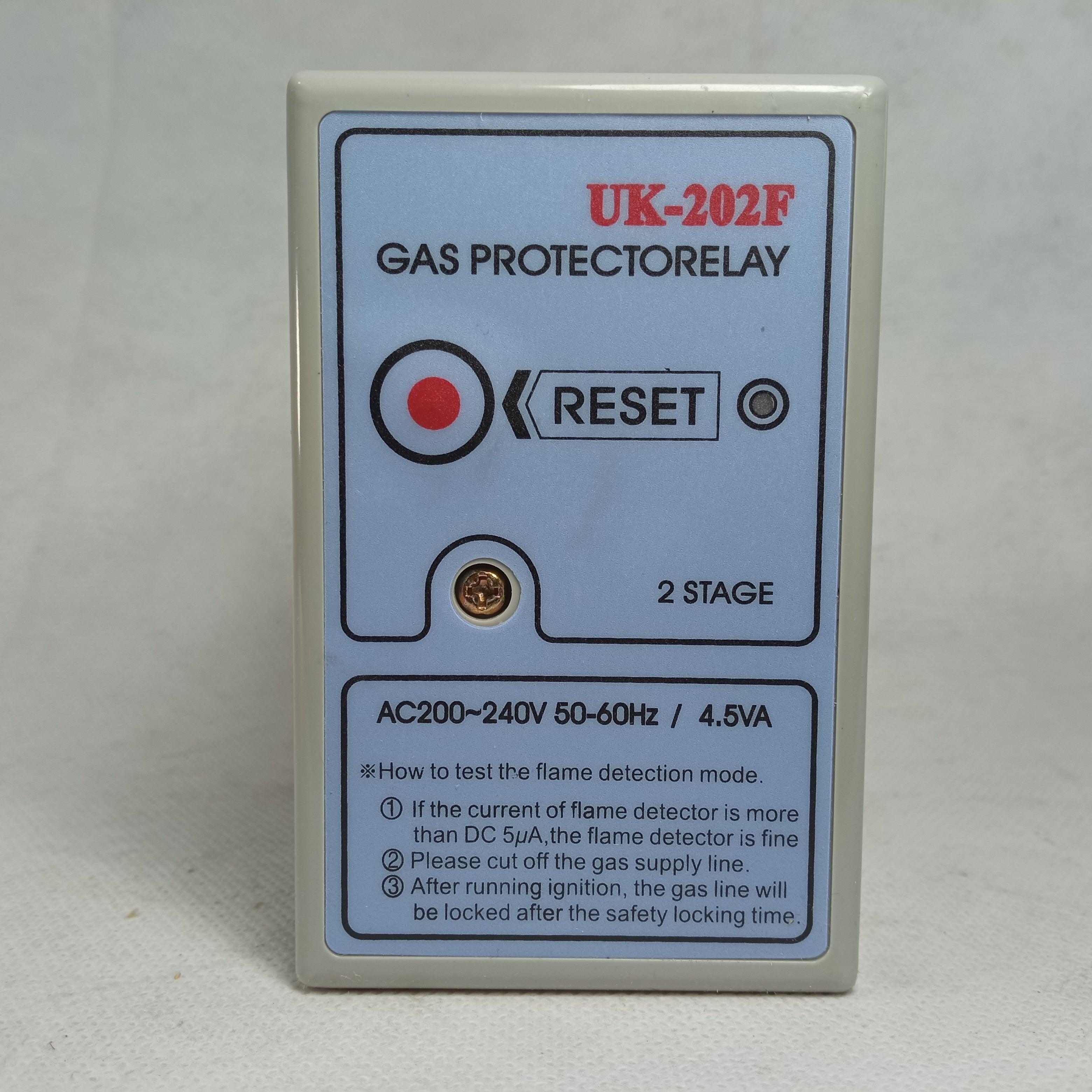

UK-202F (2 Stage Flame Rod Type):
Protector relay for Combustion Safety Control & Automatic Operation of Gas burners with a flame rod. Valve 2 stage with a pilot valve.
UK-202U (2 Stage UV Tron Type):
Protector relay for Combustion Safety Control & Automatic Operation of Gas or Oil burners with Ultraviolet Flame Detector. Valve 2 stage with a pilot valve.
Model | Flame detection | Power supply | Pre-purge time | Post-ignition time | Safety-lock time | Fire detector response time | Post-purge time | Weight with base |
UK-202F | Flame rod | AC200-240V 50-60Hz 4.5V | 15s standard/35s special | 6s | 3s ±1s | Below 1s |
10s ~ 25s (setting 15s) |
Below 0.4 kg |
UK-202F | UV sensor | AC200-240V 50-60Hz 4.5V | 15s standard/35s special | 6s | 3s ±1s | Below 1s | 10s ~ 25s (setting 15s) | Below 0.4 kg |
Key Product Features
-
Characteristics
- Power supply: AC-Voltage 200 -240V,
- Frequency: 50-60 Hz
- Electricity consumption: Below 4.5VA
- Ambient temperature: 20 °C to 60 °C (While not frozen and not dew-drop)
- Standard pre-purge (15s) or special pre-purge (35s)
-
Repair and Maintenance
- Cut off electric power immediately and check the case when the alarm beeps during the operation of the device and put the reset-switch on after taking the necessary steps
Best Online Shopping website for Gas Protector Relay. Here you get Gas Protector Relay at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Gas Protector Relay
