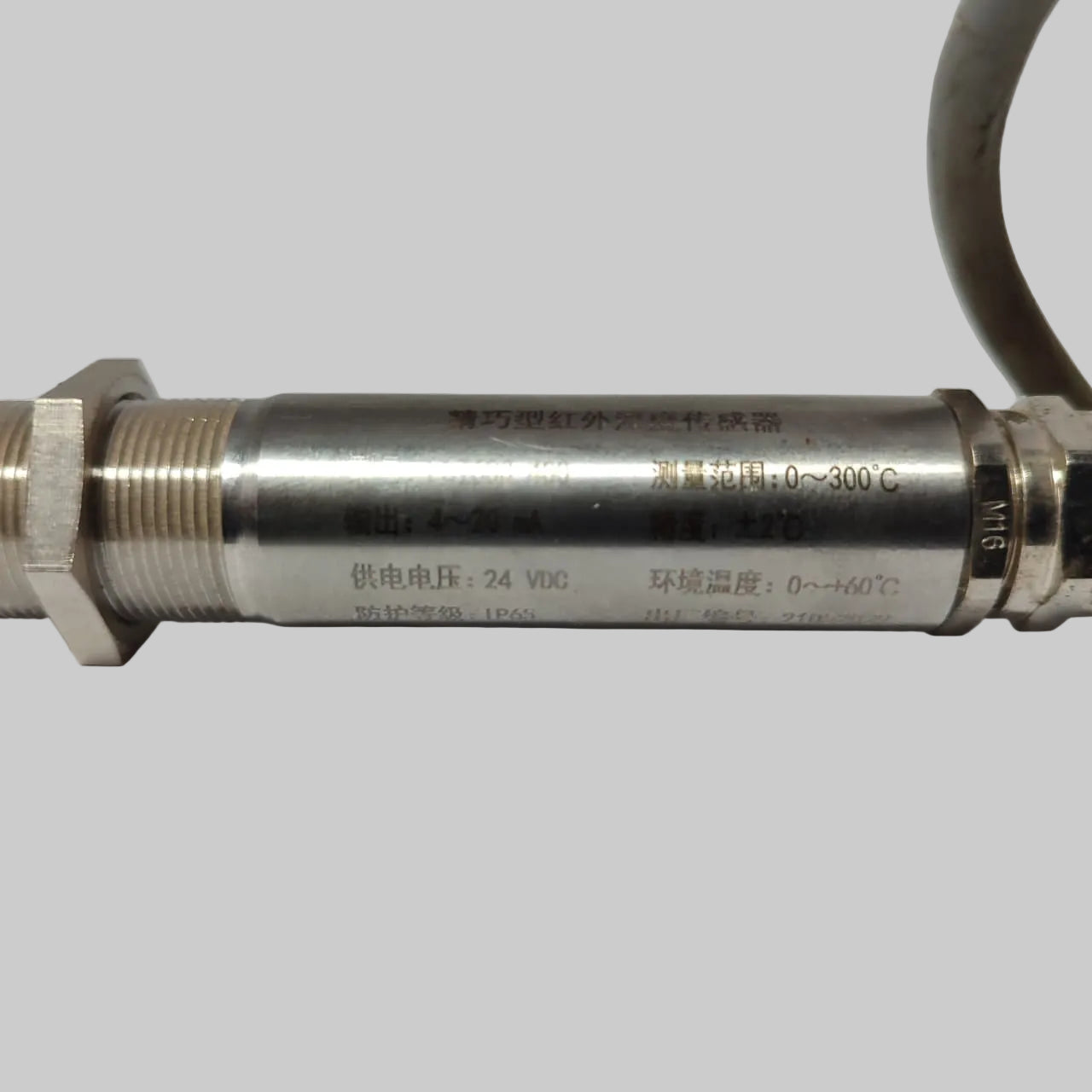

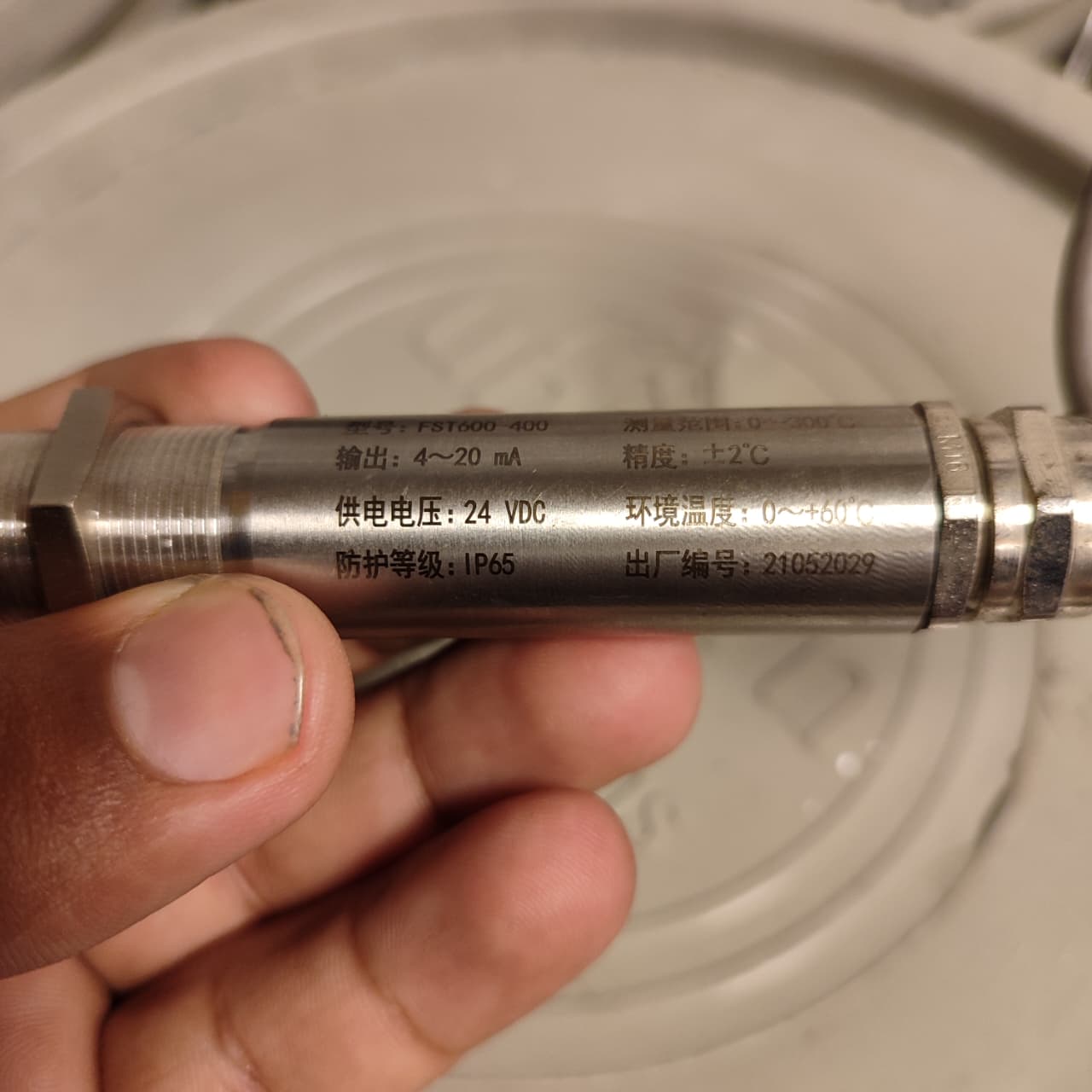

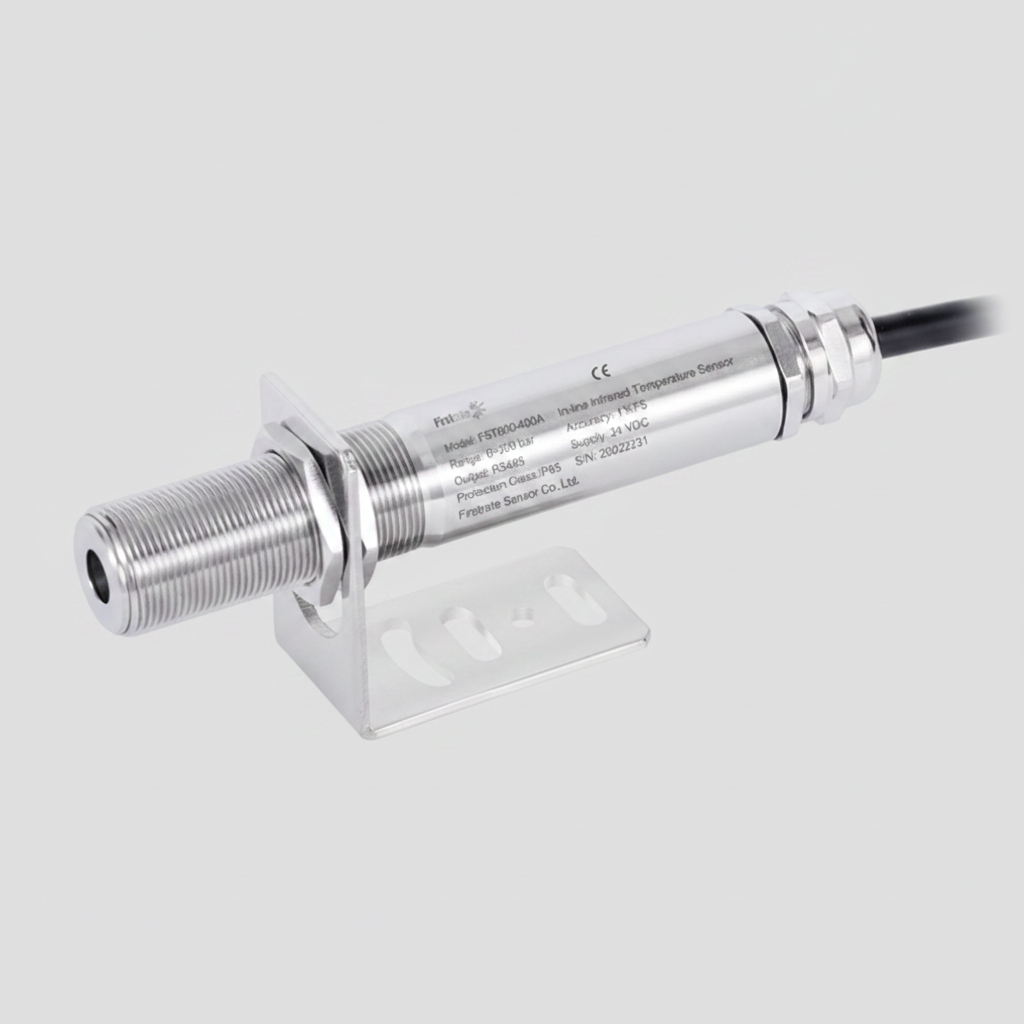

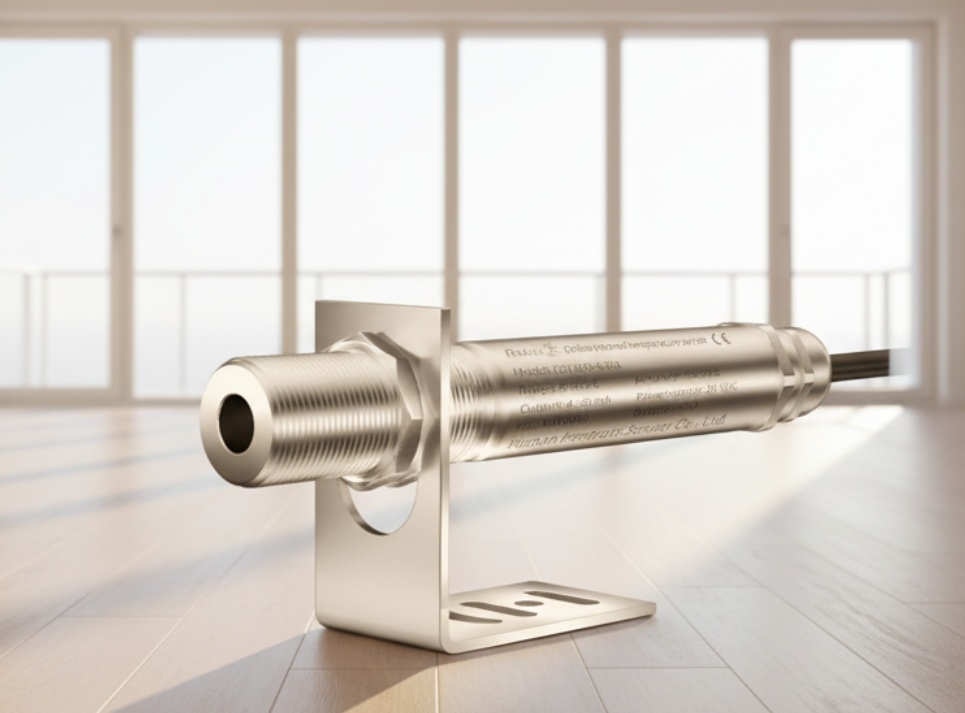

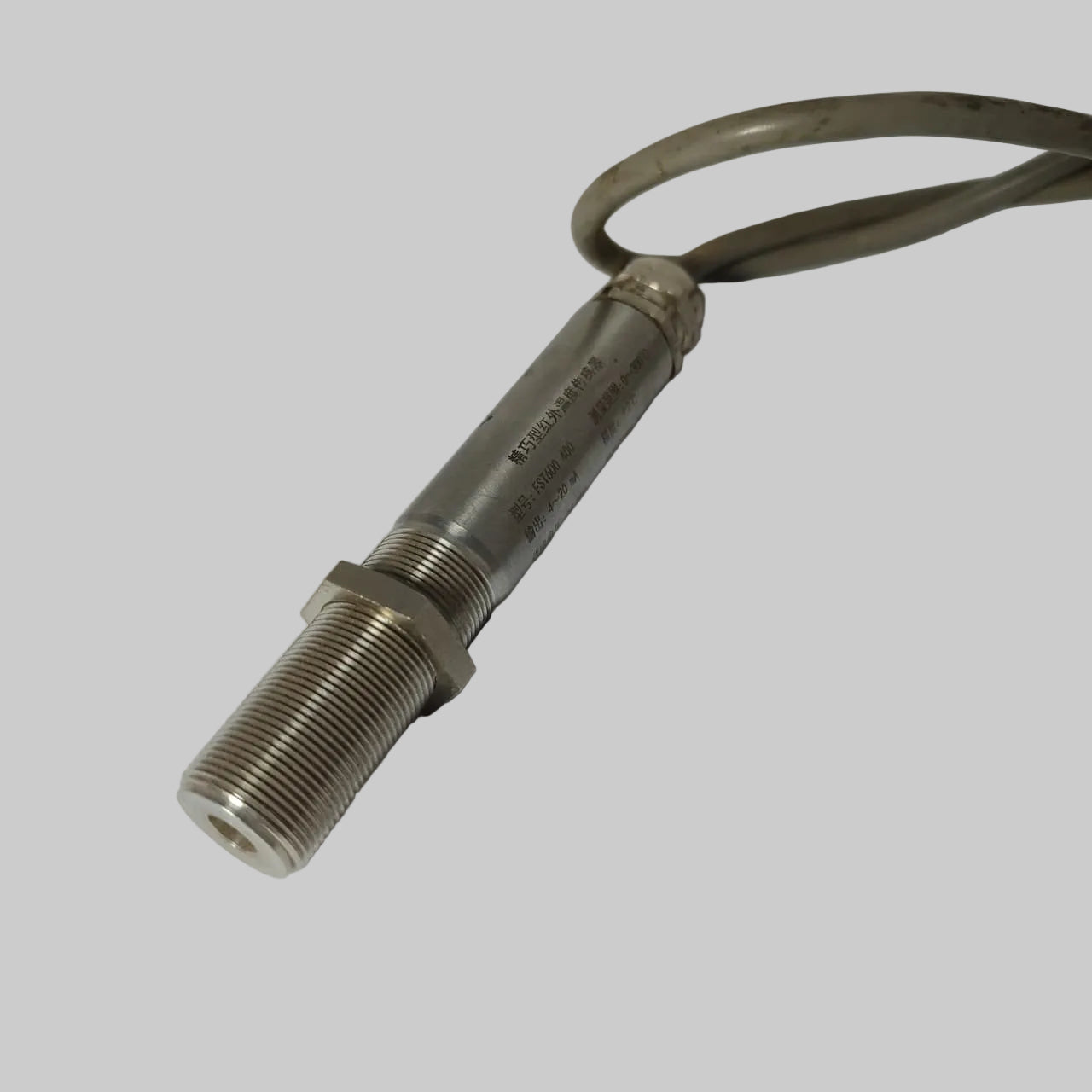

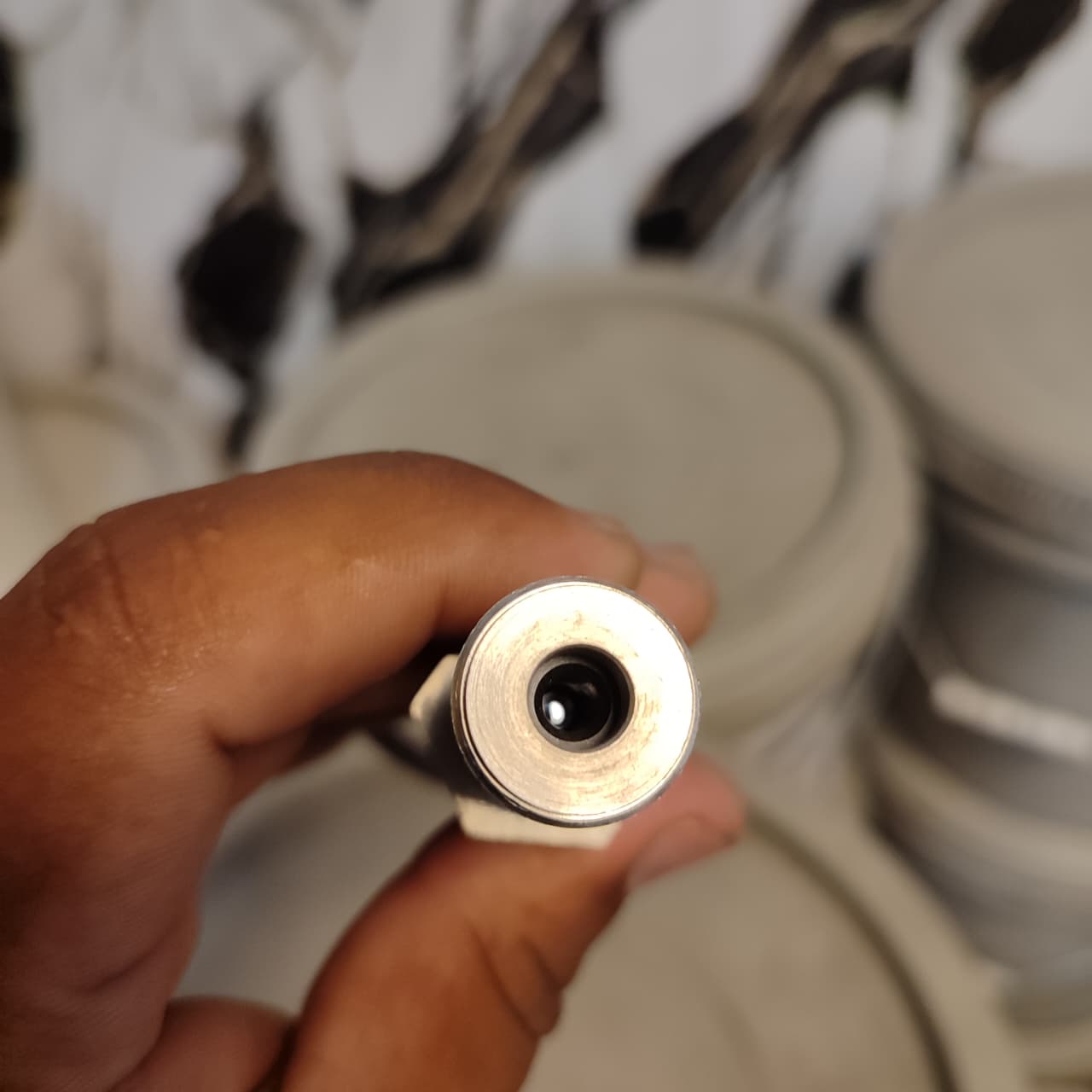

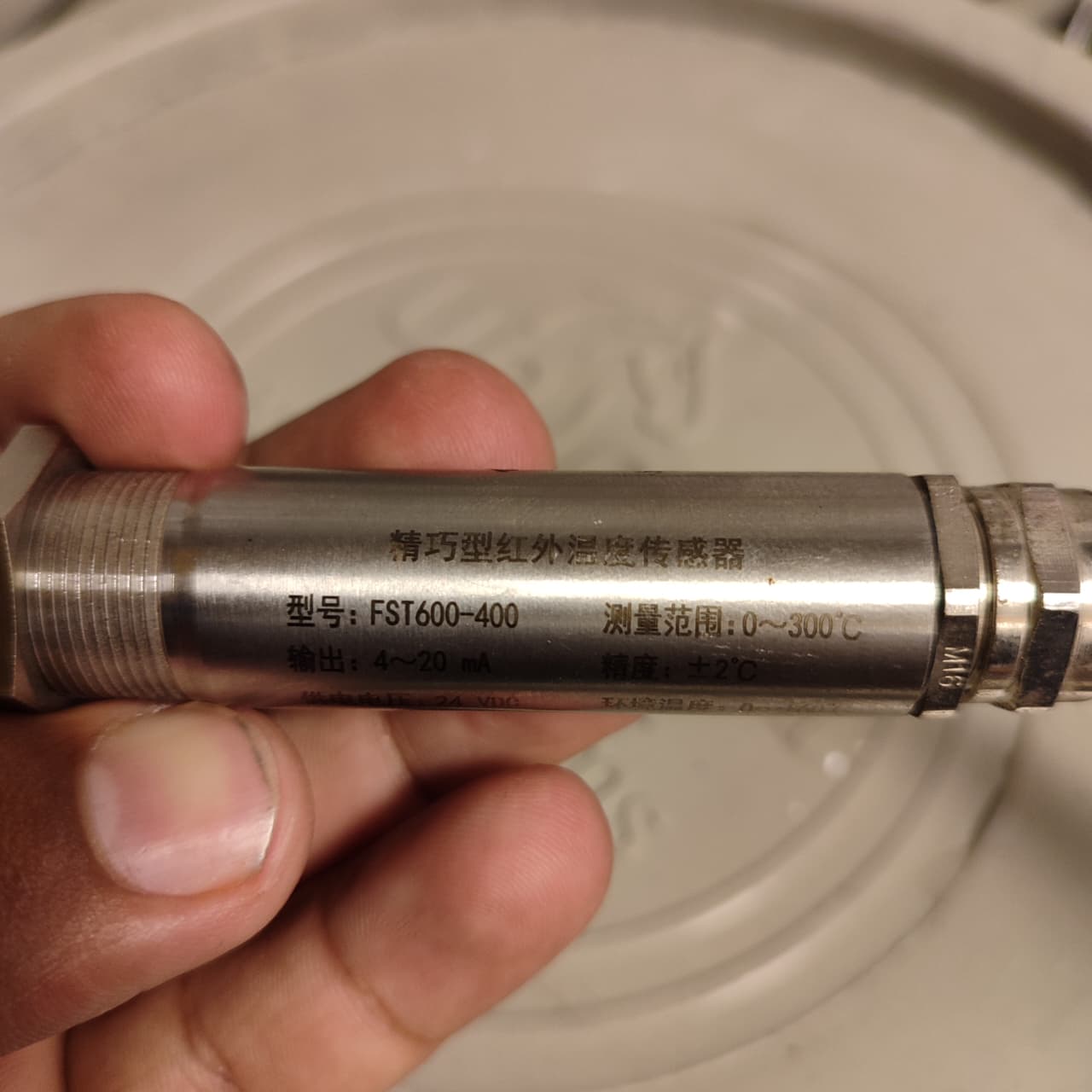

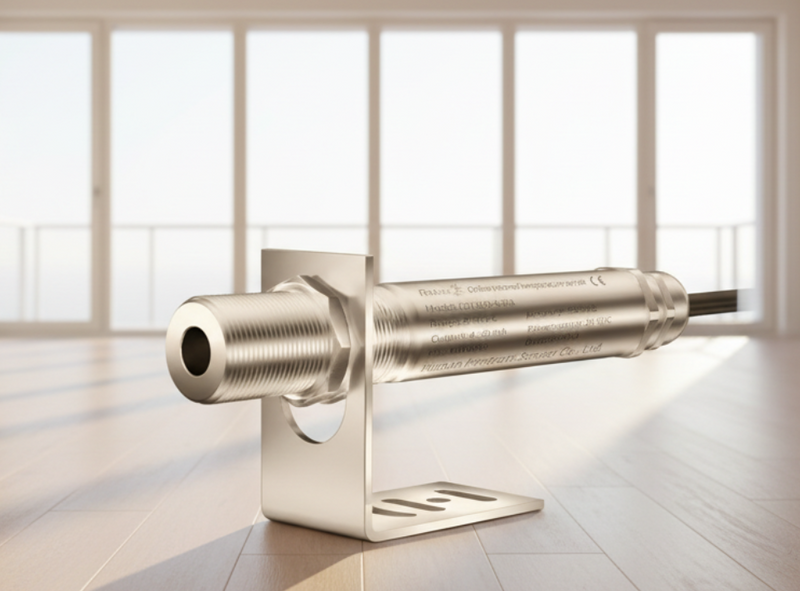

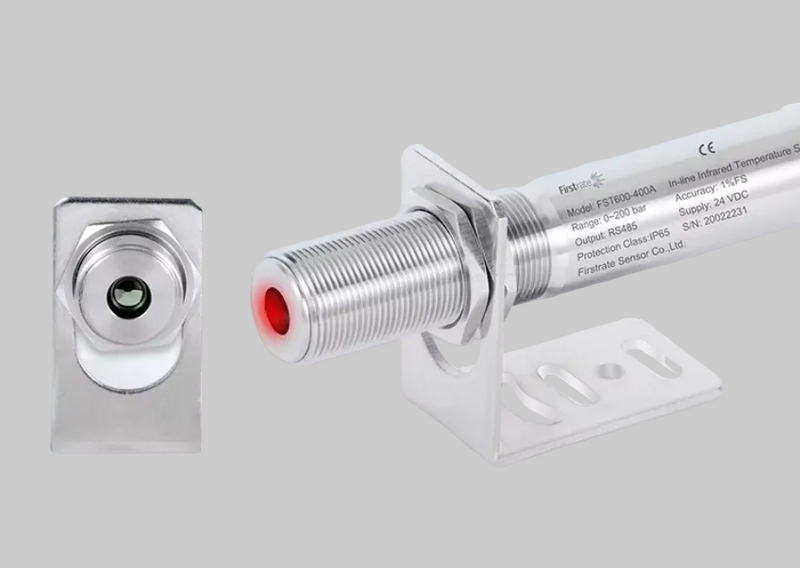

FST600-400A Infrared Laser Beam Temperature Sensor USED in Pakistan

The FST600-400A Infrared Laser Beam Temperature Sensor is a high-performance non-contact temperature measuring device designed for accurate and safe industrial monitoring. It uses advanced infrared technology with laser targeting to measure surface temperature without touching the object. This ensures reliable readings for hot, moving, or hard-to-reach surfaces. With a wide temperature range, fast response time, and durable stainless steel body, it provides stable output and long service life. It is ideal for automation systems, furnaces, and industrial process control.

Features:

• Non-contact infrared temperature measurement
• Laser beam for precise object targeting
• Wide temperature measurement range up to 1200°C
• High accuracy and repeatability
• Fast response time for real-time monitoring
• Safe measurement of hot and moving objects
• Supports analog 4–20mA output
• Optional RS485 communication output
• Durable stainless steel construction
• IP65 protection for harsh environments
• Compact and easy-to-install design
• Stable and continuous signal output
• Factory calibrated for reliable readings
• Low maintenance and long service life
• High signal stability and performance
• Suitable for automation systems
• Resistant to dust and moisture
• Easy integration with control panels
• Industrial-grade build quality
• Energy efficient operation

Specifications:

• Model: FST600-400A
• Type: Infrared temperature sensor
• Measurement Method: Non-contact (infrared)
• Output Type: Analog (4–20mA), optional RS485
• Temperature Range Options: 0–100°C, 0–200°C, 0–300°C, 0–500°C, up to 1200°C
• Accuracy: ±1% or ±1°C (approx. up to ±2% or ±2°C variant)
• Repeatability: ±1% or ±1°C
• Power Supply: 9–30V DC / 12–30V DC
• Distance to Spot Ratio: 20:1
• Emissivity: 0.95
• Response Time: 150 ms
• Response Wavelength: 8–14 µm
• Ambient Temperature: 0–60°C
• Storage Temperature: -20–80°C
• Relative Humidity: 10–90% RH
• Housing Material: Stainless steel
• Protection Rating: IP65

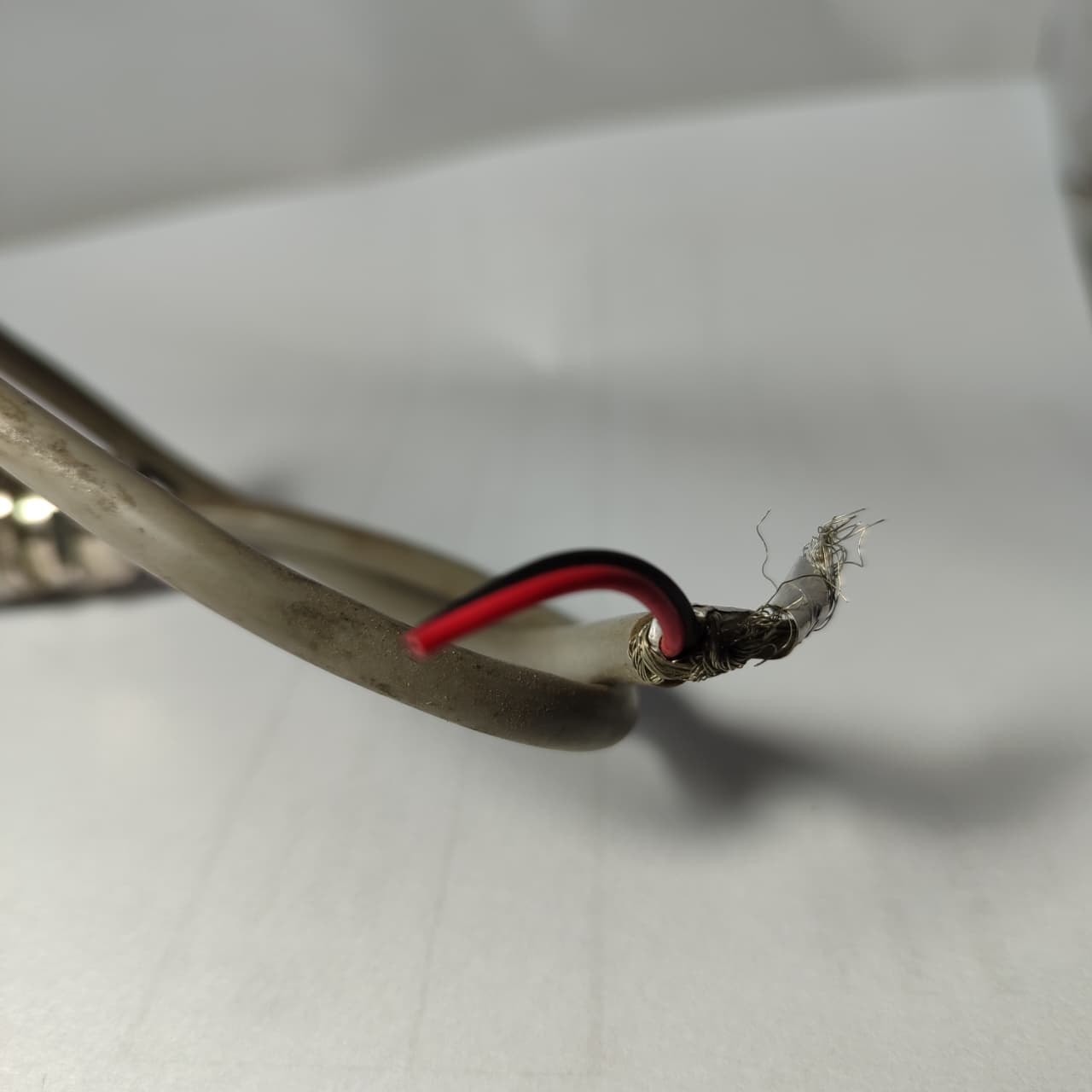

• Electrical Connection: Direct lead
• Mounting: Bracket included
• Signal Output Type: Continuous analog signal
• Production Process: Integrated design
• Certification: CE
• Measurement Type: Surface temperature
• Installation: Fixed mount
• Display: External display compatible
• Signal Stability: High
• Calibration: Factory calibrated
• Durability: Long operational life
• Maintenance: Minimal required
• Environment Suitability: Industrial use
• Safety: Non-contact safe operation
• Application Level: Industrial automation
• Compatibility: PLC and control systems
• Noise Resistance: High signal stability
• Design: Compact industrial design
• Performance: Reliable under harsh conditions

Uses:

• Measuring high-temperature surfaces in industry
• Monitoring moving machinery and conveyors
• Furnace and oven temperature control
• Steel, glass, and metal processing
• HVAC and thermal system monitoring
• Automation and process control systems
• Safety monitoring in hot zones
• Non-contact temperature measurement applications

Package includes:

1x  FST600-400A Infrared Laser Beam Temperature Sensor
