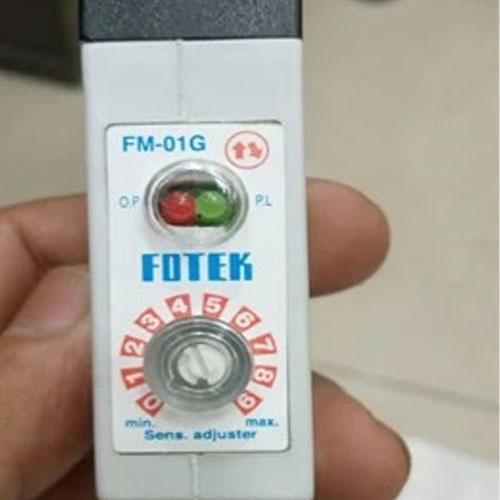

Fotek FM-01G Fotek Sensor

SKU:BR3185-HL

Regular price Rs 12,000
Regular price Rs 10,000 Sale price Rs 12,000
Sale Sold out

Fotek FM-01G in UNITED STATES In Pakistan BR3185

Description

Optical diffuse rectangular for color / brand, high speed, 15mm range, NPN & PNP, NA + NF, Cable.
Manufacturer part number: FM-01G
Availability: In stock
Manufacturer: OPTEX-FA

You can reach FM-01G and all of the required spare parts of Fotek from our wide sales network.

Contact us to get assistance from an expert for sales prices for Fotek - FM-01G Photo Sensor in the United States.

The products of Fotek are leading in this area with high-quality and at reasonable prices.

We know time is expensive, so let us find the best prices for spare parts and components for you.

Our company is not an official distributor of Fotek, but we are selling their products at competitive prices.

Buy the original product of Fotek - FM-01G Photo Sensor in the United States at a reasonable price.

With each day we gain more and more experience and that's why we are able to satisfy your needs for spare parts.

Specification

Type High-Speed Type Standard Type
Model FM-01R                    FM-01G FM-01PR                                                                                 FM-01PG FM-03R                                                                             FM-03G FM-10R
Setting Distance 15.0mm 12.0mm 32.0mm 100.0mm
Light Spot 1.0φ 2.0φ
Response Time 0.25ms 2ms
Sensitivity Adjuster 270°     Trimmer
Operating Voltage 11~30 VDC; Ripple < 20% of Peak to Peak
Current Consumption 45mA max. 30mA max.
Light Source G: Green Led; R: Red LED
Hysteresis 5% of Sensing Distance
Illumination Lamplight < 5,000 Lux ; Sunlight < 10,000 Lux.
Output Method NPN & PNP Two Way Output
Output Status NO / NC Changeable
Output Current 150mA max.
Leakage Current 0.8mA max.
Residual Voltage 0.8V max.
Protection Circuit Short Circuit & Polarity Reversed Protection
Connection Method 4 Cores / 5.0φ X 2m
Housing Material PBT
Operating Temp./Hum. -20° C~+60°C; 35%~85%RH
Protection Class IP-65
Weight Appr. 105g



Online Shopping website for  Fotek FM-01G Fotek Sensor. Here you get For  Fotek FM-01G Fotek Sensor in reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakistan

Package Include

1 x Fotek FM-01G Fotek Sensor

Fotek FM-01G Sensor
