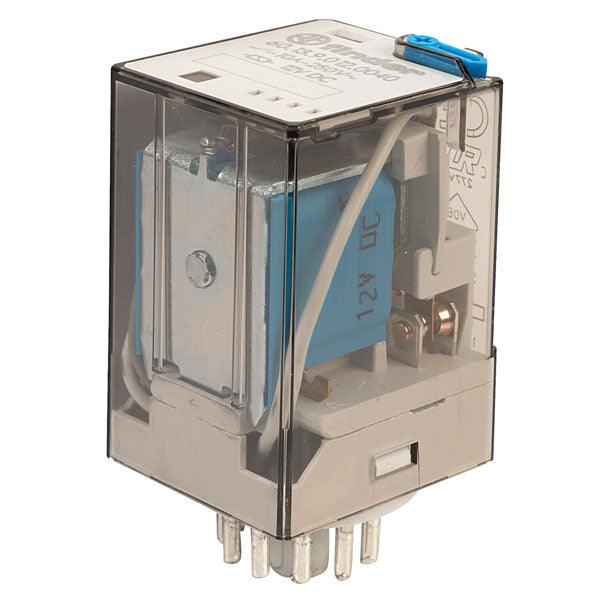

FINDER 12VDC RELAY 60.12 (8 PIN) is an electromagnetic Relay. This 60 series relay has 2CO (DPDT) cadmium-free Agni contacts. Mini Electromagnetic Relay has AC and DC coils. It has a Lockable test button with a mechanical flag. The dual-purpose Finder test button can be used in two ways.

This Finder latching Relay comes with an 8pin Rail-Mount Relay Socket Relay Base

Features:

• 2 pole changeover contacts
• Cadmium Free contacts (preferred version)
• AC & DC coils, including “current sensing" versions
• UL Listing (certain relay/socket combinations)
• Version with bifurcated contacts for low-level switching
• Contact material options
• Lockable test button with a mechanical flag
• 90 series sockets
• Coil EMC suppression
• Timer accessories 86 series
• Socket base has screw fixed Holes

Specifications :

1. Model: 60.12.9.012.0040
2. Type of relay: electromagnetic
3. Maximum Switching Voltage AC: 400V ac
4. Coil Voltage: 12VDC
5. AC contacts rating: 10A / 250V AC
6. DC contacts rating: 10A / 30VDC
7. Contact current max. : 10A
8. Relay variant: Industrial
9. Mounting: Socket
10. Relay series: 60.12
11. Relay dimensions : 36.4 x 32.5 x 54.2mm
12. Coil resistance: 445Ω
13. Contact material: Agni
14. Coil power consumption: 1.3W
15. Number of pins of the relay: 8
16. Base pins: 8
17. Base Mount: DIN mount, screw
18. Base Inner: Copper
