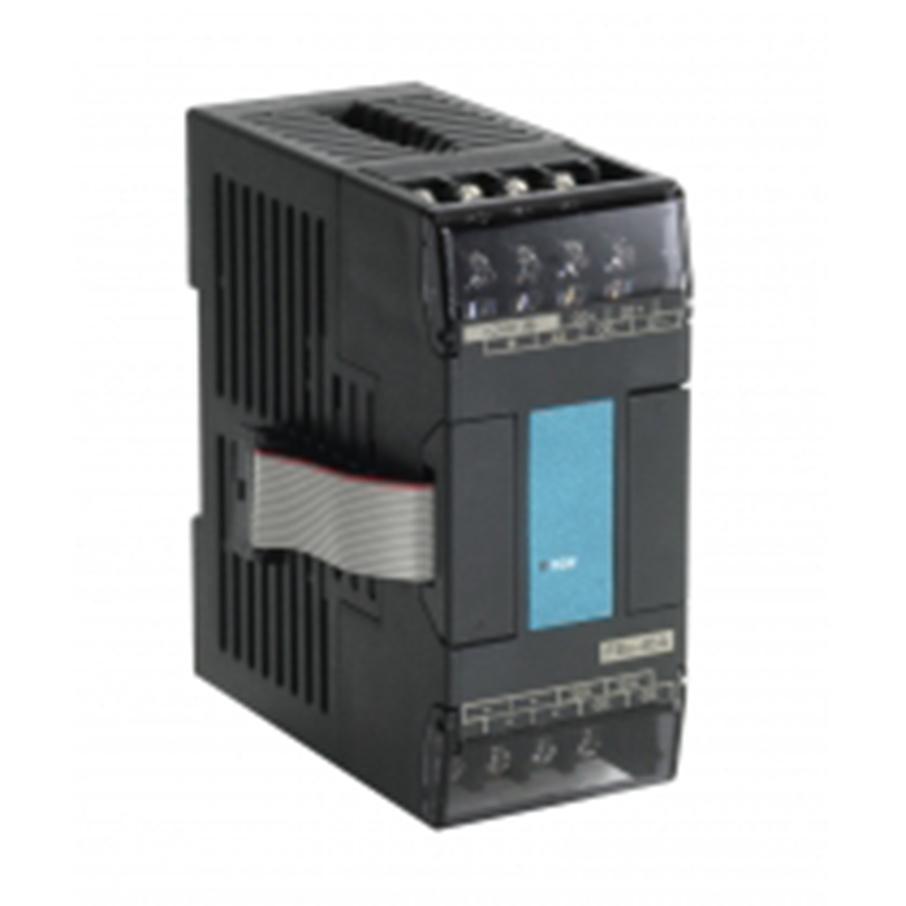

FBs-6AD BR2338

 Input point  6 points  Output point  ?  Input/Output value  -8192~8191 or 0~16383 (14-bit)  Input/output  Signal range  Bipolar  Voltage: -10~10V or -5~5V Current: -20~20mA or -10~10mA  Unipolar  Voltage: 0~10V or 0~5V Current: 0~20mA or 0~10mA  Maximum resolution  Voltage: 0.3mV (5V/16384) Current: 0.61?A (10mA/16384)  Accuracy  ±1%  Conversion time  Conversion once for each scan  Maximum input signal  Input voltage: ±15V Input current: ±30mA  Allowable load range  ?  Input impedance  Input voltage: 63.2K? Input current: 250?  Isolation method  Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute, no isolation between each channel  Power consumptio  24VDC –15%/+20%, 3.2W max.  Wiring mechanism  7.62 mm fixed terminal block
