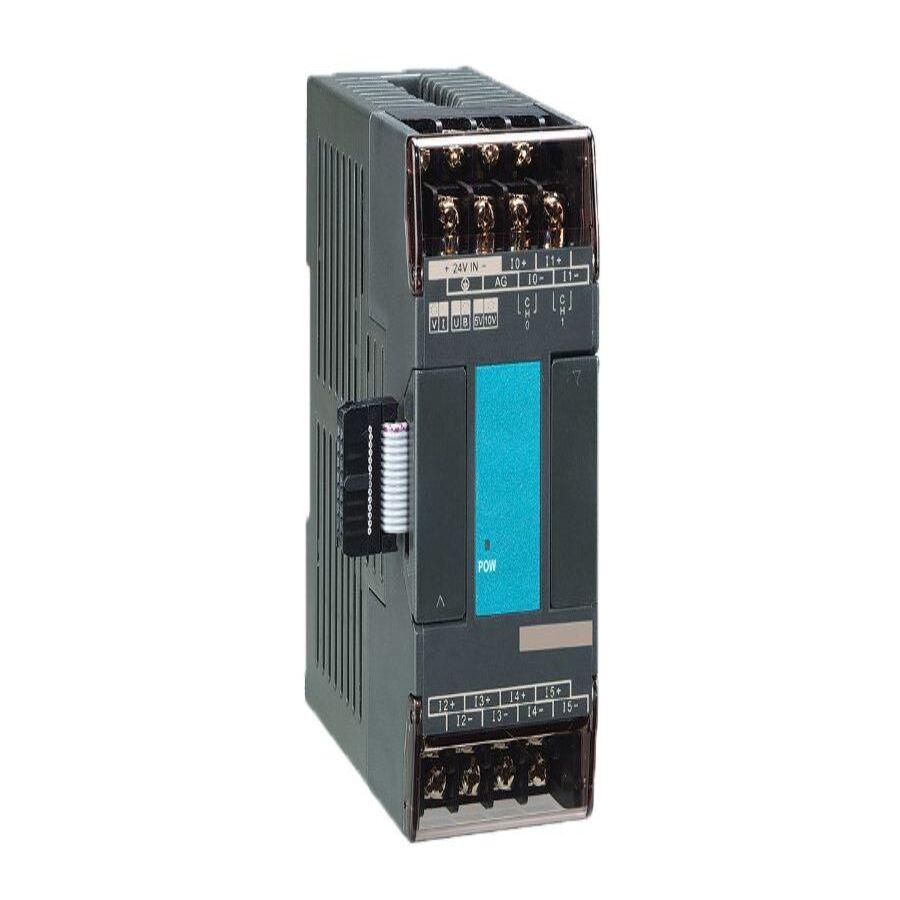

FBs-2LC is one of the analog input modules of FATEK FBs series PLC. It supports two channels of load cell input for weight measurement. The raw conversion result is represented by a signed 16 bit integer value. In order to filter out the field noise imposed on the signal, it also provides the average of sample input function.

Specifications:

• Total Channels:  2
• A/D Converter Utilized : 24-bit ?-? A/D
• Resolution: 16 bits (include signed bit)
• I/O Points Occupied: 1 RI(Input Register) and 8 DO
• Conversion Rate: 1/3/5/8 Hz
• Non-Linearity: 0.01% F.S. (@25?)
• Zero Drift: 0.2 µV/?
• Gain Drift: 10 ppm/?
• Excitation Voltage : 5V with 100? driving capability
• Sensitivity: 2mV/V, 5mV/V, 10mV/V, 20mV/V
• Software Filter: Moving average
• Average Samples: 1~8 configurable
• Isolation: Transformer(Power) and photo-coupler(Signal)
• Indicator(s) : 5V PWR LED
• Supply Power: 24V-15%/+20%, 2VA
• Internal Power Consumption: 5V, 100mA
• Operating Temperature: 0 ~ 60 ?
• Storage Temperature: 20 ~ 80 ?
• Dimensions: 40(W)x90(H)x80(D) mm


Industryparts.pk Best Online Shopping website for FBs-2LC Fatek Plc Module in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

      1 x FBs-2LC Fatek Plc module
