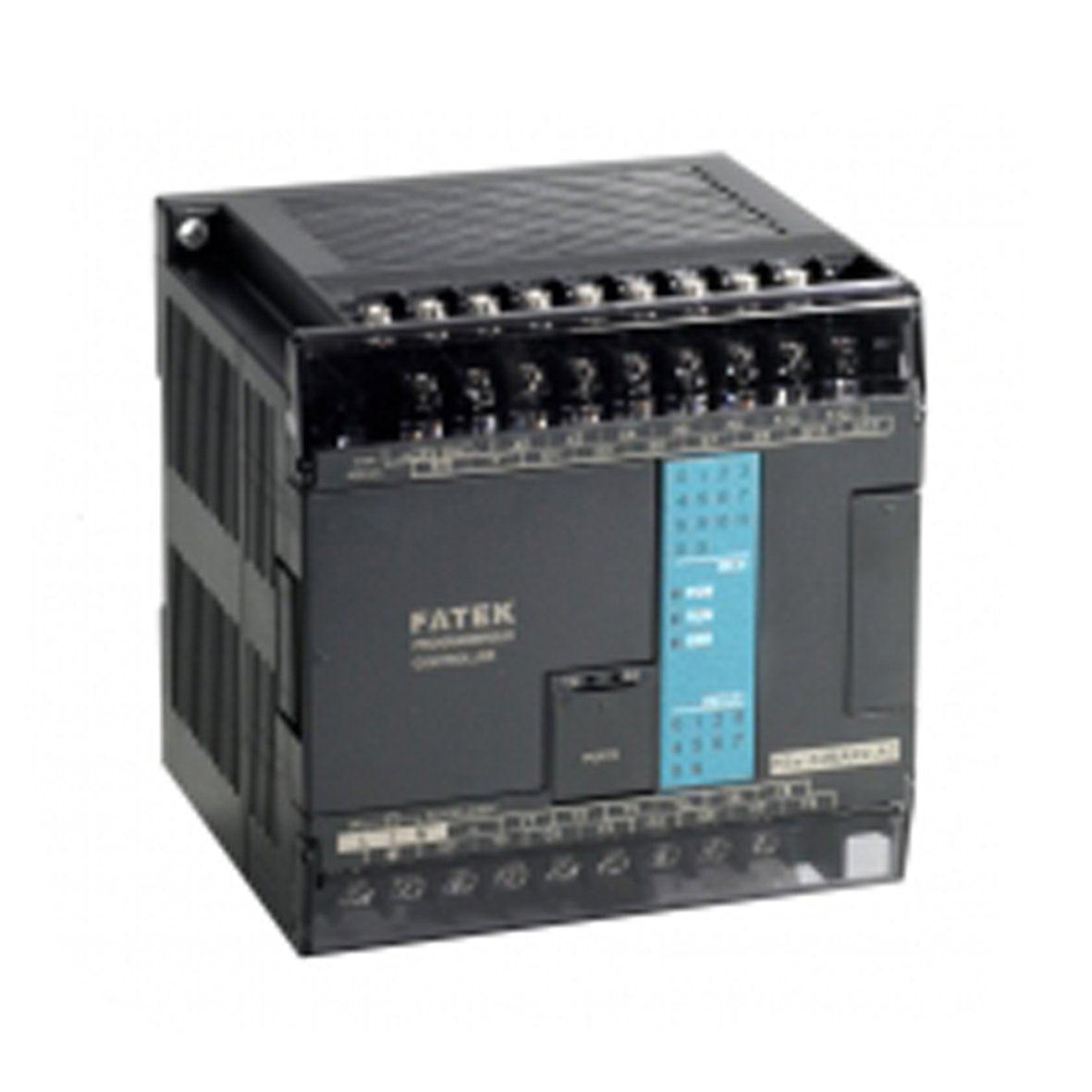

FBs-20MCT in pakistan BR1545
FBs-20MCT FATEK PLC IN PAKISTAN 12 points 24VDC digital input (4 points high speed 200KHz, 2 points medium speed 20KHz, 6 points medium speed total 5KHz); 8 points relay or transistor output (4 points high speed 200KHz, 4 points medium speed 20KHz); 1 RS232 or USB port (expandable up to 5); built-in RTC;detachable terminal block
Specification
|
FBs-20MCR
|
FBs-20MCT/J
|
| Digital Input |
24VDC |
High speed (200KHz) |
4 points |
| Medium speed (20KHz) |
2 points |
| Medium speed (Total 5KHz) |
6 points |
| Digital output |
Relay |
8 points |
? |
| Transistor |
High speed (200KHz) |
? |
4 points |
| Medium speed (20KHz) |
? |
4 points |
| Low speed |
? |
? |
|
Communication Port
|
Built-in |
1 port (Port0, USB or RS232) |
| Expandable |
4 ports (Port1~4, RS485 or RS232 or Ethernet or GSM or ZigBee) |
| Calendar |
Built-in |
| Built-in power supply |
SPW24-AC/D12/D24 |
| Wiring mechanism |
7.62mm detachable terminal block |
