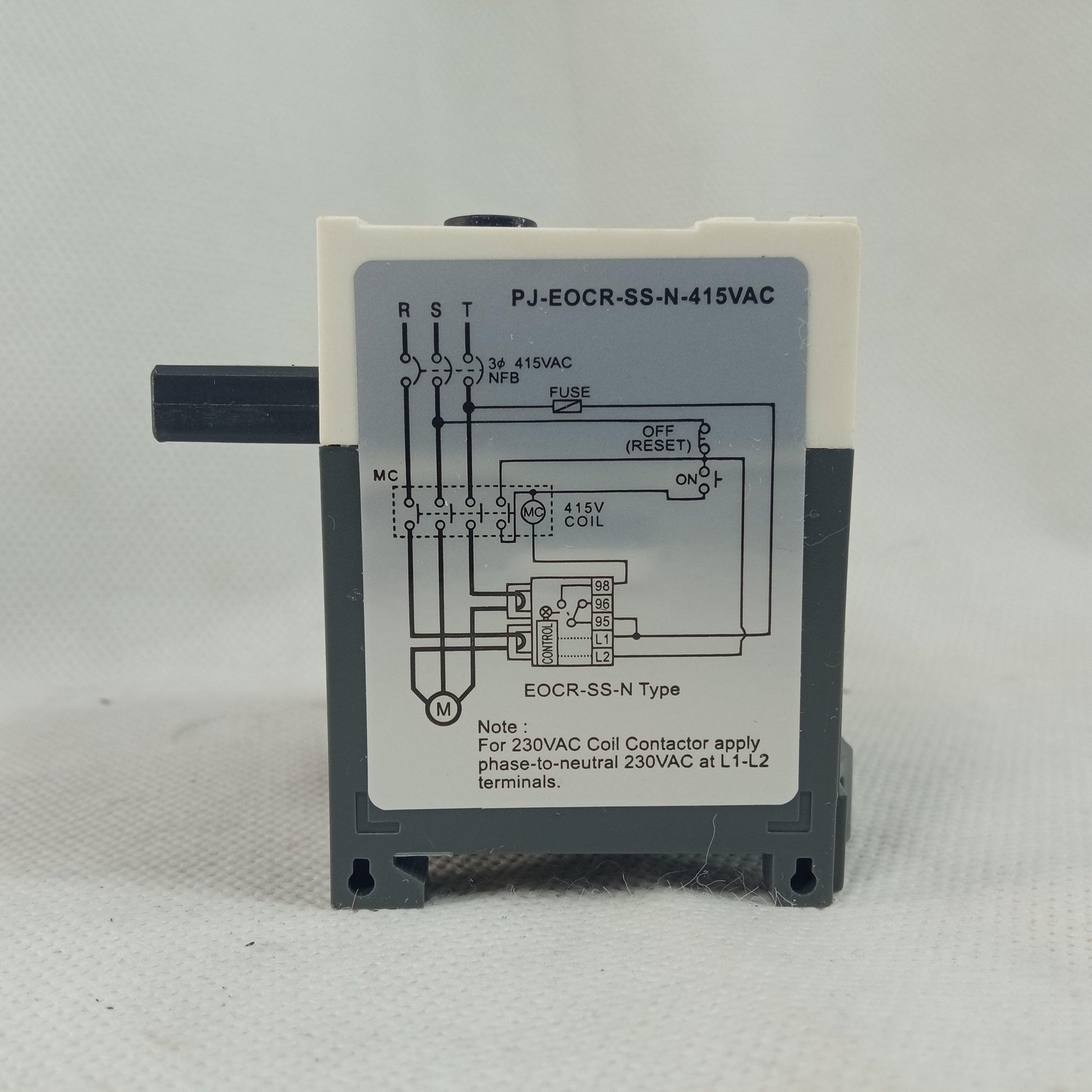

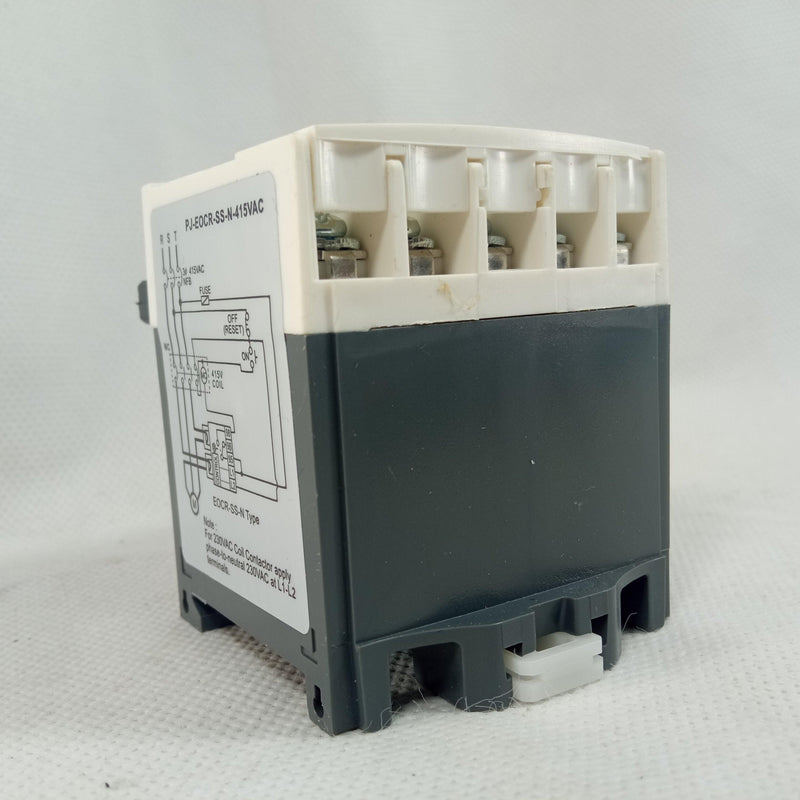

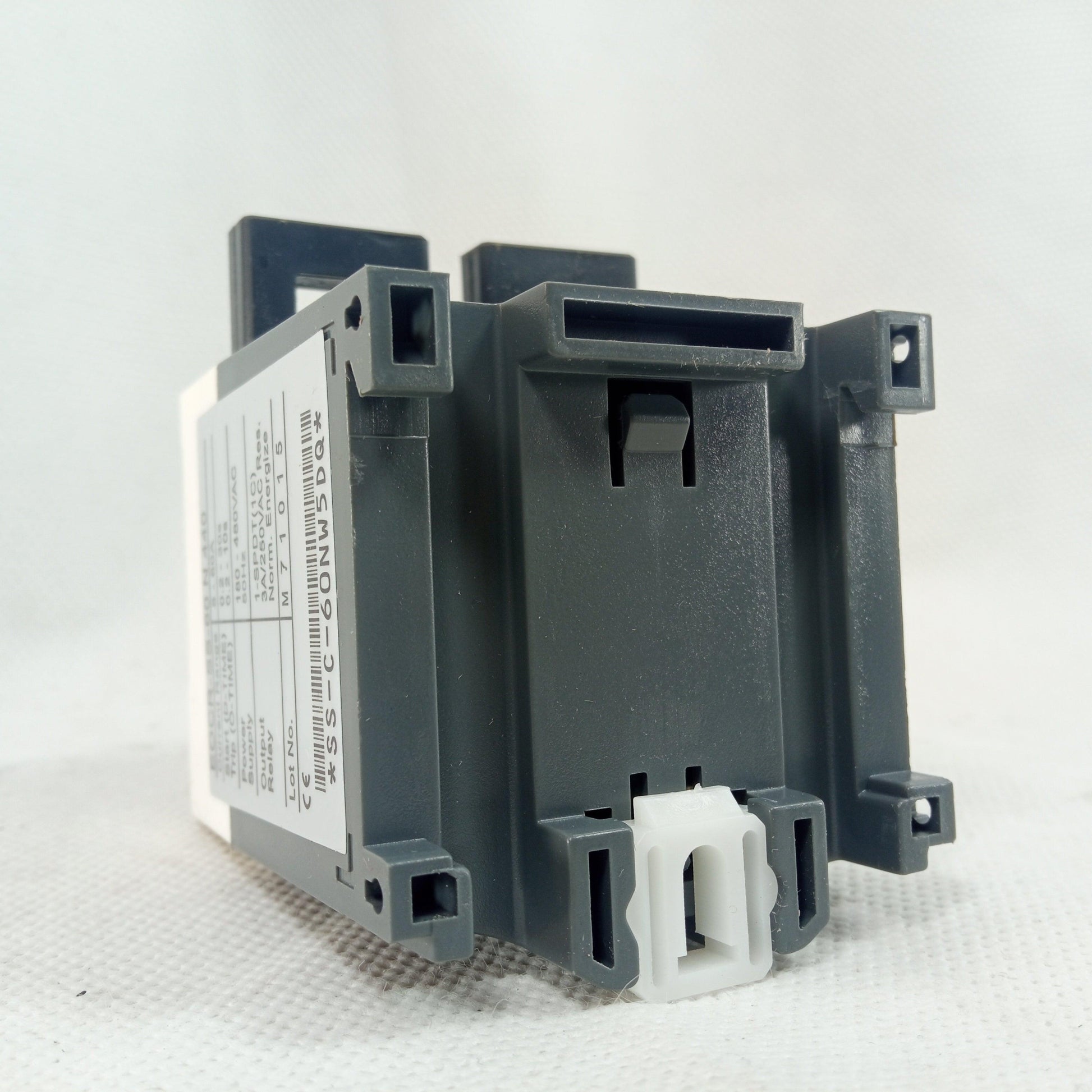

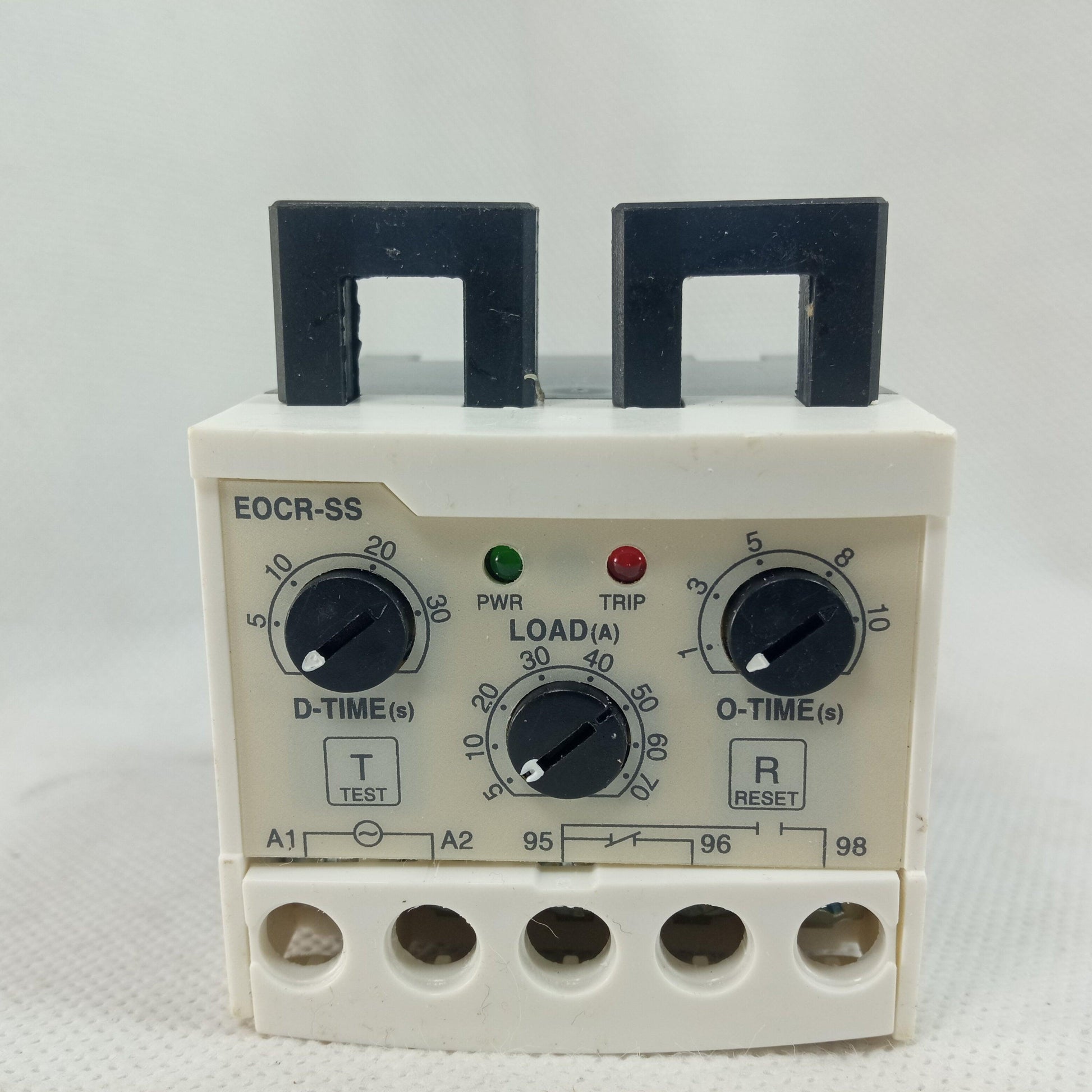

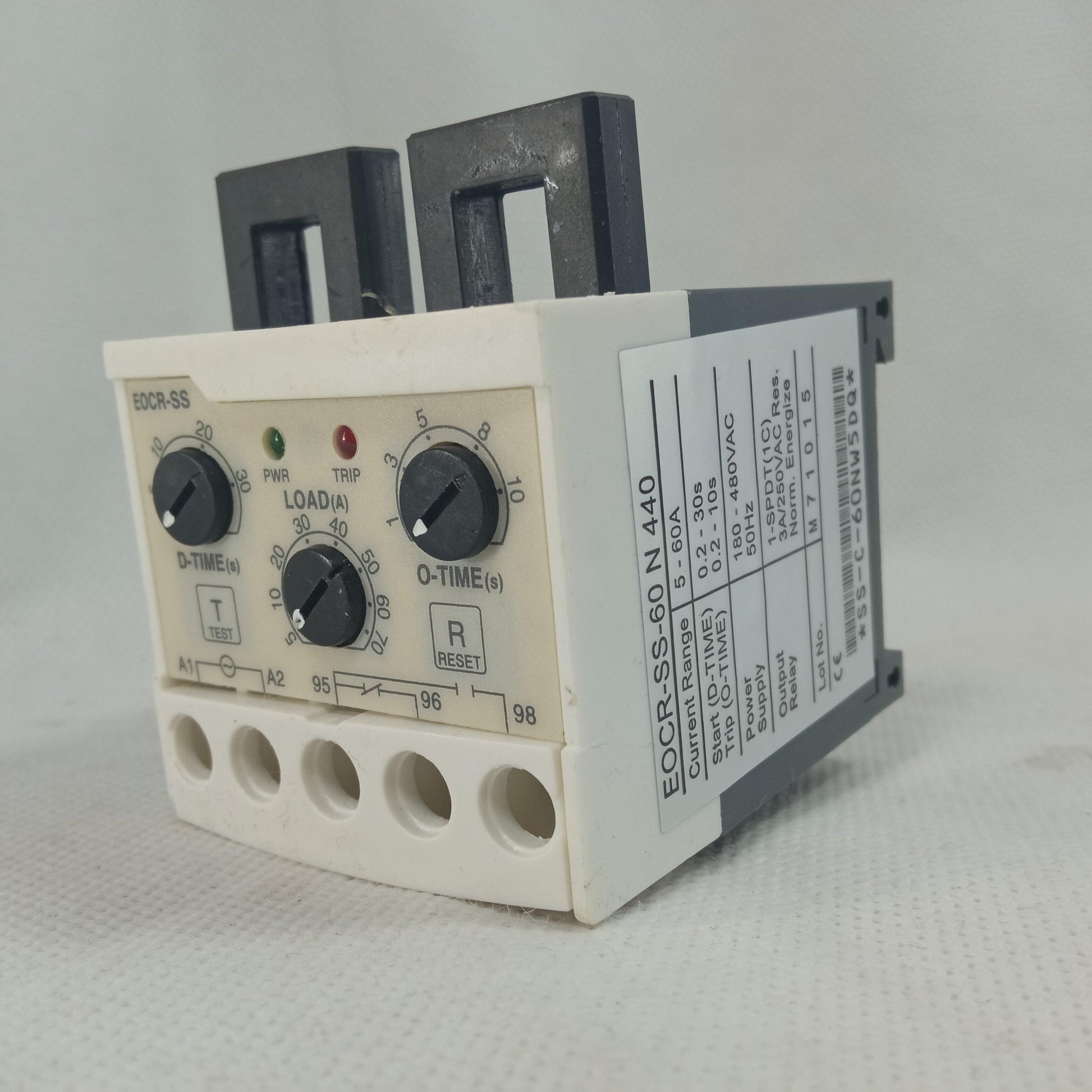

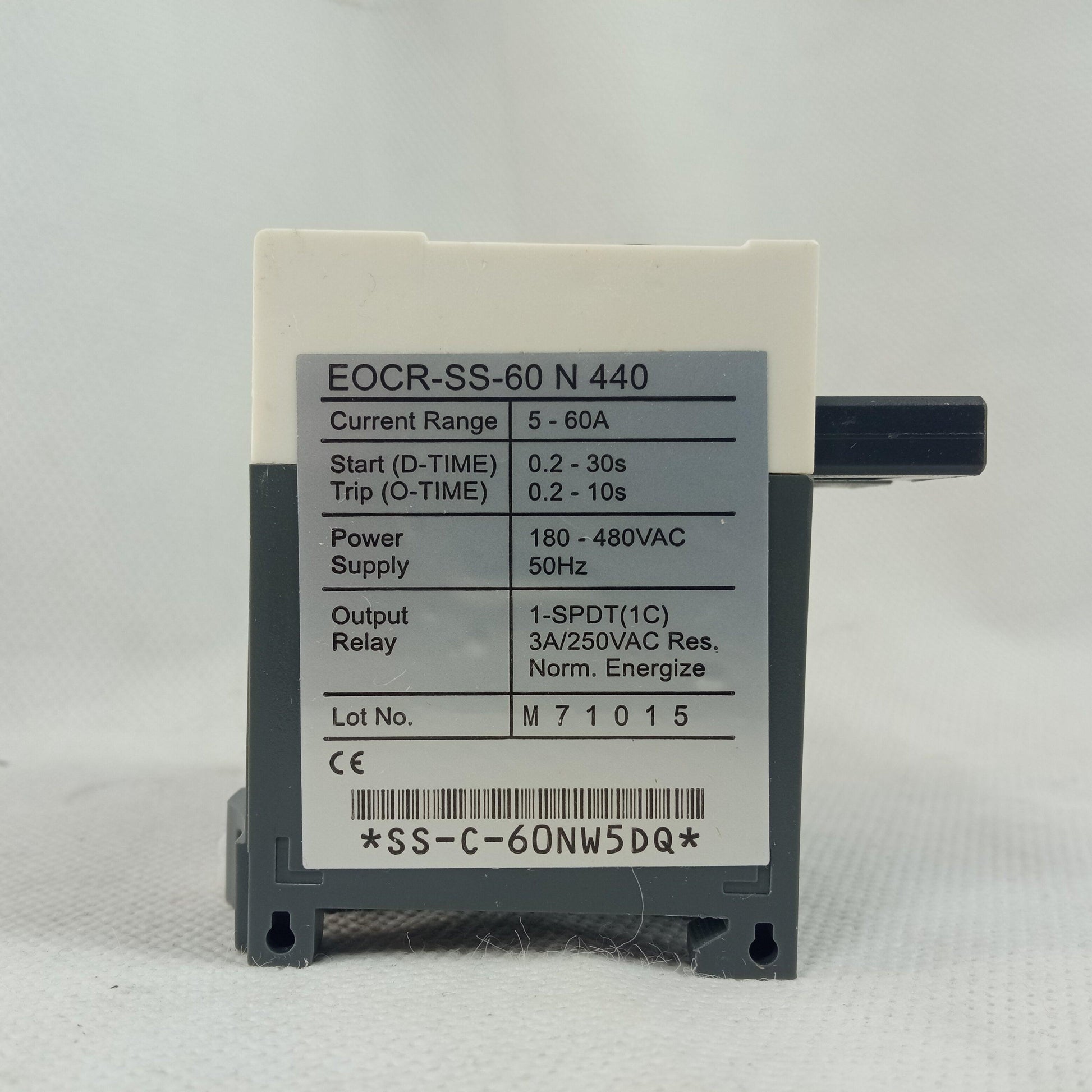

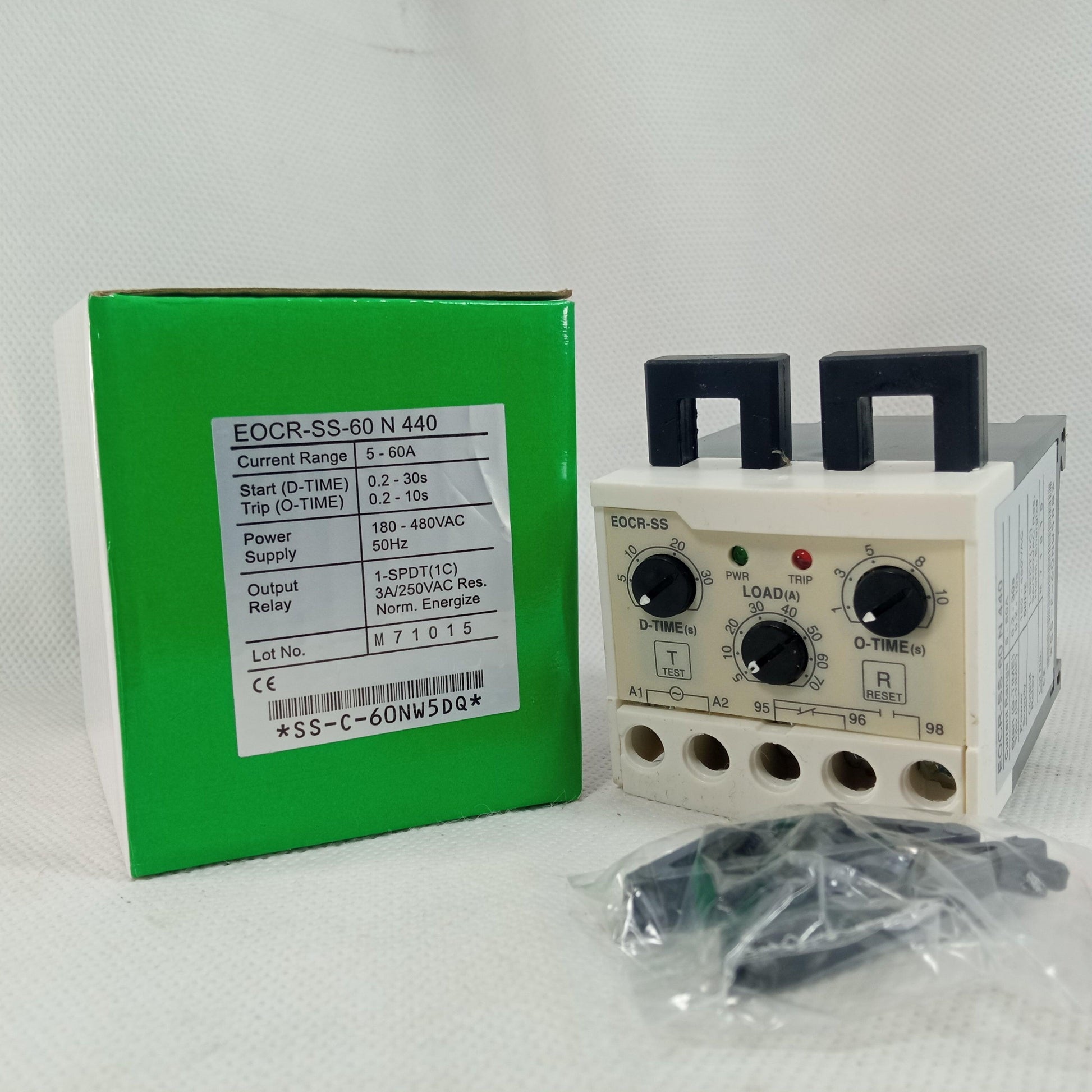

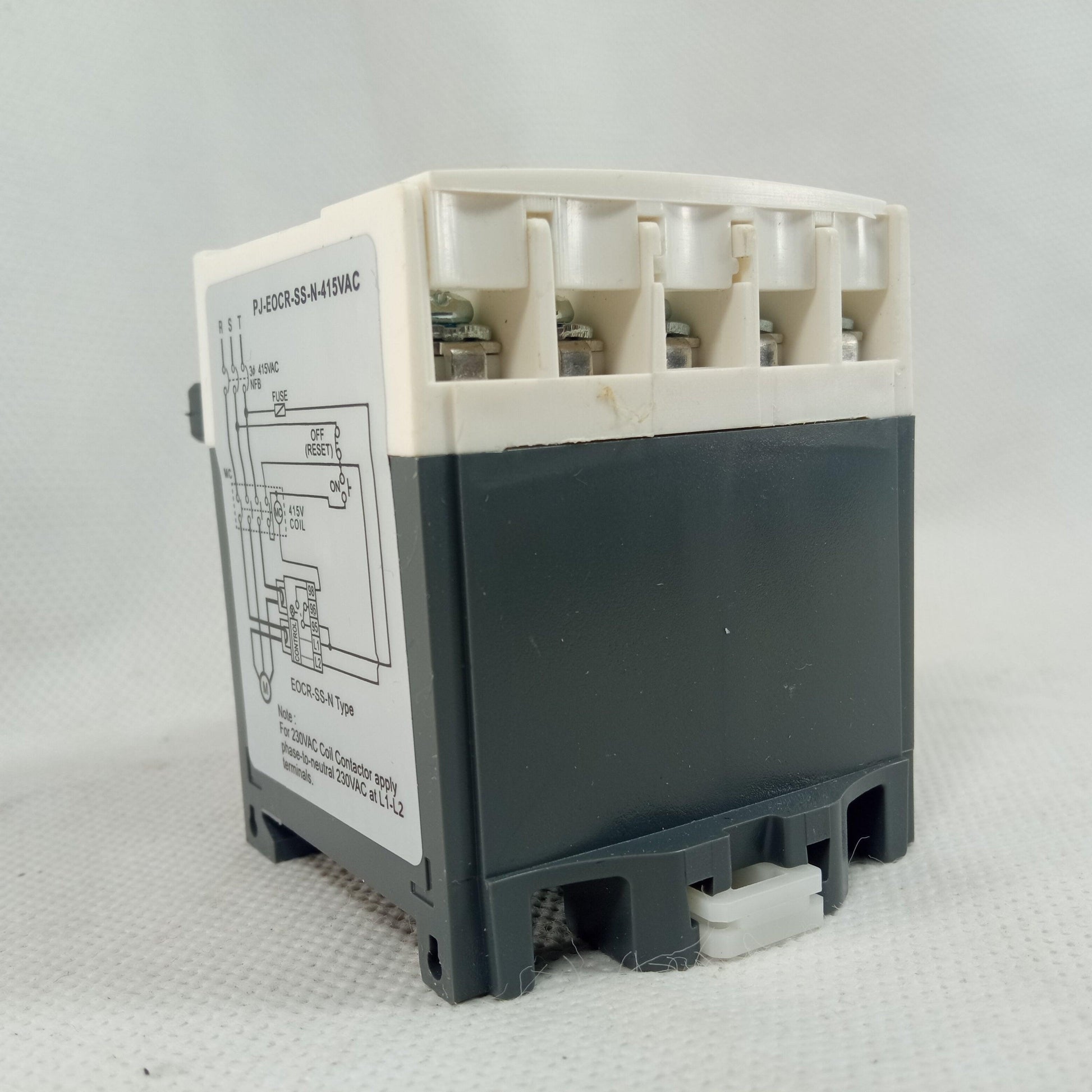

Electronic Over Load Relay EOCR-SS 5 - 70Amp in Pakistan

1 total reviews

Regular price Rs 935
Regular price Rs 1,300 Sale price Rs 935
Sale Sold out
BR1426-b212

 Overload and Phase Loss Protection  2 Integral Current Transformers  Electronic Shear-pin function  Independently Adjustable Starting Trip Delay (D-Time) & Overload Trip Delay Time (O-Time)

Features:

  • Compact Design
  • Overload / Phase Loss / Locked Rotor Protection
  • Independently Adjustable Starting Trip Delay & Operating Time
  •  Wide Current Range:0.1~600A
  •  Wide Operating Voltage Range
  •  PWR & Trip Indication LED
  • Manual / Electric Reset
  •  Ambient Insensitive
  • Low Energy Consumption

Specification:

  • Usage: Protective
  • Contact Load: Low Power
  • Theory: Electronic Overload Relay
  • Model Number: EOCR-SS
  • is_customized: Yes
  • Protect Feature: Sealed
  • Power Source: AC
  • Power supply: 180v AC to 440v AC
  • Current Range: 0.5A-6.5A and 5A-70A (both available)
  • Time Characteristics: Definite Time
  • Power Consumption: Under 2W
  • Operation Time:0.2-30SECONDS O-TIME:0.2-10SECONDS
  • Accuracy:plus-minus 10% Time:plus-minus 15% of max. time set value
  • Size: Miniature
  • Current Sensing:2 CTs
  • Mounting:35mm Din Rail or Panel
  • Reset: Manual or remote electrical by interrupting the supply

Package Includes:

1 x  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp

Industryparts.pk Best Online Shopping website for  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp. Here you get  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.



Description

 Overload and Phase Loss Protection  2 Integral Current Transformers  Electronic Shear-pin function  Independently Adjustable Starting Trip Delay (D-Time) & Overload Trip Delay Time (O-Time)

Features:

  • Compact Design
  • Overload / Phase Loss / Locked Rotor Protection
  • Independently Adjustable Starting Trip Delay & Operating Time
  •  Wide Current Range:0.1~600A
  •  Wide Operating Voltage Range
  •  PWR & Trip Indication LED
  • Manual / Electric Reset
  •  Ambient Insensitive
  • Low Energy Consumption

Specification:

  • Usage: Protective
  • Contact Load: Low Power
  • Theory: Electronic Overload Relay
  • Model Number: EOCR-SS
  • is_customized: Yes
  • Protect Feature: Sealed
  • Power Source: AC
  • Power supply: 180v AC to 440v AC
  • Current Range: 0.5A-6.5A and 5A-70A (both available)
  • Time Characteristics: Definite Time
  • Power Consumption: Under 2W
  • Operation Time:0.2-30SECONDS O-TIME:0.2-10SECONDS
  • Accuracy:plus-minus 10% Time:plus-minus 15% of max. time set value
  • Size: Miniature
  • Current Sensing:2 CTs
  • Mounting:35mm Din Rail or Panel
  • Reset: Manual or remote electrical by interrupting the supply

Package Includes:

1 x  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp

Industryparts.pk Best Online Shopping website for  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp. Here you get  Electronic Over Load Relay (EOCR-SS) 5 - 70Amp at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
