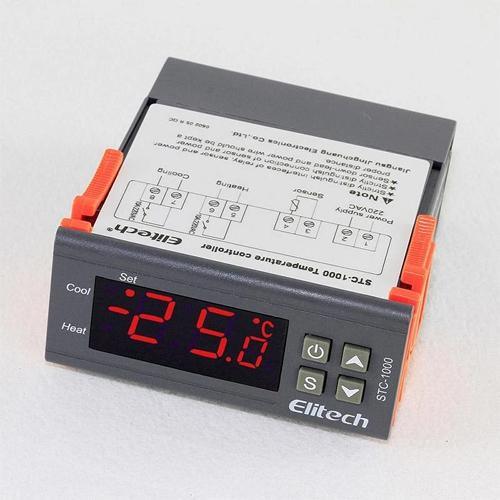

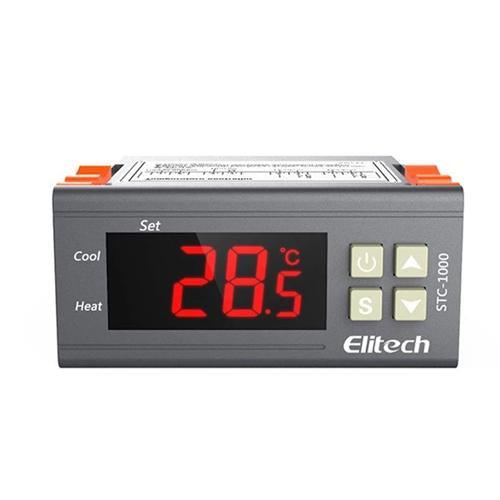

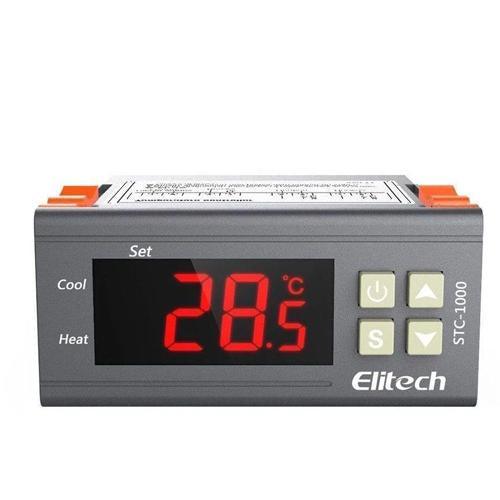

Thermostat Temperature Controller Elitech STC-1000 main functions as below: Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when the temperature exceeds temperature limit or when sensor error occurs.

Technical Parameters:

1. Temperature measuring range: -50℃~99℃;
2. Resolution: 0.1℃;
3. Accuracy: ±1℃ (-50℃~70℃);
4. Sensor error delay: 1 minute
5. Power supply: 110 VAC±10%, 50/60Hz;
6. Power consumption: less than 3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/110VAC;Heat 10A/110VAC;
9. Ambient temperature: 0~60℃;
10. Storage temperature: -30~75℃;
11. Relative humidity: 20%~85% (No condensate).


Specification:

•  Front panel size: 75(L)×34.5(W)mm;
•  Mounting size: 71(L)×29(W)mm;
•  Product size: 75(L)×34.5(W)×85(D)mm;

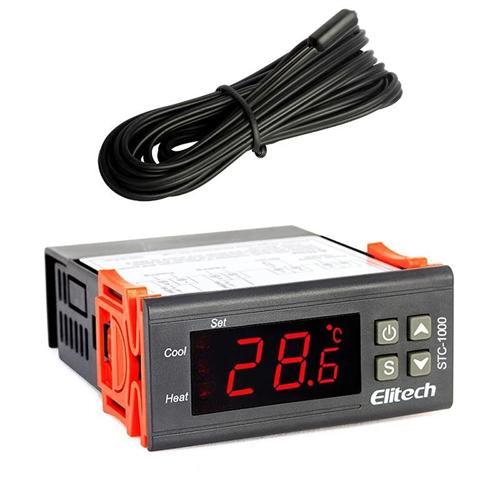

•  sensor length 2 m included;
•  Measure range: -50℃+99℃
•  Mounting size: 71*29 mm
•  Auto switch between refrigerating and heating
•  Return difference value

Industryparts.pk Best Online Shopping website for Elitech STC-1000 110V Thermostat Temperature Controller Incubator Aquarium Cold Chain. Here you get Elitech STC-1000 110V Thermostat Temperature Controller Incubator Aquarium Cold Chain at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x STC-1000 Thermostat Temperature Controller Aquarium (Elitech)
