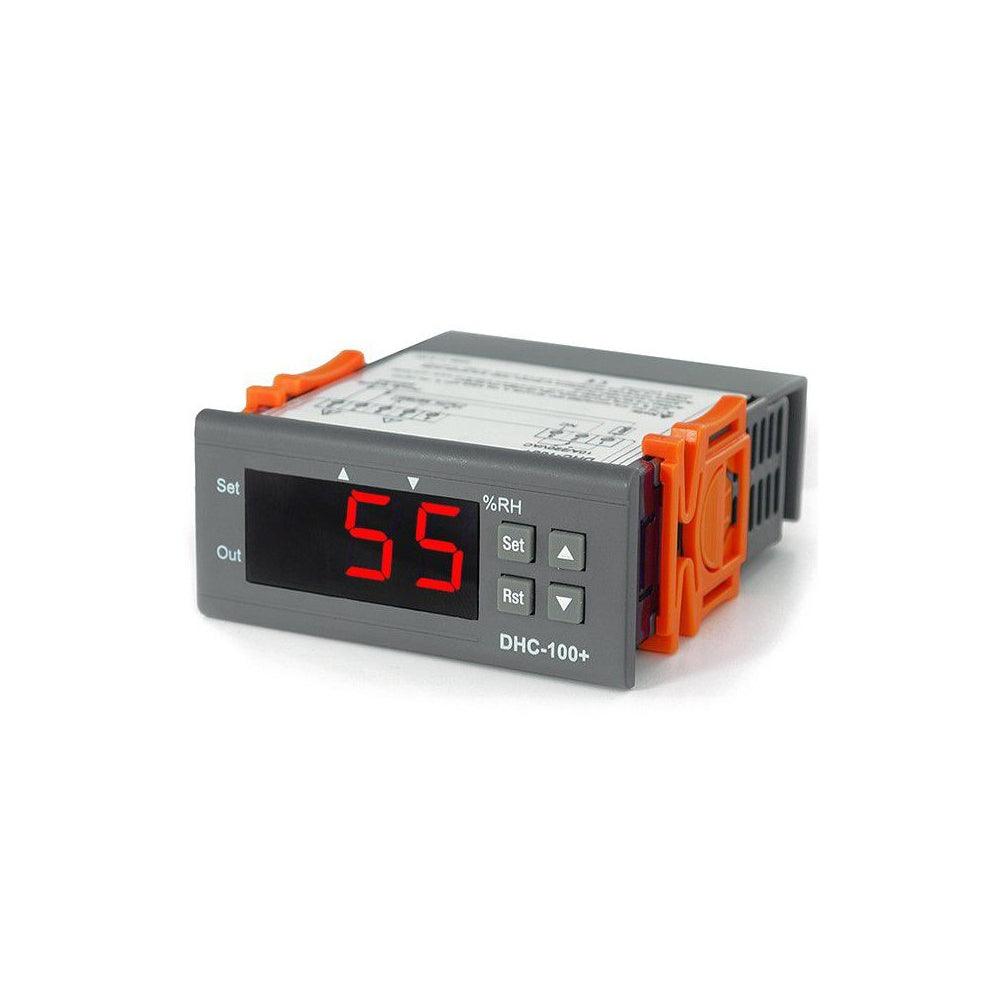

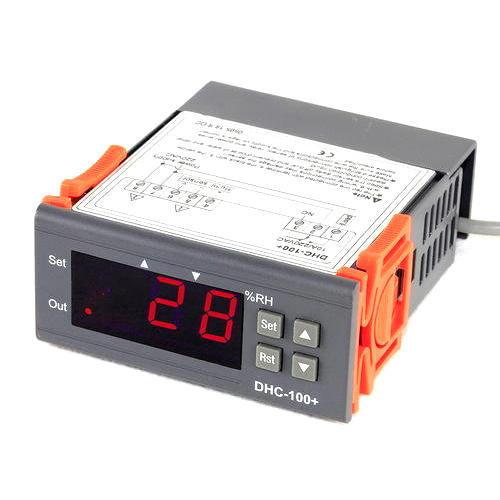

DHC-100 adopts the integrated circuit type humidity sensor, with all the advantages of high sensitivity, fast response, and excellent coherence, mainly used to measure, display and control the humidity.
Specifications:
- Model number DHC-100+ series
- Supply voltage 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc
- Humidity measuring range 0%-99%RH
- Humidity control range 10%-99%RH
- Resolution 1%RH
- Humidity accuracy 25℃: ±(5%RH+0.5digit)
- 10-40℃ 0%-59%RH: ±(6%RH+0.5digit)
- 10-40℃ 59%-99%RH: ±(8%RH+0.5digit)

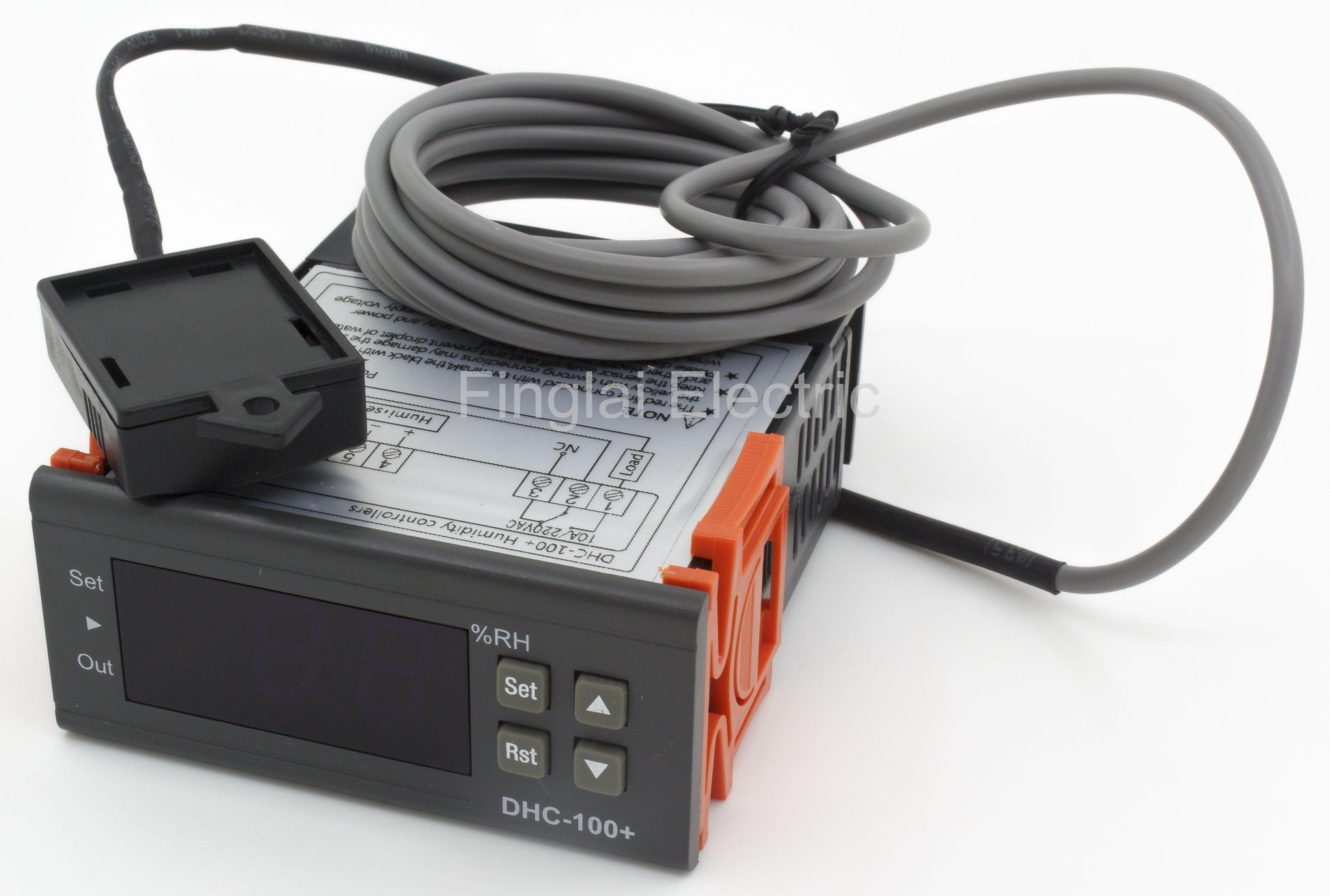

- Input types HTG3515CH temperature humidity sensor, length is 2m (include the probe)
- Sensor Stability ±0.5%RH/year
- Output types One SPDT electromagnetic relay
- Relay contact rating 10A at 250VAC, Max.single-phase load is 0.5HP/220VAC
- Power consumption Less than 3W
- Front panel IP rating IP54
- Insulation resistance 500M ohm min
- Withstand voltage 2KV 50Hz for 1min, no breakdown and flashover phenomenon
- Vibration resistance (10-5-10) Hz, 2G, 3min vibration, work normally
- Operating temperature 0 to 60 ℃
- Operating humidity 20-85% RH max, non-condensing
- Storage temperature -30 to 75 ℃
Features:
- Humidification, dehumidification mode optional.
- Adopt an integrated circuit humidity sensor, with high sensitivity, fast response, good consistency, and so on.
- Keypad lock function.
- After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time.
- Alias name DHC-100+ hygrostat
Package Include:
1x Humidity Controllers DHC-100+ series
