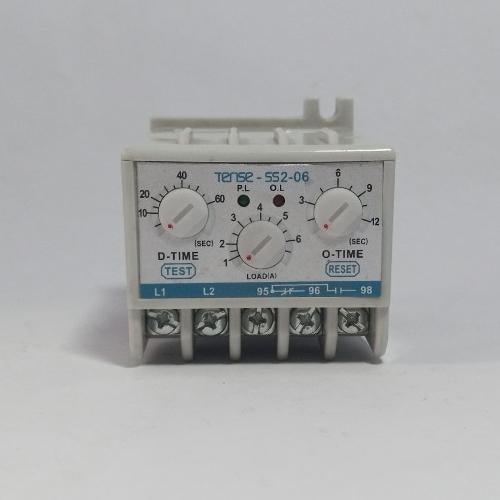

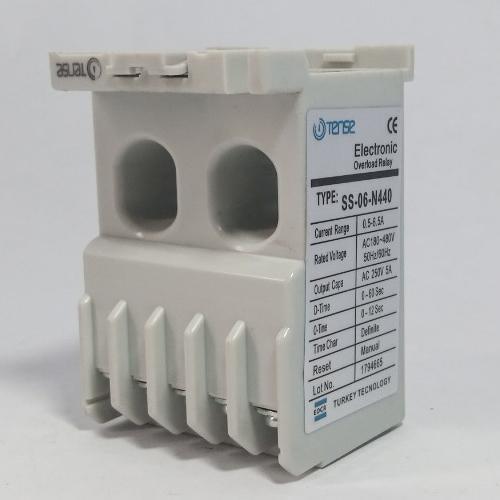

Electronic Over-Current Relay Tense-SS2-06compares the motor current with a preset load current threshold (LOAD). Motor currents are monitored through two internal current transformers. Please don't allow excessive force on CTs.D-Time counts down and is only available for motor starting. During steady-state, if the motor current is greater than the current setting(overloaded).
Features:

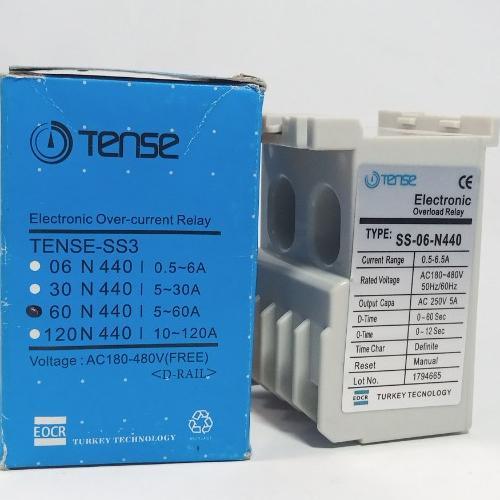

- Overcurrent Monitoring & Tripping: Suitable for direct use from 06 N 440 to 5HP (with 0.5-6A relay) and up to 30 N 440 (5-30A relay) or 60 N 440 (5-60A) up to 120 N 440 motors (with 10-120A relay)
- Protection against phase-loss (Single Phase operation)
- Shock Relay
- Ammeter reading
- No-Volt Relay
- UL Approved
- Mounting: Surface or DIN Rail

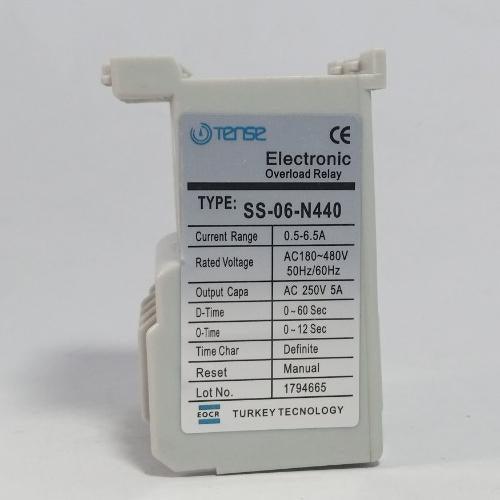

Specification:
- Product name: Electronic Over-Current Relay Tense-SS2-60
- Model: SS2-06-N440
- Rest: Manual
- Manufactured: China
- Usage: Protective
- Theory: Electronic
- Protection: Overcurrent, Undercurrent, Overvoltage, Under voltage, Ground Fault
- Current: 0.5A~6.5A
- Voltage range: 180v-480v AC
- Lot No:1794665
Industryparts.pk Best Online Shopping website for Electronic Over-Current Relay Tense-SS2-06 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Electronic Over-Current Relay Tense-SS2-06
