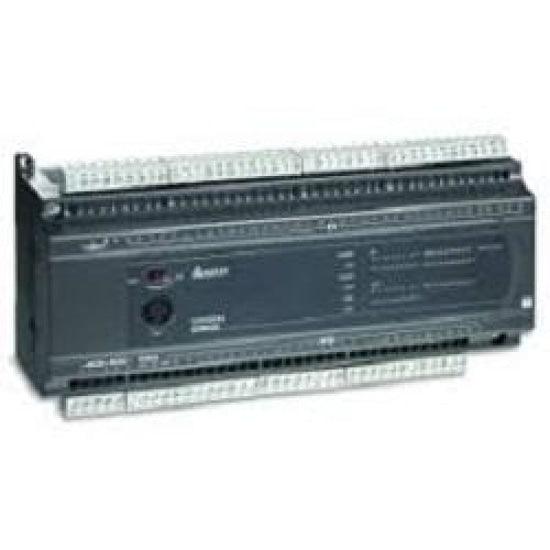

DVP60ES200R Delta PLC 100-240VAC 36DI 24DO in Pakistan

2 total reviews

Regular price Rs 33,075
Regular price Rs 34,450 Sale price Rs 33,075
Sale Sold out
BR1776-W-HL-B208

A programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Features:

  • MPU points: 16 / 20 / 24 / 32 / 40 / 60
  • Program capacity: 16k steps
  • Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
  • Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
  • DVP-EX2 MPU is built-in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
  • New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
  • Application in the emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
  • Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta@@s AC motor drives
  • Password protection: Password for the subroutine, user ID, restriction on trial times
  • Highly efficient instruction execution
  •

Specifications:

  • Model Item: 16ES2
  • 00_24ES2:00_32ES2:00_40ES2:00_60ES2
  • 00_20EX2:00_32ES2:11T
  • Power supply
  • voltage 100 ~ 240VAC (-15% ~ 10%), 50/60Hz + - 5%
  • 24VDC
  • (-15~+20%)
  • Connector European standard removable terminal block (Pin pitch: 5mm)
  • Operation
  • ES
  • 200
  • DVP-ES2 starts to run when the power rises to 95 ~ 100VAC and stops
  • when the power drops to 70VAC.
  • ES:211
  • DVP-ES2 starts to run when the power rises to 20.4VDC~28.8VDC and
  • stops when the power drops to 17.5VDC.
  • Power supply fuse
  • 2A/250VAC
  • 2.5A / 30VDC,
  • Poly switch
  • Power consumption
  • 30VA 1.8W
  • DC24V current output
  • 500mA /
  • Power supply protection
  • DC24V output short circuit protection /
  • Voltage withstand
  • 1,500VAC (Primary-secondary), 1,500VAC (Primary-PE),
  • 500VAC (Secondary-PE)
  • Insulation resistance
  • > 5M? at 500VDC (between all I/O points and ground)
  • Noise immunity
  • ESD: 8KV Air Discharge
  • EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 1KV
  • RS: 26MHz ~ 1GHz, 10V/m
  • Environment
  • Operation: 0°C~55°C (temperature), 50~95% (humidity), pollution degree 2
  • Storage: -25°C~70°C (temperature), 5~95% (humidity)
  • Agency approvals
  • UL508
  • European community EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC
  • Vibration/shock immunity
  • International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 &
  • IEC 68-2-27 (TEST Ea)
  • Weight (g) R 377 414 489 554 696 462 /
  • T 351 387 432 498 614 442 321

Packages Include:

 1 x DVP60ES200R Delta PLC 100-240VAC 36DI 24DO

Industryparts.pk is the Best Online Shopping website for DVP60ES200R Delta PLC 100-240VAC 36DI 24DO. Here you get DVP60ES200R Delta PLC 100-240VAC 36DI 24DO at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
