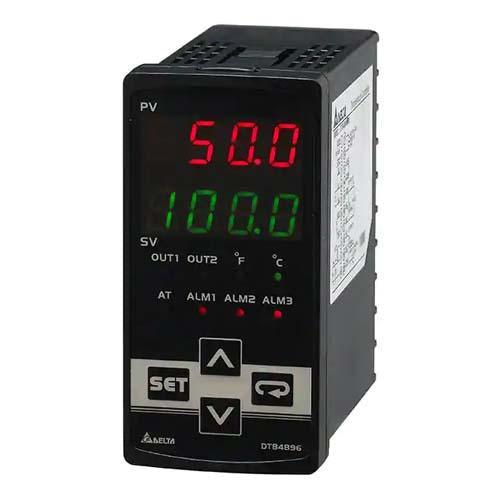

DTB4896CR Temperature Controller in Pakistan

BR6642

Rs 16,800
Rs 16,800
Sale Sold out

DTB4896CR Temperature Controller in Pakistan BR6642

Description

Compared with the DTA series, DTB is additionally equipped with linear voltage signal output and dual output control, capable of executing heating and cooling controls simultaneously in a temperature control system and fast reaching the target temperature.

Features:

  • 3 groups of alarm outputs
  • Two groups of outputs to auto-tune 2 groups of PID parameters
  • Sampling rate: Analog input: 0.15 sec, Thermocouple or platinum RTD 0.4 seconds
  • Built-in dual loop output control for heating / cooling (RS485 digital comm. 2.400 - 38.400bps)

Specifications:

SERIES DTB series
SUPPLY VOLTAGE 100 - 240 VAC
FREQUENCY 50/60 Hz
INDEX PROTECTION IP IP65
PANEL SIZE (MM) - W X H 48 x 96
THERMOCOUPLE Type (K-J-T-E-N-R-S-B-L-U-TXK) - Platinum RTD: Pt100, JPt100
DESCRIPTION Advanced temperature controller
LCD DISPLAY Process Value (PV) Red color - Setpoint (SV) Green color
OUTPUT 1 4 - 20mA
OUTPUT 2 Relay


Brandrethroad.pk is the Best Online Shopping website for DTB4896CR Temperature Controller. Here you get the DTB4896CR Temperature Controller at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x DTB4896CR Temperature Controller
