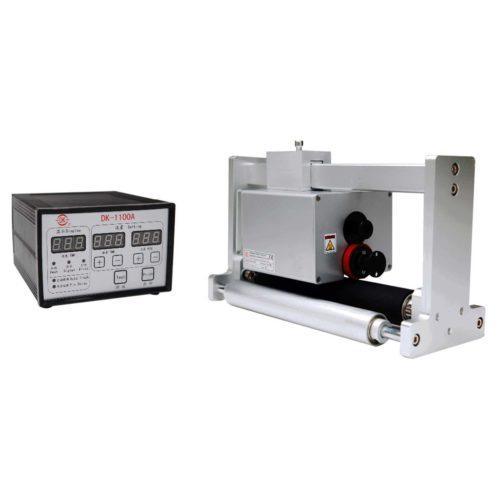

DK-1100A Ink Roll Coding Machine was developed by DIKAI own R&D team, in the past 11 years, comulative sales quantity has reached 100,000 sets.Compact in structure, convenient in assembling and using, fast in printing with large printing cover, flexible in formatting types, and much shorter in the minimum printing distance, it has widely used in food, daily chemicals and paper, drug, seeds industries. Adopts LCD touch screen, greatly extend use life of the controller, even no need maintanence.

Features:




• Type: Coding Machine, Printing machine

• Condition: New

• Automatic Grade: Film Driven

• Application: Machinery & Hardware

• Place of Origin: Shanghai, China (Mainland)

• Brand Name: DK

• Model Number: DK-1100A Coding Machine

• Packaging Material: Paper

• Driven Type: Mechanical

• Voltage: AC 220V

• Power: 130W

• Weight: 3KG

• Certification: CE; ISO9001:2008

• After-sales Service Provided: Overseas third-party support available

• Max Speed: 300prints/minute




Specification:



SPECIFICATIONS FOR DK-1100A Hot Ink Roll Coder
Print Area	Axial=40mm; Radial=45.5mm	Pouch Length	?38mm (4-up printer)
	T-type (Axial) up to 13lines, max 20characters/ line		?75mm (2-up printer)
	R-type (Radial) up to 10lines, max 13characters/line	Type of Print Head	Right-hand (Clockwise)
Font Size	T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm		Left-hand (Counter-clockwise)
	R-type 3.5mm*3.5mm, 4.5mm, 5.5mm	Control Box	LED display
Print Speed	up to 300 prints/minute	Ink Roll Required	¢36*40mm
Surface Speed	up to 35 meters/minute	Electrical	AC100-230V, 50/60Hz
Weight	Print Head 2.0kg Control box 1.0kg	Power	130W, 2A Fuse
Dimensions	Print Head 120mm*100mm*170mm (L*W*H)    Ctrol Box 180mm*180mm*102mm (L*W*H)	Temperature Range	4°c-40 °c



Package Include:

 1 x DK-1100A Ink Roll Coding Machine
