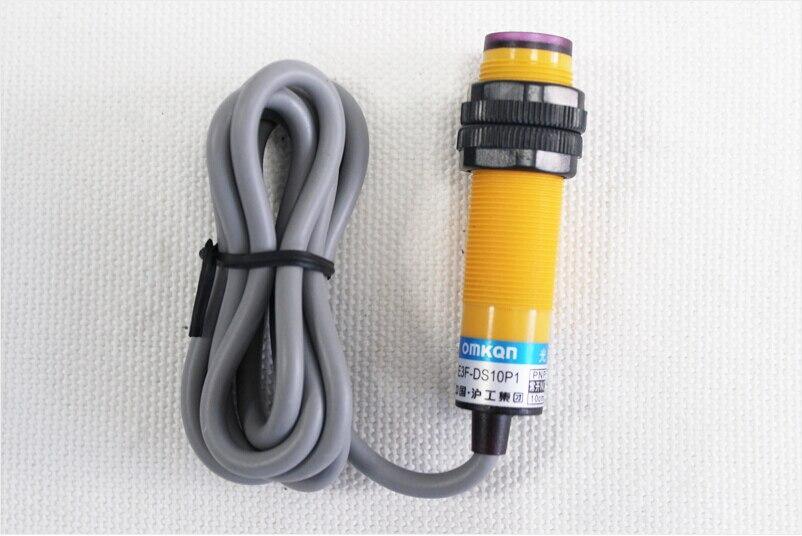

Diffuse reflection Type photoelectric switch sensor E3F-DS10Y1 in Pakistan BR2957
Specification:
| Product Name | Photoelectric Switch |
| Model | E3F-DS10Y1 |
| Detection Distance | 10cm±10% |
| Work Voltage |
90-250V AC |
| Detection target | Opaque |
| Output |
2-wire NO |
| Ambient Temperature |
Operating:-30 - 65 Degree Storage:-25 - 70 Degree |
| Response Time | 1ms |
| Output Current: |
300mA |
| Size | 18mm |
| Circuit protection | Reverse connection protection, surge absorption, load short-circuit protection |
| Source | 660nm infrared light |
| Crust Material | ABS |
|
|
Packages Include:
1 x Diffuse reflection Type photoelectric switch sensor E3F-DS10Y1
