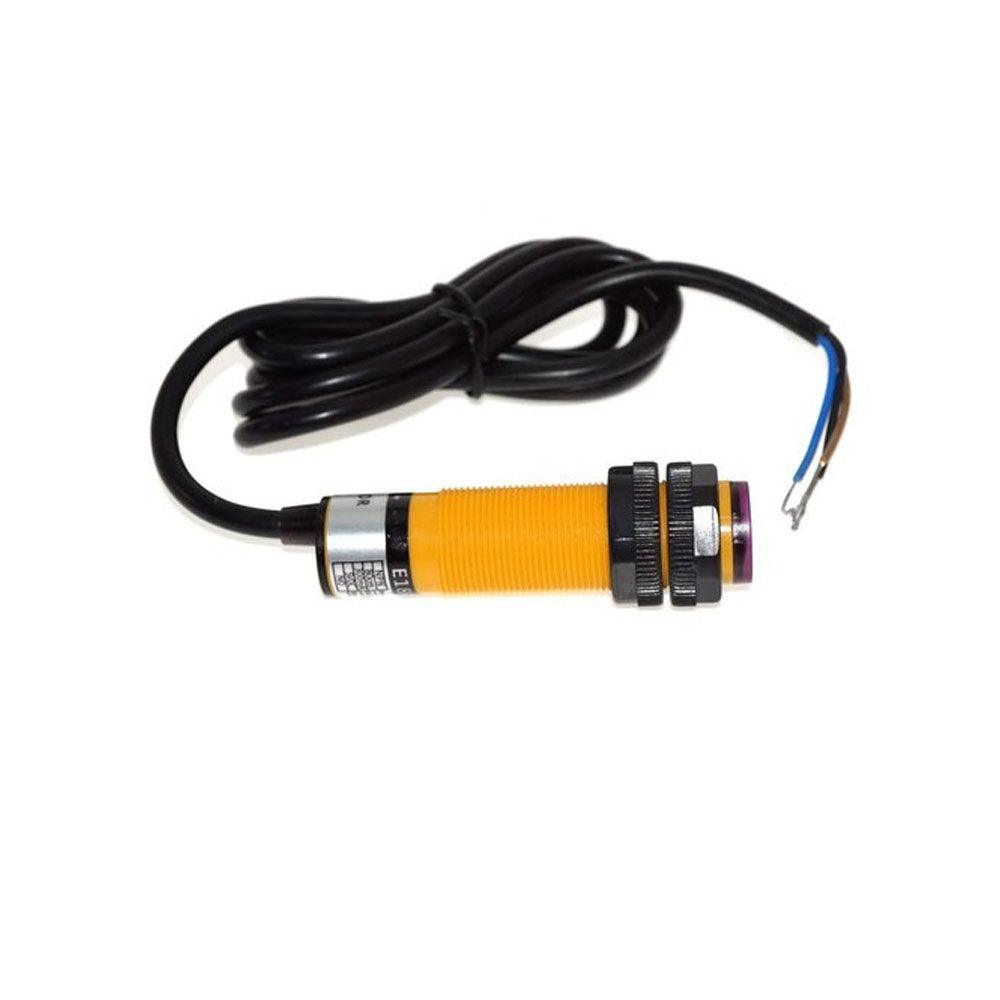

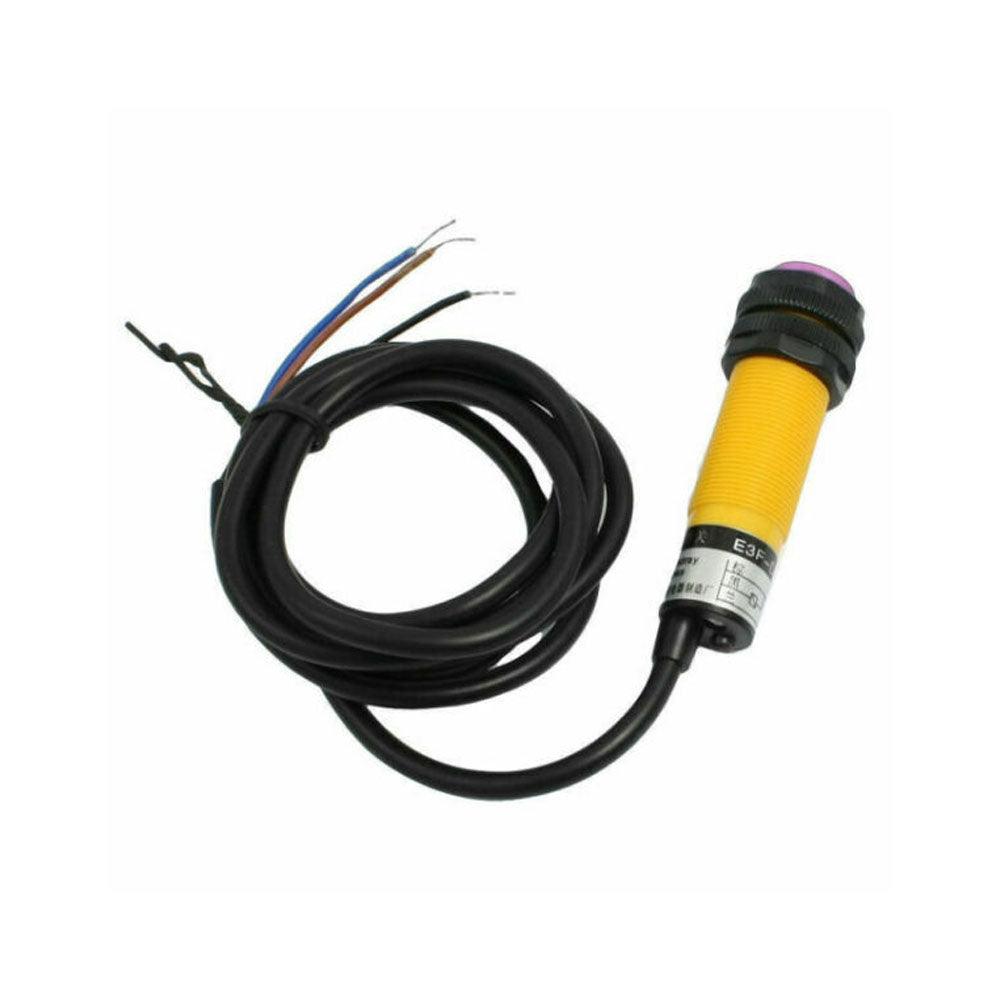

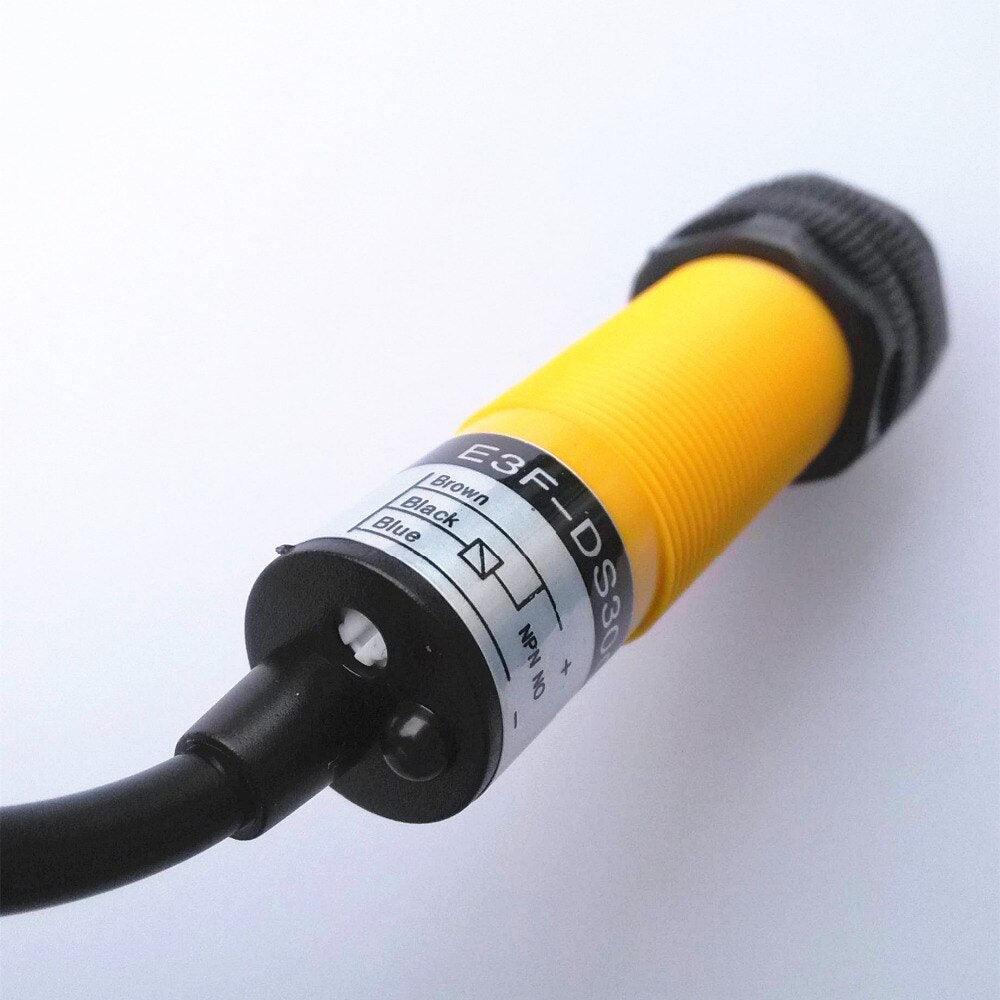

E3F-DS30B4  photoelectric sensor, or photo eye, is the equipment used to discover the distance, absence, or presence of an object by using a light transmitter, often infrared, and a photoelectric receiver. They are largely used in industrial manufacturing.

Omron Photoelectric Sensor Diffuse Reflective 0.3 (Adjustable) m Detection Range PNP

Specification:

• Model number E3F-DS30B4 series
• External dimensions M18x1x67.5
• Sensing method Diffuse reflective
• Detection distance 5-30cm
• Sensitivity adjustment Fixed
• Supply voltage 6-36Vdc; 90-250Vac, 36Vac, 380Vac 50/60Hz
• Rated output current N.P Type: 300mA max; A Type: 400mA; J type: 2A max (contact life: 100000 times)
• Sensing object Opaque object
• Response frequency 300Hz
• Response time 1.5ms max
• Light source Infrared LED (660 nm)
• Leakage current N.P Type: 20mA max; A Type: 1.7mA max
• Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor
• Insulation resistance 50 M? min. at 500 V DC between energized parts and case
• Dielectric strength 1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
• Temperature influence ±10% max. of sensing distance at 23? within a temperature range of -25? to 60? ±15% max. of sensing distance at 23? within a temperature range of -30? to 65?
• Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
• IP Rating IP67
• Material Case: ABS; Sensing surface (lens): PMMA
• Operating temperature -30 to 65 °C (with no icing or condensation)
• Operating humidity Storage: 35% to 95% (without condensation)

Packages Include:

 1 x Diffuse Reflection Photoelectric Sensor PNP NO

Industryparts. pk is the Best Online Shopping website for E3F-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor 3 Wires PNP NO. Here you get E3F-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor 3 Wires PNP NO at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
