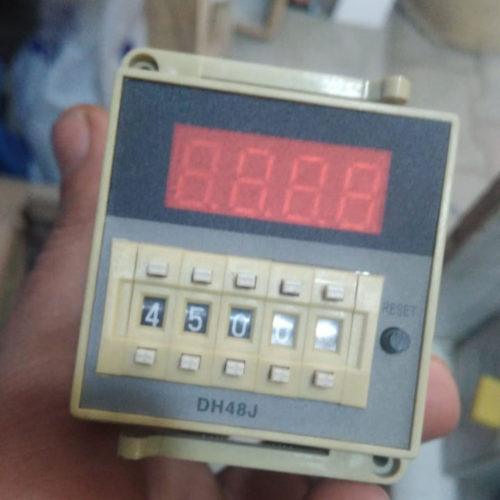

DH48J 8 pin contact/sensor signal input digital counter relay in Pakistan

3 total reviews

Regular price Rs 1,550
Regular price Rs 1,700 Sale price Rs 1,550
Sale Sold out
BR2029- b223

DH48J adopt advanced IC and digital tube can replace H7CN or such function products. With the advantage of beautiful appearance, wide delay time range, high accuracy, low power consumption, long life, big contact rating, used for automatic control.

Specifications:

  • Model number DH48J series
  • Supply voltage 220Vac, 50/60Hz;
  • Mode Count up, count down
  • Input signal Contact, level, sensor (NPN type)
  • Max. counting speed 30 cps
  • Min. counting pulse 15ms
  • No-power memory DH48J-11A: 10 years
  • Control form SPDT
  • Contact rating 5A @ 250Vac, 7A @ 24Vdc
  • Mechanical life 1x107
  • Electrical life 1x105
  • Power consumption 5W max
  • Setting method Dial switch
  • Indication method 8-segment 4-digital display
  • External dimensions 48x48x97mm
  • Punching dimensions 4610x46 10mm
  • Counting error ≤ 1
  • Reset time ≥ 0.05s
  • Power reset ≥ 1s
  • Dielectric strength 2000Vac, 50/60Hz for 1min
  • Insulation resistance 100MΩ min. at
  • 500VDC Termination DH48J, DH48JA: 8 pin; DH48J-11A: 11 pin
  • Mounting Panel, Din rail
  • Matched socket DH48JA,DH48JA: PF083A, DH48J-11A: PF113A
  • Matched sensor NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn
  • M30 4m Sn
  • Operating temperature-10 up to 50°C
  • Humidity 30-85% RH max, non-condensing
  • Alias ​​name DH48J series counting relay, counter relay
fi

Packages Include:

 1 x DH48J 8 pin contact/sensor signal input digital counter relay

Industryparts.pk is the Best Online Shopping website for DH48J 8 pin contact/sensor signal input digital counter relay. Here you get DH48J 8 pin contact/sensor signal input digital counter relay at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
