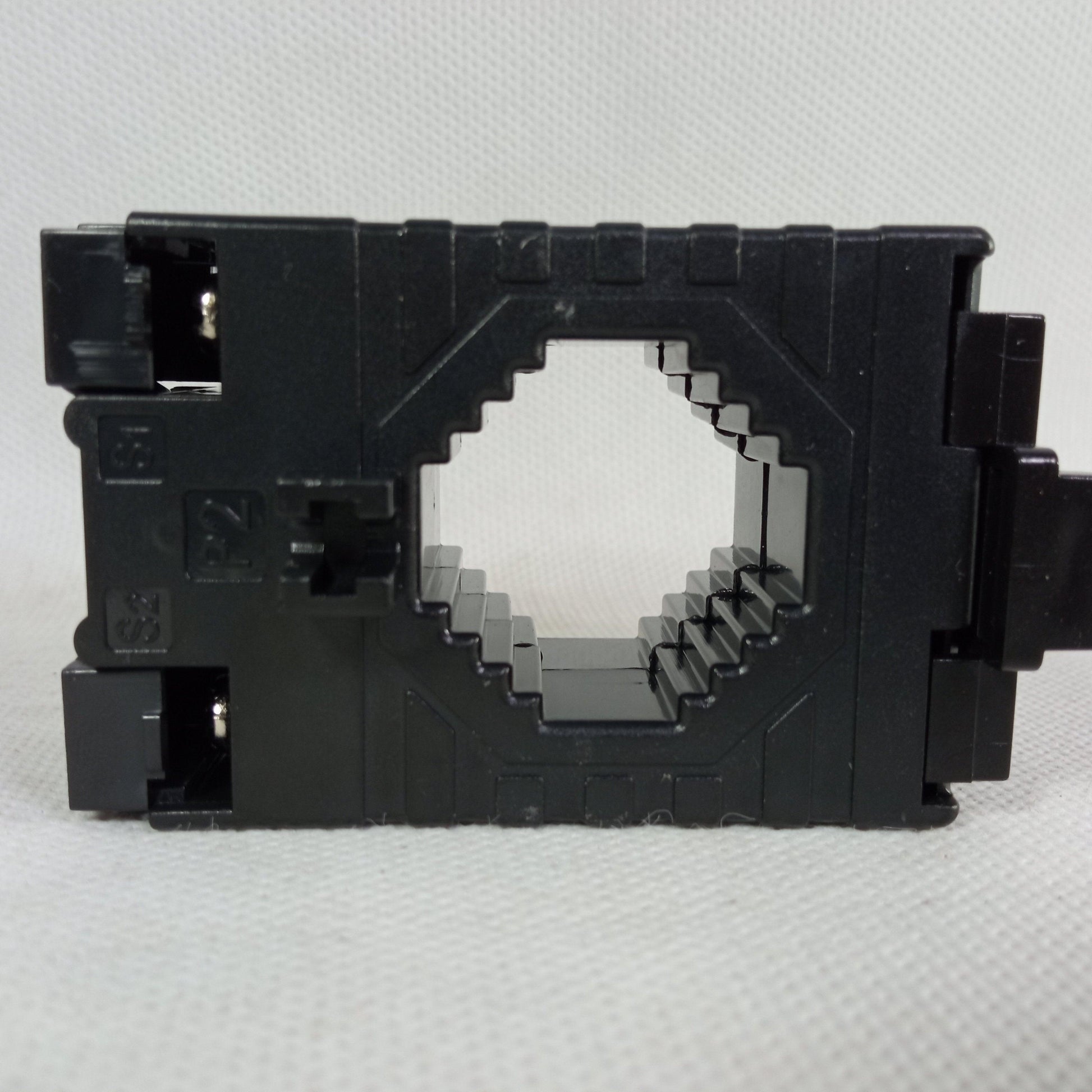

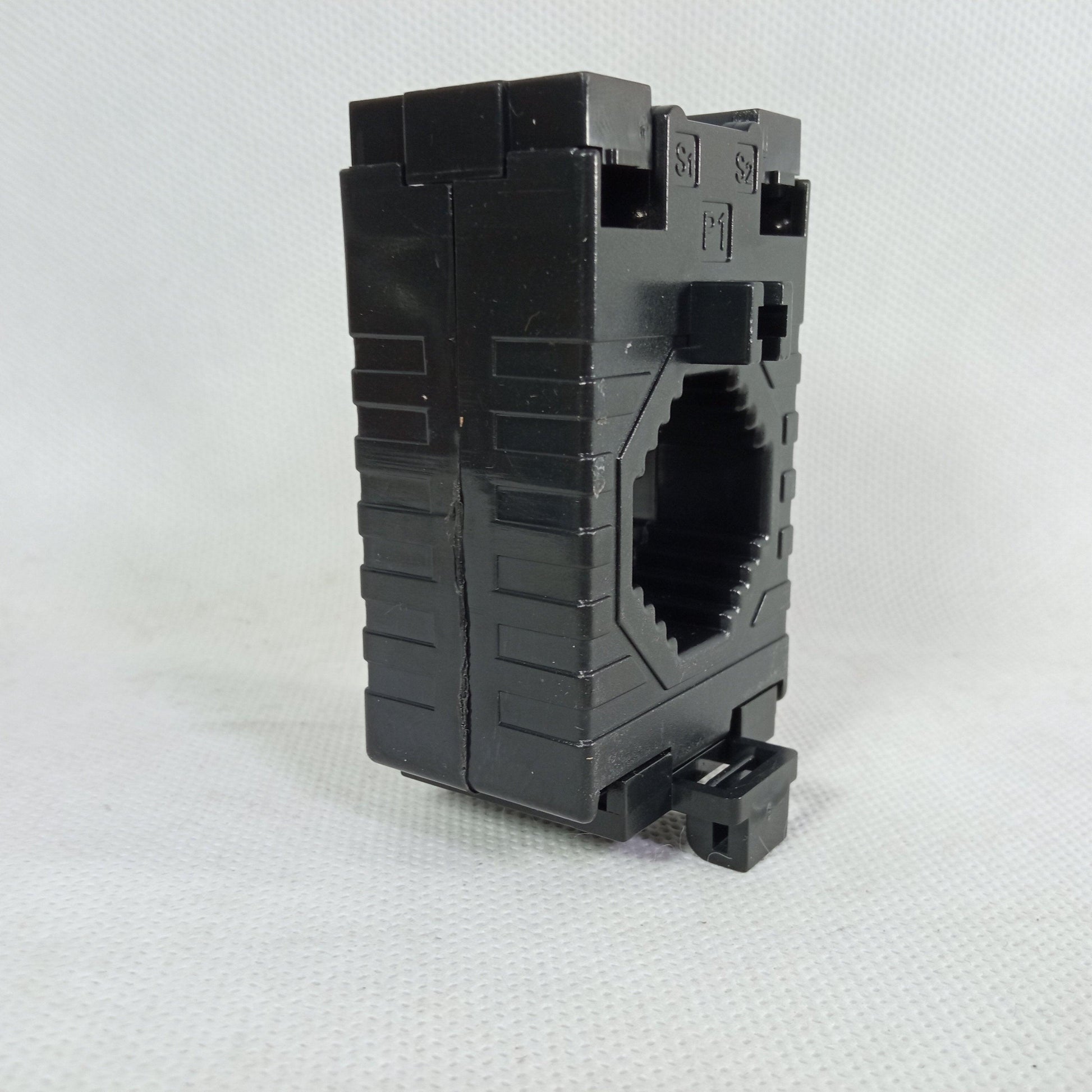

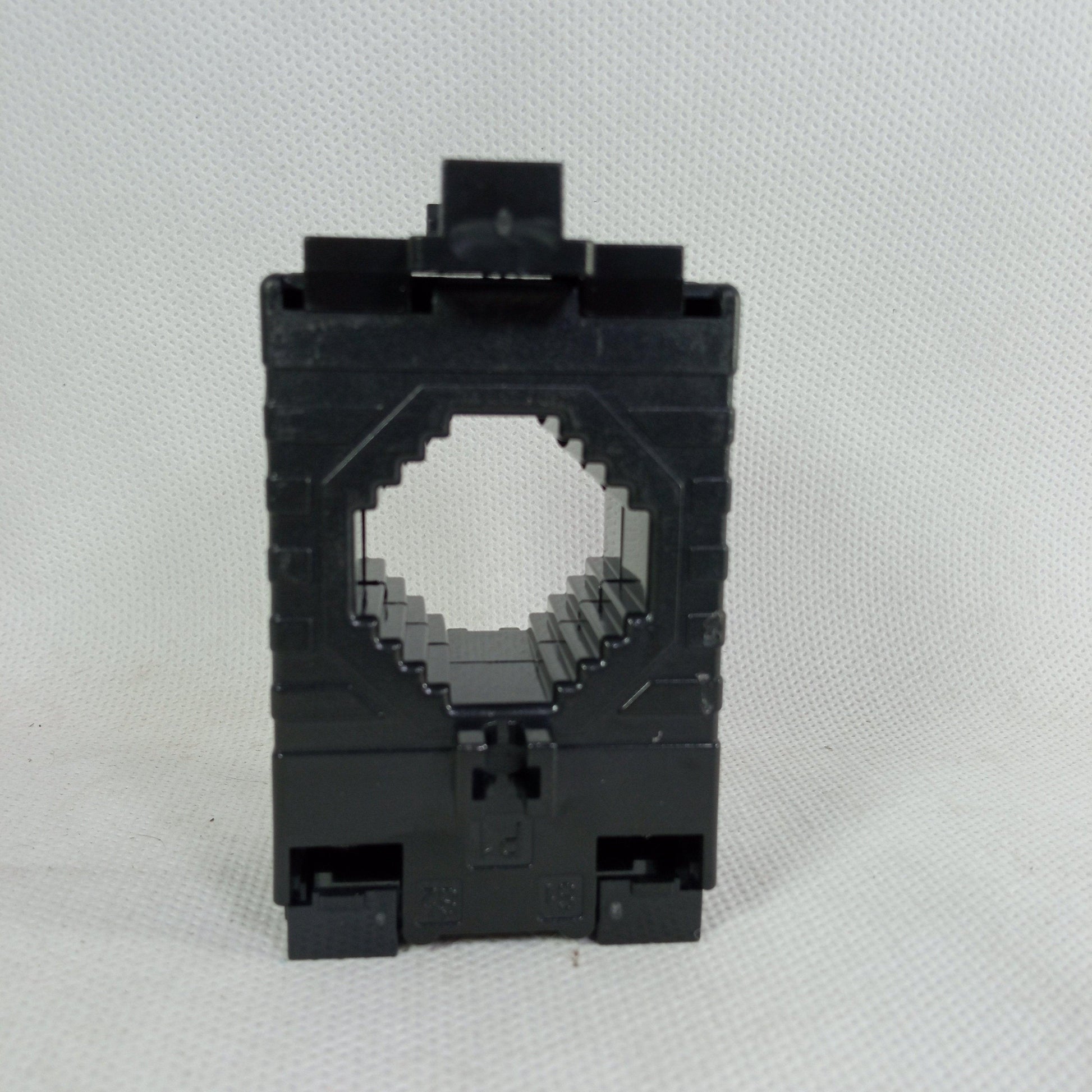

Current Transformer 100/5A in Pakistan

Current Transformer 100/5A Price

This essential electrical component safely steps down a large primary current (up to 100 Amps) to a standard, measurable secondary current of 5 Amps. The 100/5A CT is crucial for safely integrating high-current lines with sensitive monitoring equipment like Ammeters, Energy Meters, and Protective Relays in distribution boards across Pakistan.

Designed typically as a durable Ring Type (Toroidal) unit, it installs easily over the main power conductor, simplifying wiring and enhancing panel safety. Its high accuracy class (specify, e.g., $0.5$ Class) guarantees that your energy consumption and load readings are precise. Investing in a quality Current Transformer like this ensures your billing and protection systems operate reliably, preventing costly errors and system failures in industrial and commercial settings

Features:Current Transformer 100/5A Price

• Standard Ratio 100/5A: Converts primary current (100A) to a safe, measurable secondary current (5A).

• High Accuracy Class: (Specify $0.5\text{ Class}$ or similar) Essential for precise energy metering applications.

• Non-Invasive Measurement: Safely measures current without interrupting the main power circuit.

• Durable Design: Built with robust insulation and core materials for long-term stability and reliability.

• Easy Installation: Typically a Ring/Toroidal type designed for simple mounting on a busbar or over cable insulation.

Specification:

• Transformation Ratio: 100:5 Amps

• Accuracy Class: (Specify, e.g., $0.5\text{ Class}$ or $1.0\text{ Class}$)

• Frequency: $50\text{ Hz}$ (Standard for Pakistan)

• Type: (Specify Ring Type / Toroidal or Split Core)

• Application: Metering and Protection

Uses:

• Energy Metering: Providing accurate current input to digital and analog energy meters for billing.

• Ammeter Connection: Safely connecting high-range Ammeters to distribution panels.

• Protective Relays: Supplying proportional current signals to protective relays for overcurrent detection.

• Load Monitoring: Checking the current consumption of motors, transformers, and industrial machinery.

• Panel Building: Integrating current measurement into new or upgraded electrical distribution boards
