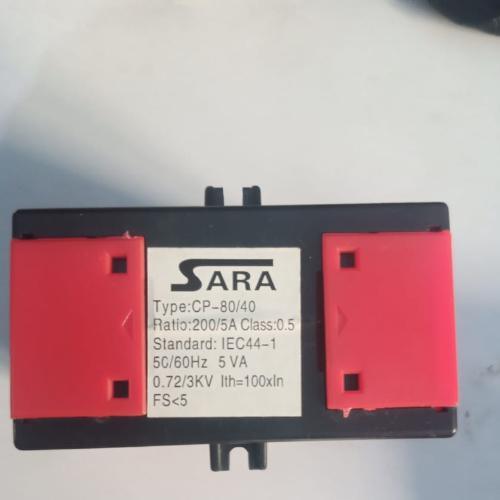

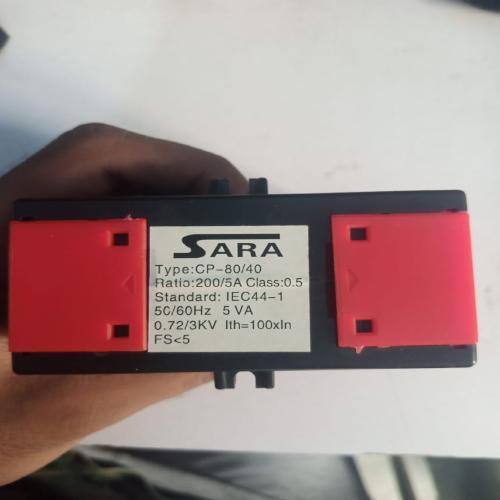

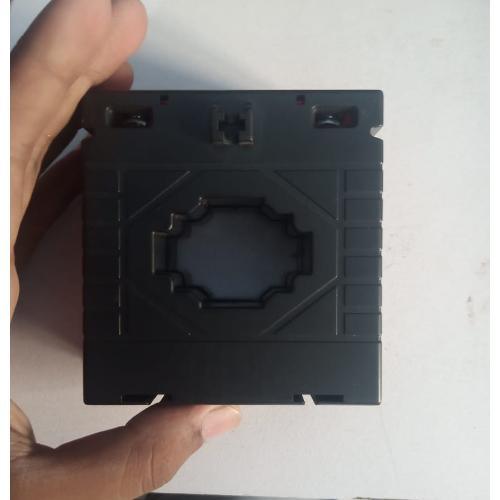

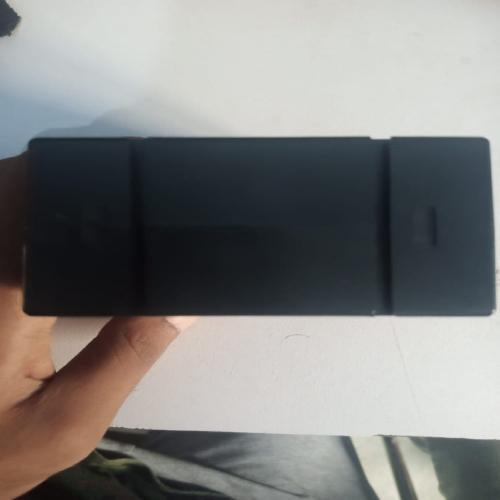

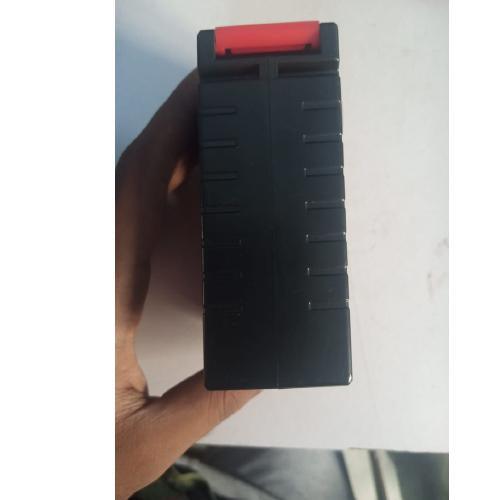

A range of (10 frames) compact design plastic case current transformer. Its volume is much smaller than the general model, integral hinged plate terminal cover. DIN rail mounting all makes this series CT match the requirements in space-limited panels.

Features:

1. Three built-in fixing methods: Side base; DIN rail; Busbar mounting
2. Built-in hinged terminal cover.
3. Compact design
4. Primary current from 5A to 3000A

Specifications:

• Rated frequency                                      50/60Hz
• Rated test voltage                                   3kV AC. (1 min)
• Rated short-time terminal current (Ith)     60In
• Rated dynamic current (Idyn)                   2.5Ith
• Rated voltage (Um)                                 0.72Kv AC.
• Continuous overload (Id)                          1.2In
• Operating temperature                              -10°C--50°C
• Housing self-extinguishing class                VO
• Safety factor                                               FS 5
• Secondary current                                       5A /1A



Type            Ratio                  Burden (VA)                       Case

  (A)                      Class:0.5       Class:1.0                      Qty.(pcs)

MES-80/40      100/5              ---        2.5                             40

MES-80/40      150/5              2.5       3.75                          40

MES-80/40      200/5              3.75       5                             40

MES-80/40      250/5              3.75       5                            40

MES-80/40      300/5               5        5                                40

MES-80/40      400/5               5        10                             40

MES-80/40      500/5               5        10                             40

Our Commitment:

1. BETTER PRICE than other sellers for you because of Factory Direct Sale.
2. BETTER QUALITY than before caused by our 10+ years trading experience.
3. STOCK IN TRADE always owns our Fast & Professional production line.
4. FAST DELIVERY always made by our GROUP's Enthusiasm.
5. TIMING REPLY in 24 hours all about our TEAM's Passion & Patience.

Industryparts.pk is the Best Online Shopping website for Cp-80/40 Current Transformer for Energy Meter Measuring Mes DIN Rail 100/5A 150/5A. Here you get a Cp-80/40 Current Transformer for Energy Meter Measuring Mes DIN Rail 100/5A 150/5A at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan

Package Includes:

1 x Cp-80/40 Current Transformer for Energy Meter
