PR-18 5DP Proximity Sensor PNP

SKU:BR2632-A

Regular price Rs 1,350
Regular price Sale price Rs 1,350
Sale Sold out

PR-18 5DN Proximity Sensor NPN in Pakistan BR2632

Description:

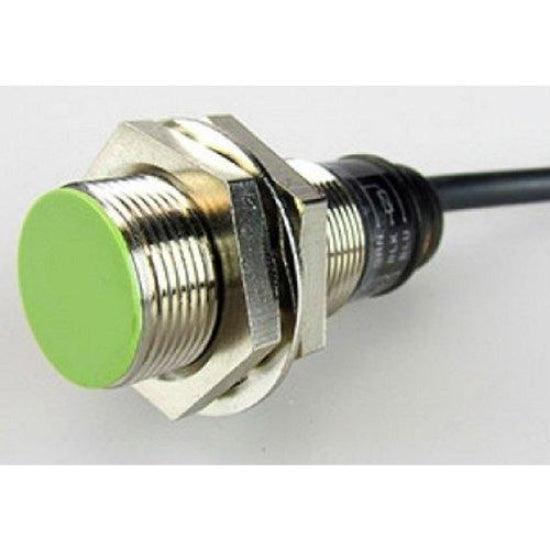

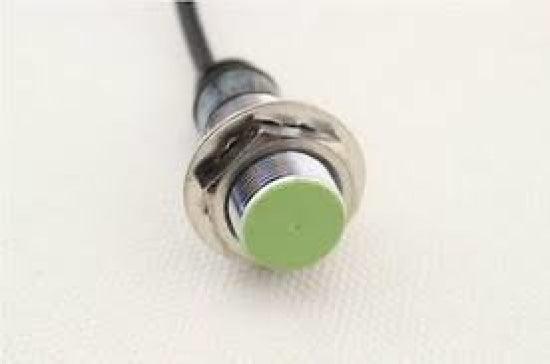

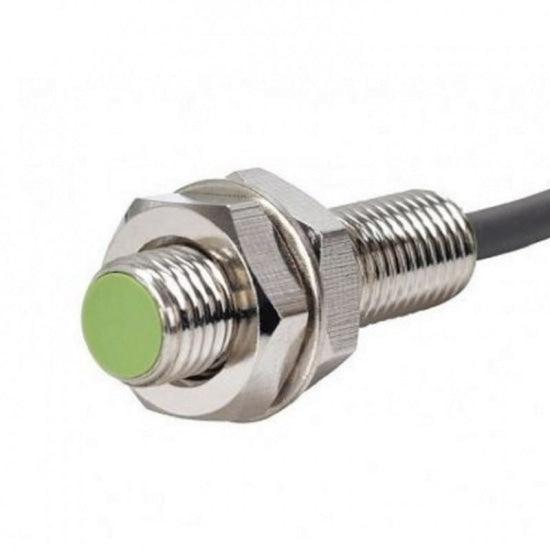

The PR18-5DN from Autonics is a cylindrical inductive Proximity Sensor with pigtail cable. PR Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of diverse range of line-ups in terms of size and sensing distance.

Features:

  • Improved the noise resistance with a dedicated IC.
  • Built-in reverse polarity protection circuit (DC 3-wire type).
  • The built-in surge protection circuit.
  • Built-in overcurrent protection circuit (DC type).
  • Long life cycle and high reliability, and simple operation.
  • IP67 protection structure (IEC standard).
  • Replaceable for micro switches and limit switches.

Specification:

  • OPERATING VOLTAGE (VDC): 10 ~ 30

  • DETECTION DISTANCE (MM): 5

  • OUTER THREAD SIZE: M18

  • OBJECT TYPE: INDUCTIVE

  • OUTPUT TYPE: NPN NORMALLY OPEN THREE-LINE

  • INSTALLATION TYPE: NON-FLUSH (UNSHIELDED)

  • MAX OUTPUT CURRENT: 200 MA

  • SETTING DISTANCE (MM): 0 ~ 3.5




Best Online Shopping website for Cylindrical Proximity Sensor Switch PR18-5DN NPN. Here you get Cylindrical Proximity Sensor Switch PR18-5DN NPN at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakistan.

Package Include:

1 x PR-18 5DN Proximity Sensor NPN in Pakistan

View full details

Description

PR-18 5DN Proximity Sensor NPN in Pakistan BR2632

Description:

The PR18-5DN from Autonics is a cylindrical inductive Proximity Sensor with pigtail cable. PR Series enhance superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of diverse range of line-ups in terms of size and sensing distance.

Features:

  • Improved the noise resistance with a dedicated IC.
  • Built-in reverse polarity protection circuit (DC 3-wire type).
  • The built-in surge protection circuit.
  • Built-in overcurrent protection circuit (DC type).
  • Long life cycle and high reliability, and simple operation.
  • IP67 protection structure (IEC standard).
  • Replaceable for micro switches and limit switches.

Specification:

  • OPERATING VOLTAGE (VDC): 10 ~ 30

  • DETECTION DISTANCE (MM): 5

  • OUTER THREAD SIZE: M18

  • OBJECT TYPE: INDUCTIVE

  • OUTPUT TYPE: NPN NORMALLY OPEN THREE-LINE

  • INSTALLATION TYPE: NON-FLUSH (UNSHIELDED)

  • MAX OUTPUT CURRENT: 200 MA

  • SETTING DISTANCE (MM): 0 ~ 3.5




Best Online Shopping website for Cylindrical Proximity Sensor Switch PR18-5DN NPN. Here you get Cylindrical Proximity Sensor Switch PR18-5DN NPN at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan and all over Pakistan.

Package Include:

1 x PR-18 5DN Proximity Sensor NPN in Pakistan
