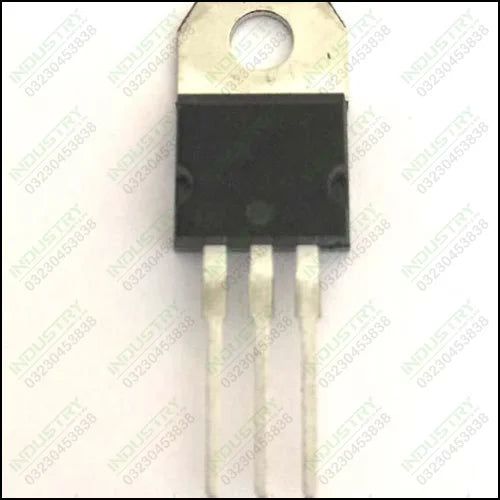

7805 Transistor – 12V, Voltage Regulator LM7805

SKU:BR6797

Regular price Rs 15
Regular price Sale price Rs 15
Sale Sold out

7805 Transistor – 12V, Voltage Regulator LM7805 in Pakistan BR6797

Description

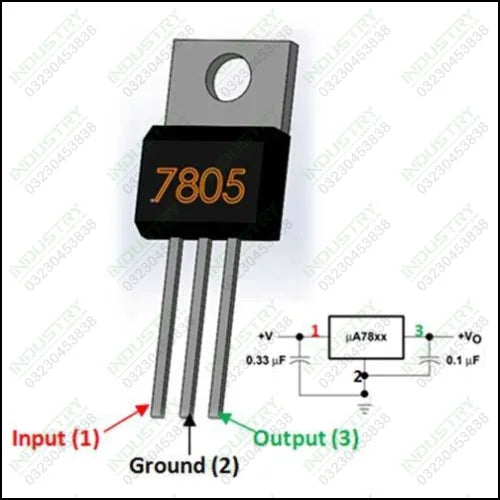

Voltage regulators are very common in electronic circuits. They provide a constant output voltage for a varied input voltage. In our case, the 7805 IC is an iconic regulator IC that finds its application in most of the projects. The name 7805 signifies two meanings, “78” means that it is a positive voltage regulator and “05” means that it provides 5V as output. So our 7805 will provide a +5V output voltage.

The output current of this IC can go up to 1.5A. But, the IC suffers from heavy heat loss hence a Heat sink is recommended for projects that consume more current. For example, if the input voltage is 12V and you are consuming 1A, then (12-5) * 1 = 7W. This 7 Watts will be dissipated as heat.

Features:

  • 5V Positive Voltage Regulator
  • Minimum Input Voltage is 7V
  • The maximum Input Voltage is 25V
  • The operating current(IQ) is 5mA
  • Internal Thermal Overload and Short circuit current limiting protection are available.
  • Junction Temperature maximum 125 degree Celsius
  • Available in TO-220 and KTE package

Brandrethroad.pk is the Best Online Shopping website for 7805 Transistor – 12V, Voltage Regulator  LM7805. Here you get 7805 Transistor – 12V, Voltage Regulator  LM7805 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 X 7805 Transistor – 12V, Voltage Regulator  LM7805
